Normal control

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Each clutch is adjusted to the necessary pressure to match the engine drive force.

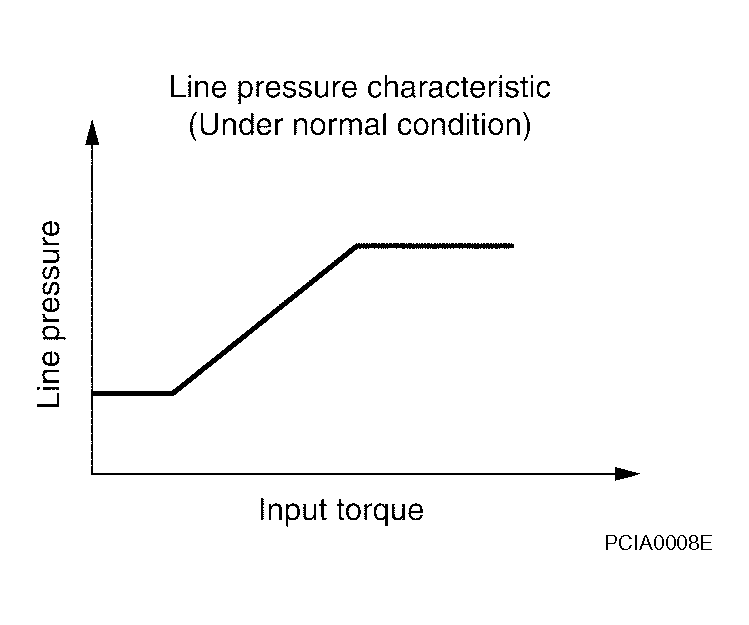

Fig 1: Line Pressure Characteristic - Normal Conditions
G04185742Courtesy of NISSAN MOTOR CO., U.S.A.
