Clutch And Band Chart (Column Shift Models)

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

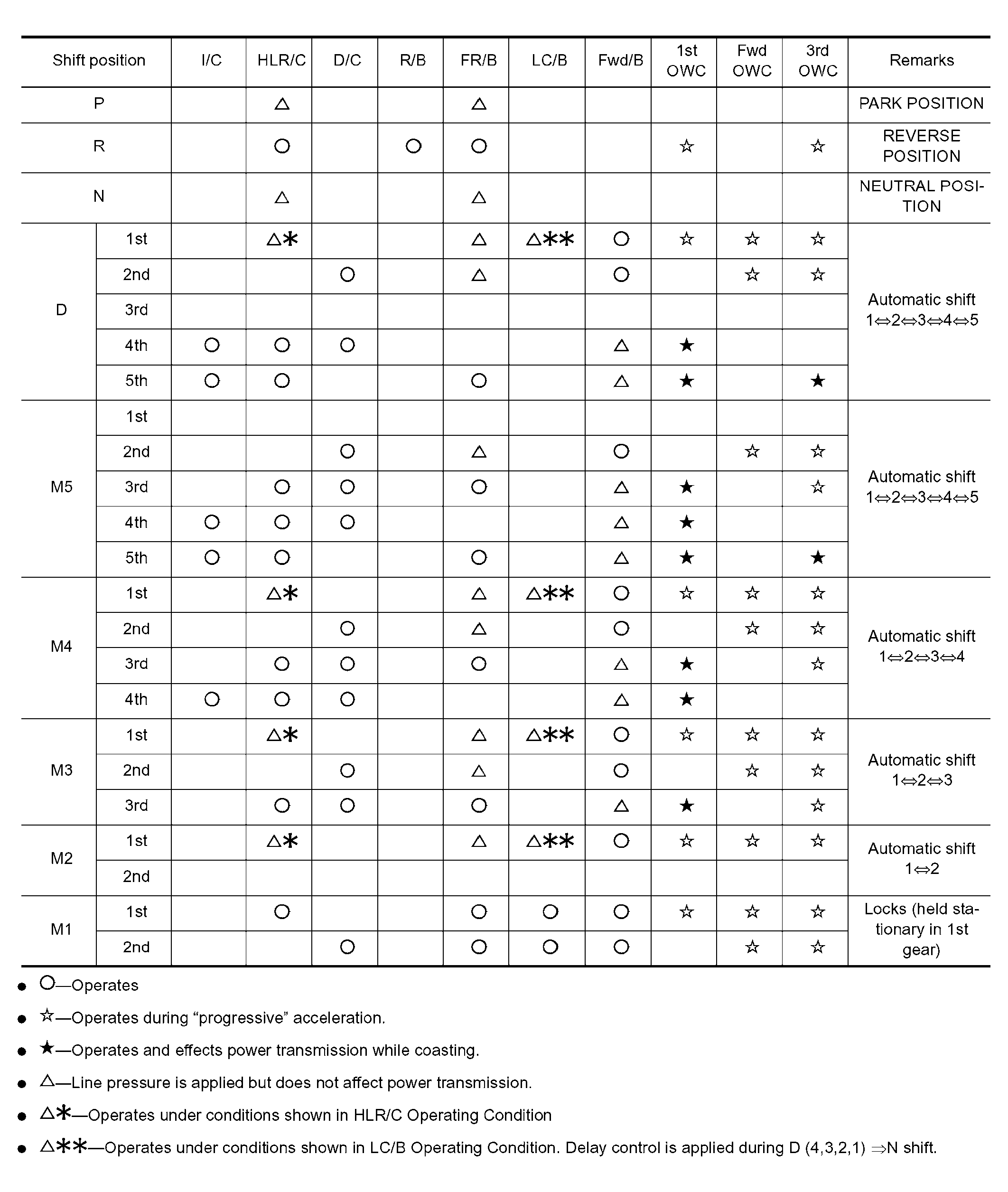

Fig 1: Clutch And Band Chart (Column Shift Models)
G04185728Courtesy of NISSAN MOTOR CO., U.S.A.

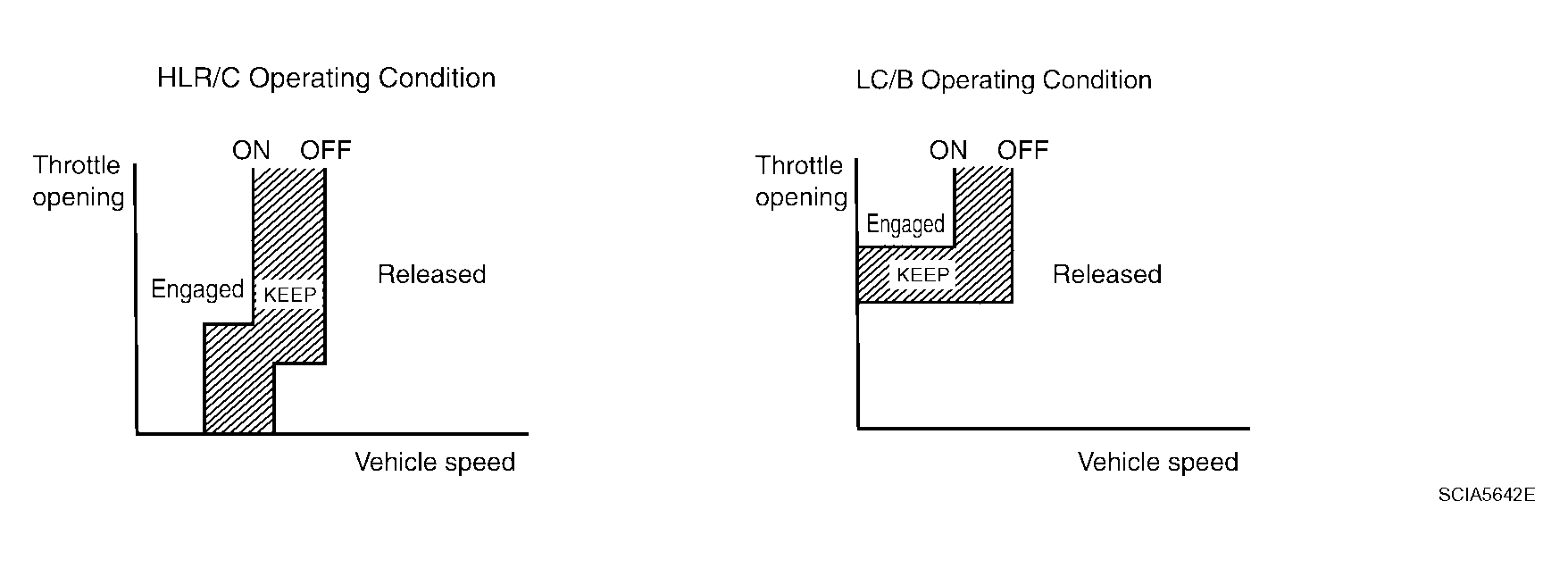

Fig 2: Throttle Opening Angle/Vehicle Speed Graph
G04185729Courtesy of NISSAN MOTOR CO., U.S.A.
