For Key
WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

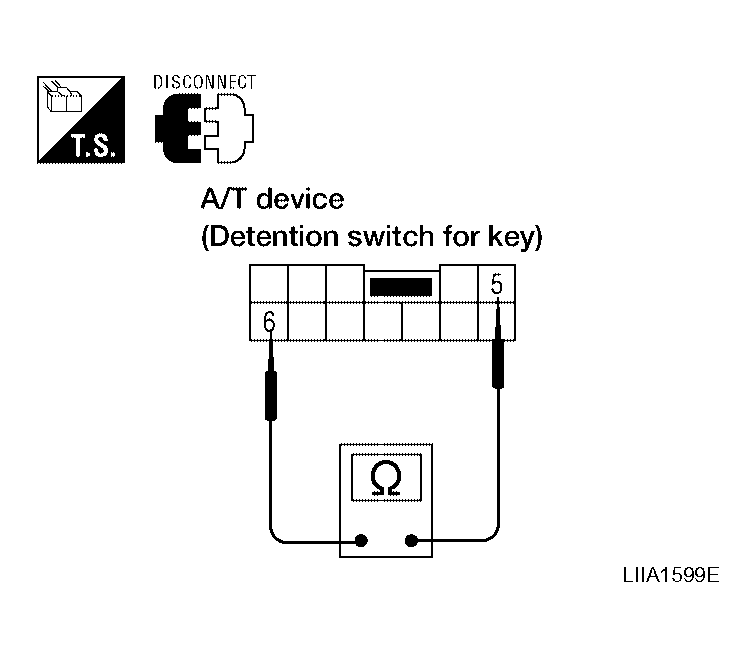

- Check continuity between terminals of the A/T device.
Courtesy of NISSAN MOTOR CO., U.S.A. CONDITION CONTINUITY
| Condition |
Terminal No. |
Continuity |
| When selector lever is "P" position. |
5 - 6 |
No |
| When selector lever is not "P" position. |
Yes |
