Manual Mode Switch
WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

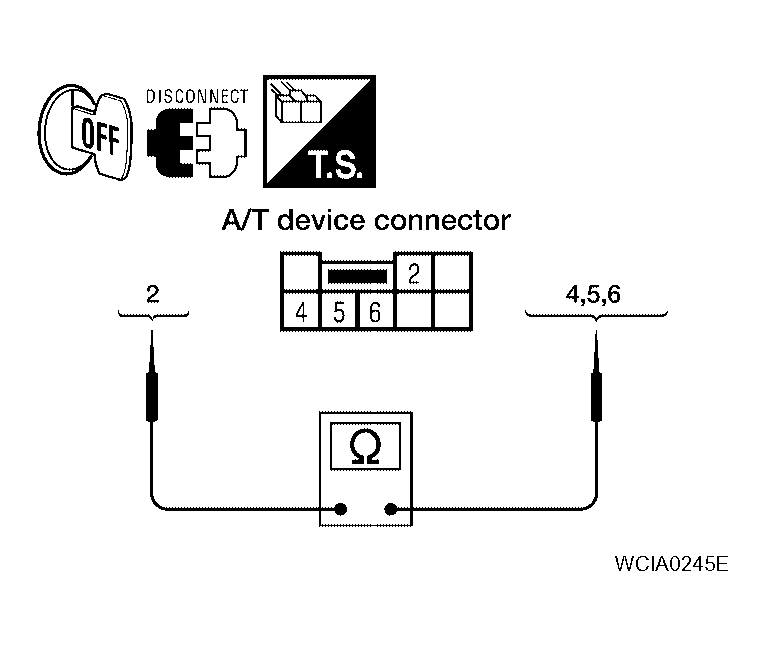

Check continuity between terminals.
Courtesy of NISSAN MOTOR CO., U.S.A. TERMINAL CONTINUITY SPECIFICATION
| Item |
Position |
Terminal No. (Unit side) |
Continuity |
| Manual mode (select) switch |
Manual |
2 - 6 |
Yes |
| UP switch |
UP |
2 - 4 |
| DOWN switch |
DOWN |
2 - 5 |
