Diagnostic Procedure: Notes

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK INPUT SIGNALS (WITH CONSULT-II)
With CONSULT-II
1. Start engine.

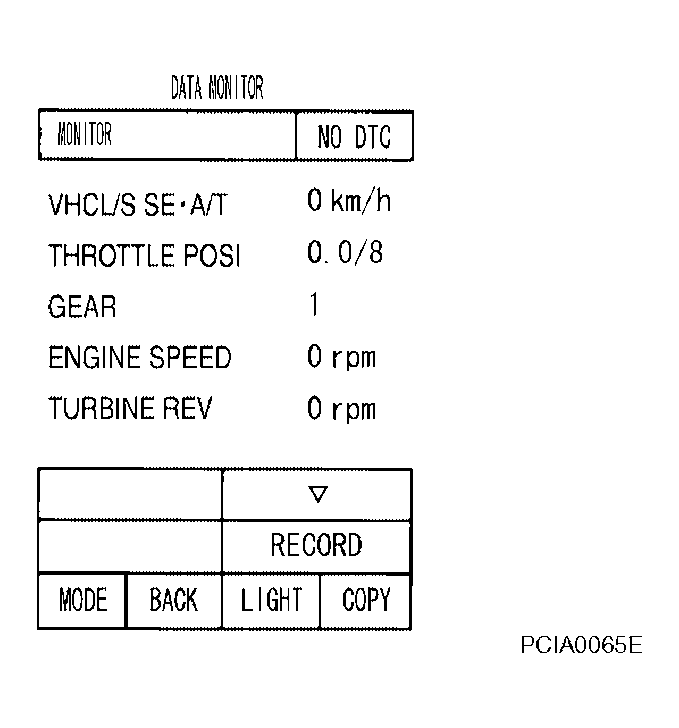

2. Select "MAIN SIGNALS" in "DATA MONITOR" mode for A/T with CONSULT-II and read out the value of "GEAR".
3. Drive vehicle in the manual mode, and confirm that the actual gear position and the meter's indication of the position mutually coincide when the select lever is shifted to the "+ (up)" or "- (down)" side (1st <==> 5th gear).
OK or NG

OK: INSPECTION END

NG: Check the following items.
