Key Interlock Cable: Removal

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

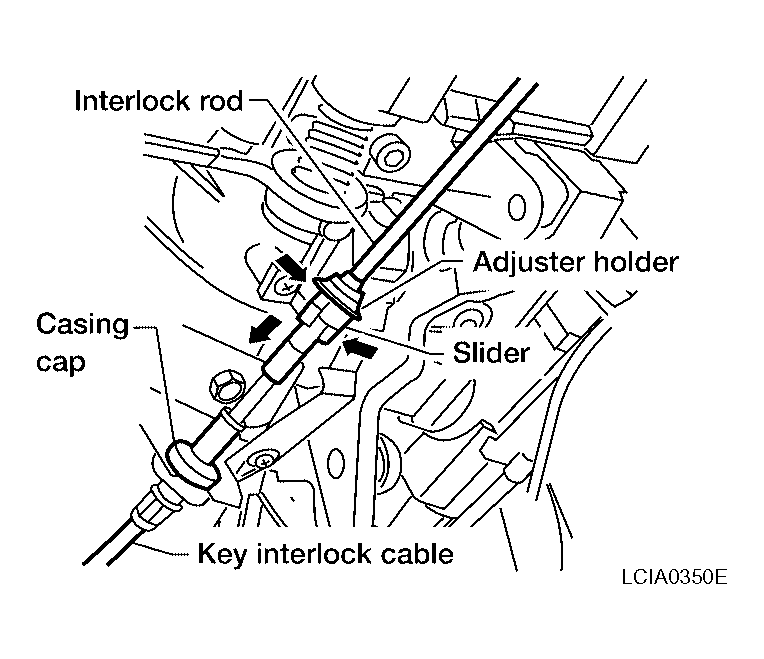

Unlock slider from adjuster holder and remove rod from cable.

Fig 1: Unlocking Slider From Adjuster Holder & Removing Rod From Cable
Courtesy of NISSAN MOTOR CO., U.S.A.

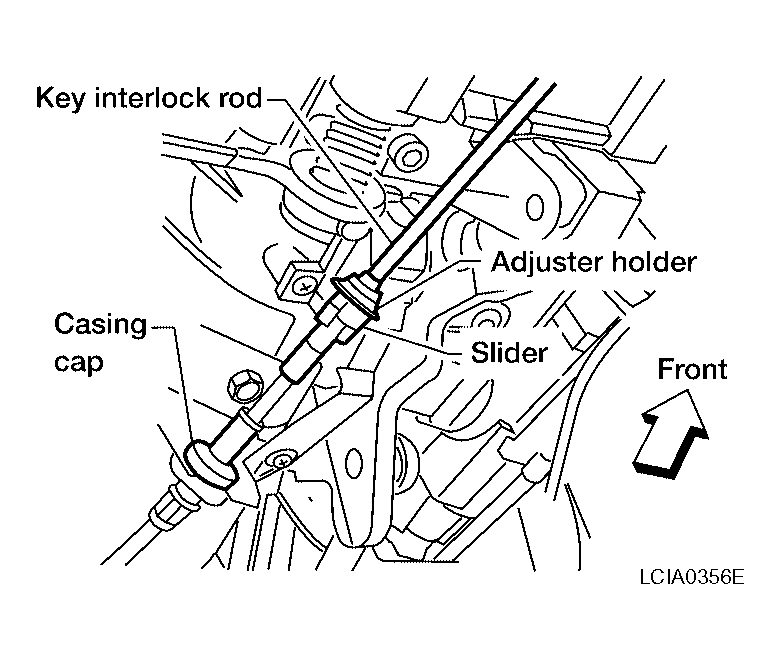

Remove casing cap from bracket.

Fig 2: Removing Casing Cap From Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.

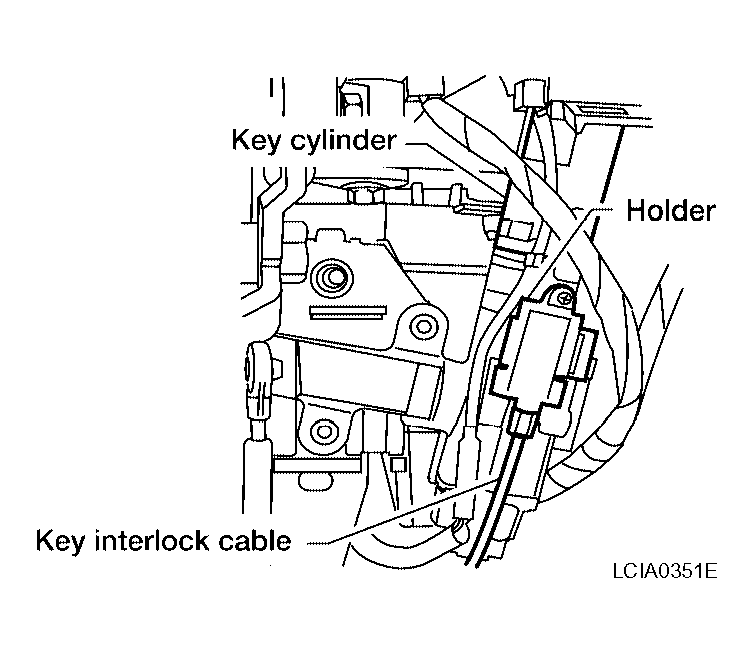

Disconnect the holder from the key cylinder and remove the key interlock cable.

Fig 3: Disconnecting Holder From Key Cylinder & Removing Key Interlock Cable
Courtesy of NISSAN MOTOR CO., U.S.A.
