Control Valve, TCM and A/T Fluid Temperature Sensor 2: Components

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

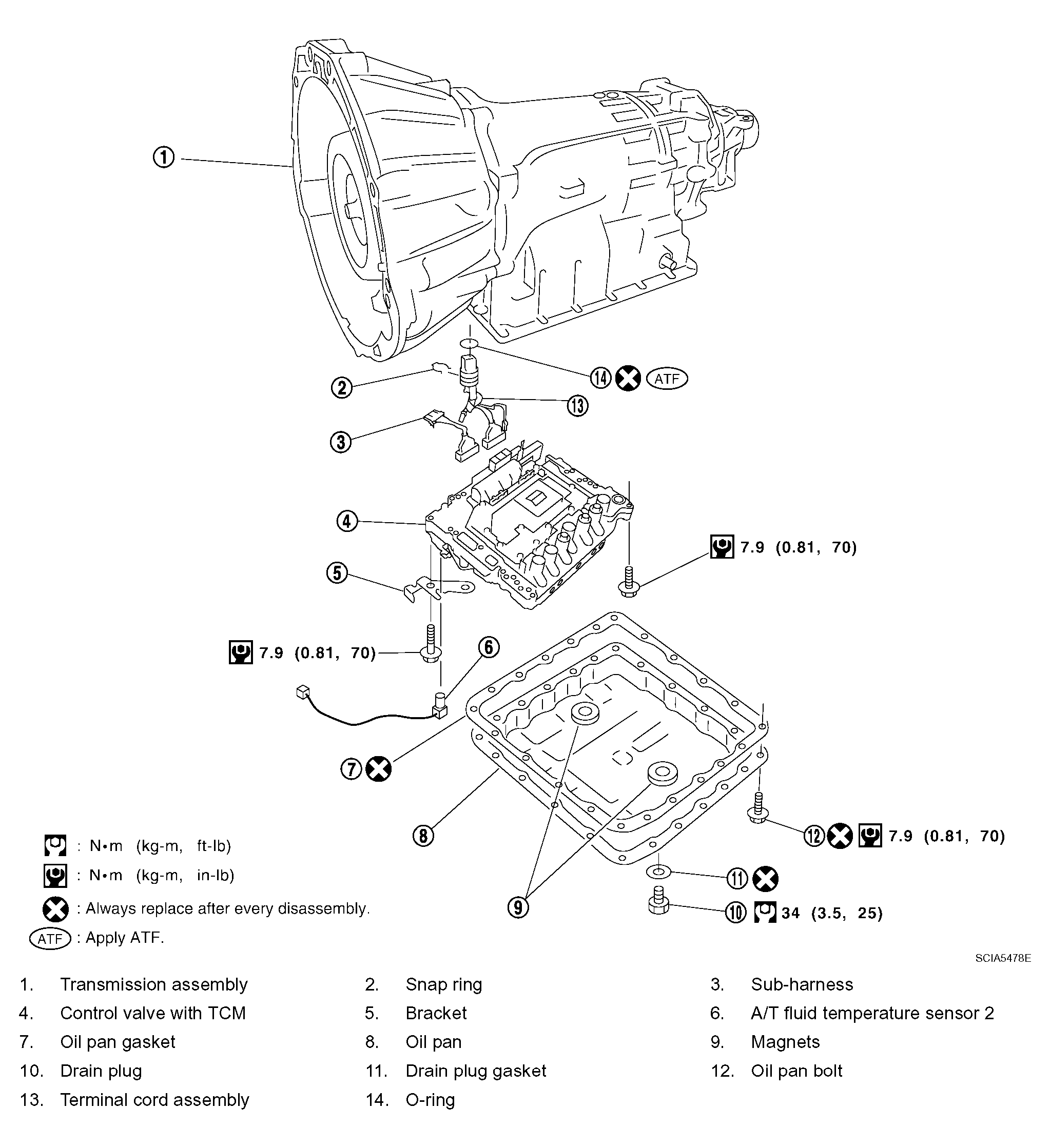

Fig 1: Control Valve With TCM And A/T Fluid Temperature Sensor 2 And Replacement Components With Torque Specifications
G04185998Courtesy of NISSAN MOTOR CO., U.S.A.
