TCM Inspection Table
WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Data are reference value and are measured between each terminal and ground.
TCM INSPECTION
| Terminal No. | Wire color | Item | Condition | Data (Approx.) | |||||
|---|---|---|---|---|---|---|---|---|---|
| 1 | P | Power supply (Memory back-up) | Always | Battery voltage | |||||
| 2 | P | Power supply (Memory back-up) | Always | Battery voltage | |||||
| 3 | L | CAN-H | - | - | |||||
| 4 | V | K-line (CONSULT-II signal) | The terminal is connected to the data link connector for CONSULT-II. | - | |||||
| 5 | B | Ground | Always | 0V | |||||

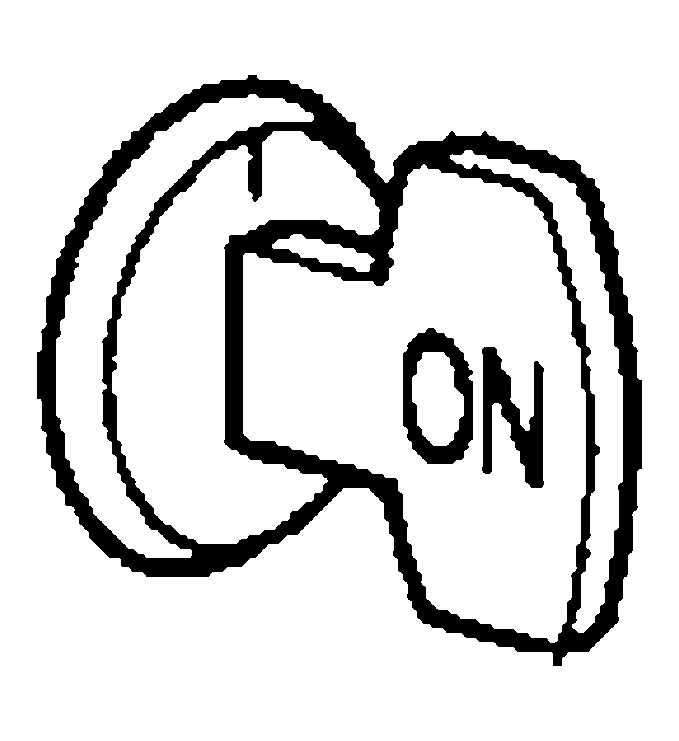

| 6 | BR (1) Y/R (2) |
Power supply | - | Battery voltage | |||||

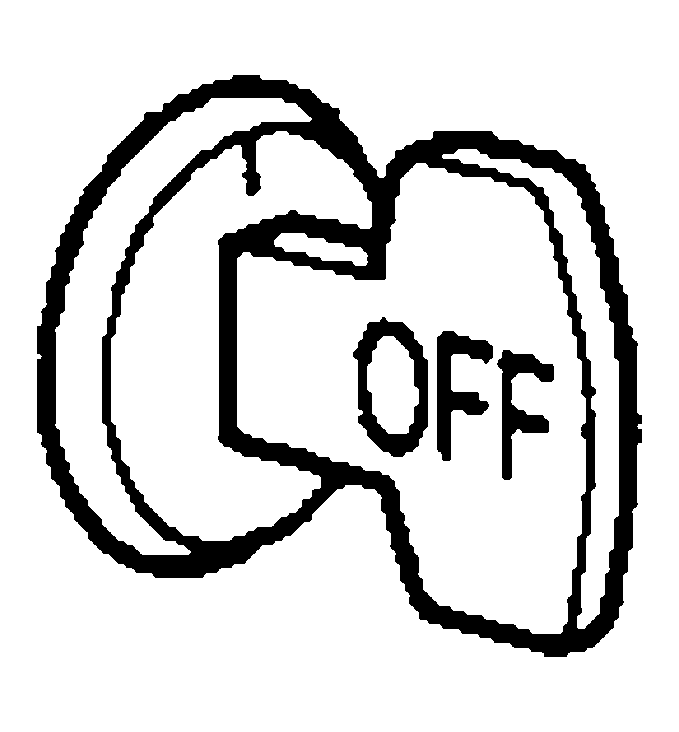

| - | 0V | ||||||||
| 7 | R | Back-up lamp relay | Selector lever in "R" position. | 0V | |||||
| Selector lever in other positions. | Battery voltage | ||||||||
| 8 | P | CAN-L | - | - | |||||
| 9 | B/R | Starter relay | Selector lever in "N"," P" positions. | Battery voltage | |||||
| Selector lever in other positions. | 0V | ||||||||
| 10 | B | Ground | Always | 0V | |||||
|
|||||||||
