Special Service Tools
WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
SPECIAL SERVICE TOOL DESCRIPTION
| Tool number (Kent-Moore No.) Tool name |
Description | |
|---|---|---|

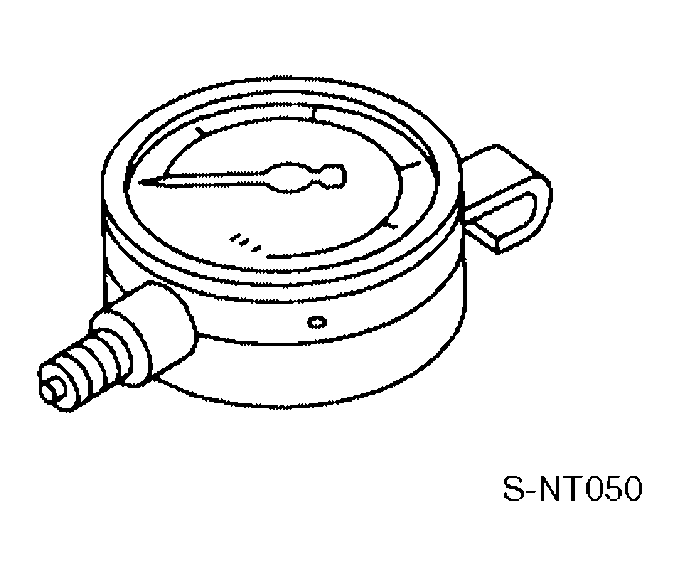

| ST25051001 (J-25695-1) Oil pressure gauge |
Measuring oil pressure Maximum measuring range: 2,452 kPa (25 kg/cm2 , 356 psi) |
|

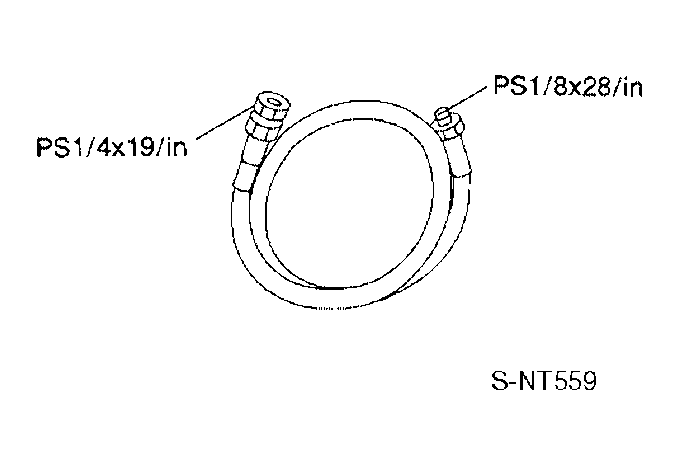

| ST25052000 (J-25695-2) Hose |
Adapting oil pressure gauge to cylinder block | |
| KV10111100 (J-37228) Seal cutter |
Removing steel oil pan and rear timing chain case | |

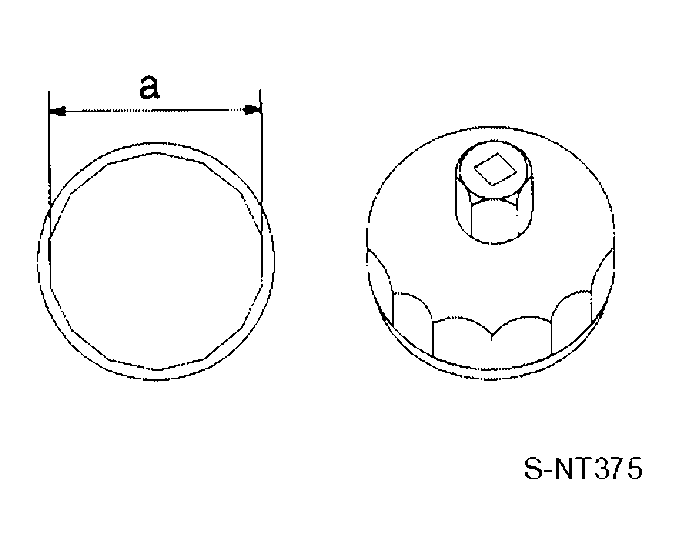

| KV10115801 (J-38956) Oil filter wrench |
Removing and installing oil filter a: 64.3 mm (2.531 in) |
|

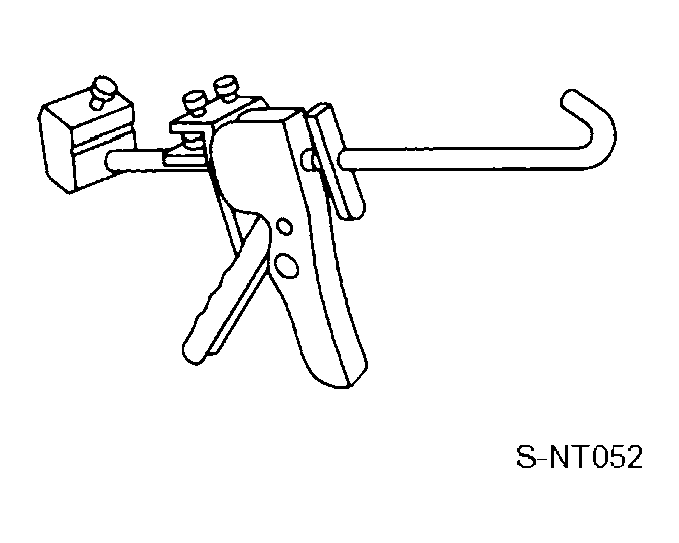

| WS39930000 ( - ) Tube presser |
Pressing the tube of liquid gasket |
