Removal and Installation: Notes

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

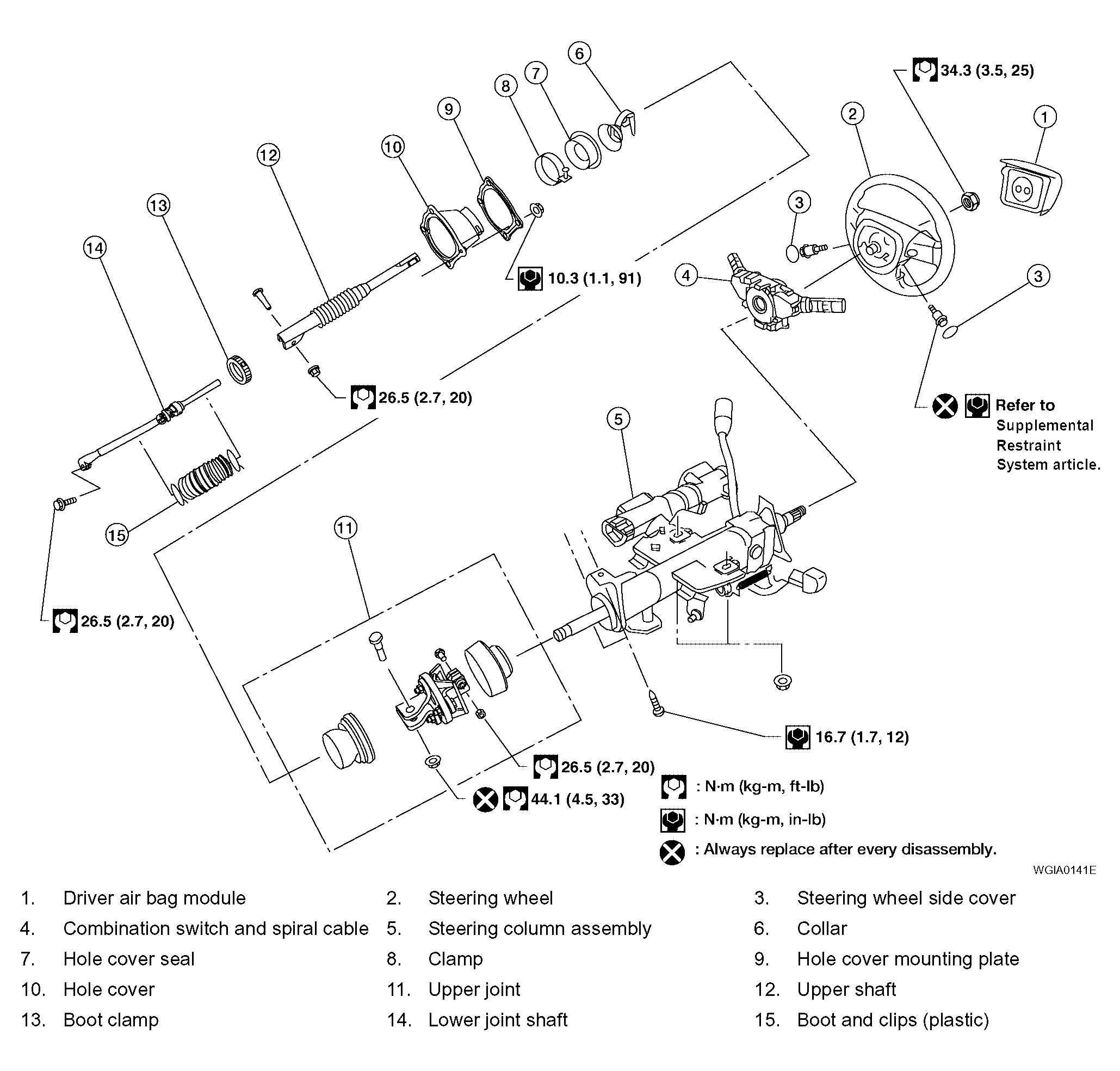

Fig 1: Steering Column And Replacement Components - Column Shift Model With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

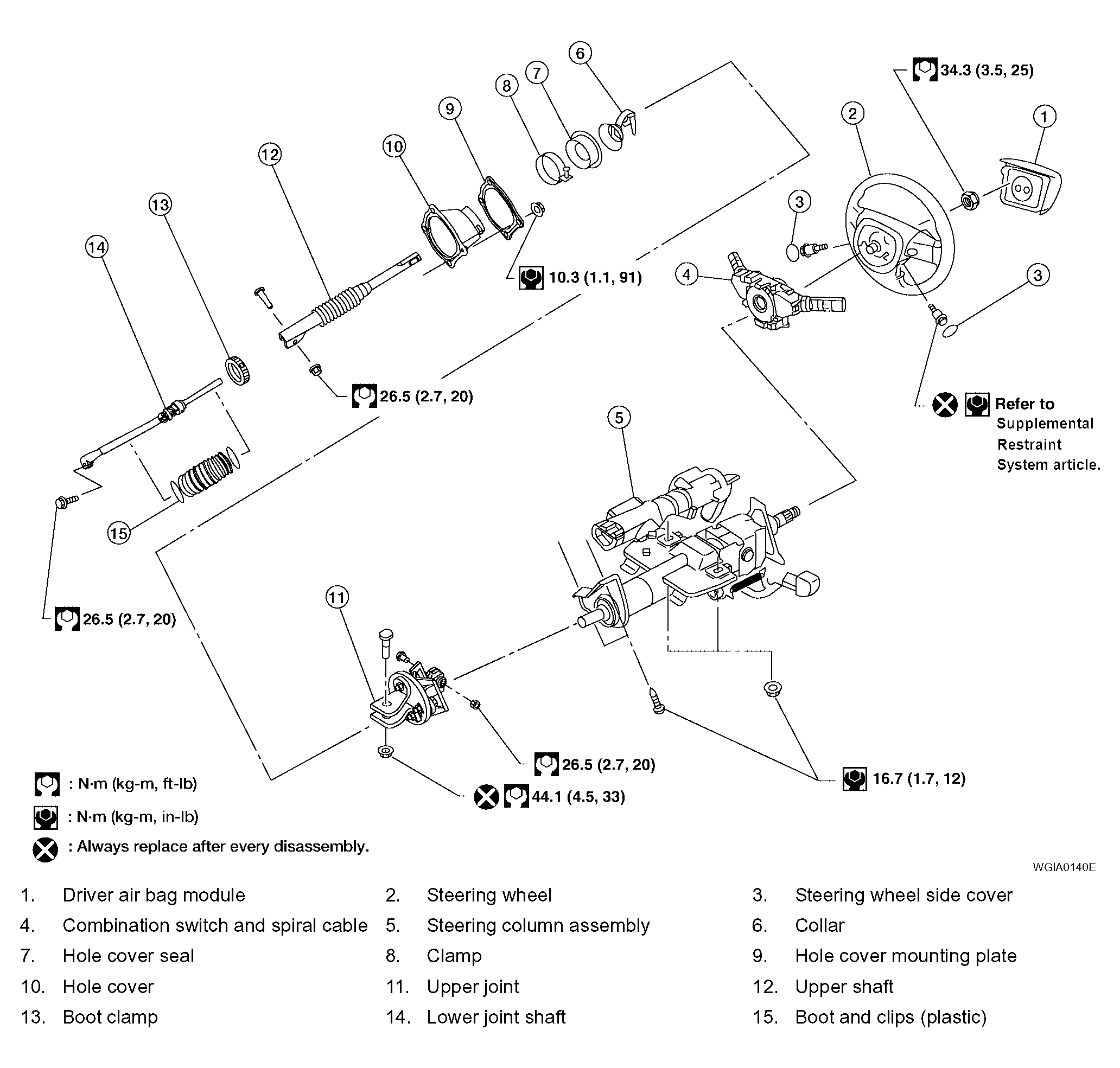

Fig 2: Steering Column And Replacement Components - Floor Shift Model With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Care must be taken not to give axial impact to steering column assembly during removal and installation.
Care must be taken not to move steering gear during removal of steering column assembly.
