Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Apply ATF to periphery of new metal bushing, then install the new metal bushing until it becomes dimension "A", using Tool.
Dimension A: 7.7 - 8.3mm (0.303 - 0.327in)

Tool number: ST35300000 ( - )

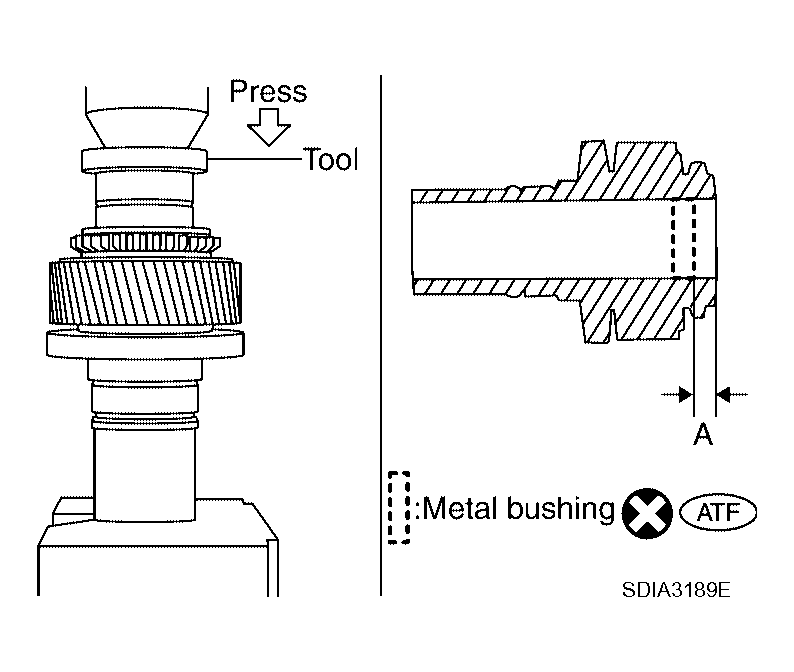

Fig 1: Installing Metal Bushing
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not reuse metal bushing.
Apply ATF to new needle bearing, then install the new needle bearing until it becomes dimension "B", using Tool.
Dimension B: 62.5 - 63.1mm (2.461 - 2.484in)

Tool number: ST33220000 ( - )

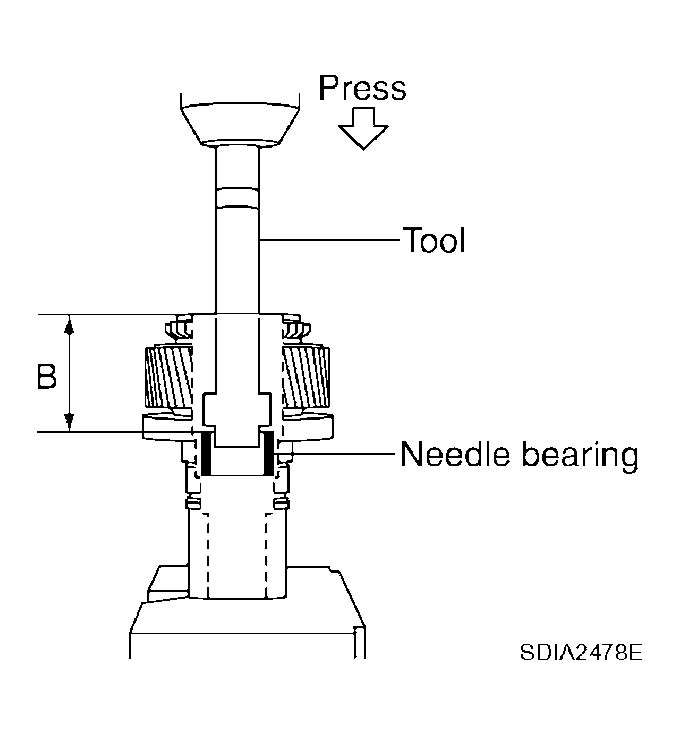

Fig 2: Installing Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not reuse needle bearing.
Install the carrier bearing to sun gear, using Tools.
Tool number A: ST30720000 (J-25405)

B: ST27863000 ( - )

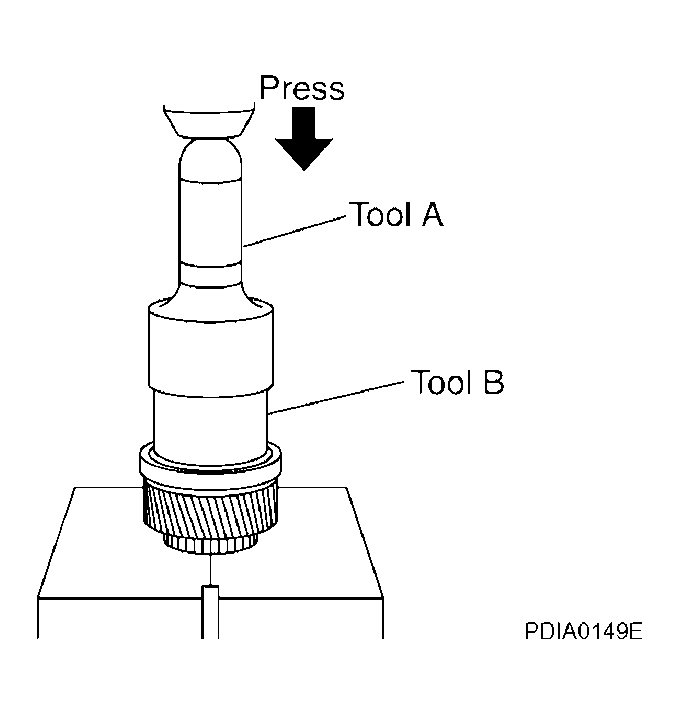

Fig 3: Installing Carrier Bearing To Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Install new snap ring to sun gear assembly, using suitable tool.
CAUTION: Do not reuse snap ring.

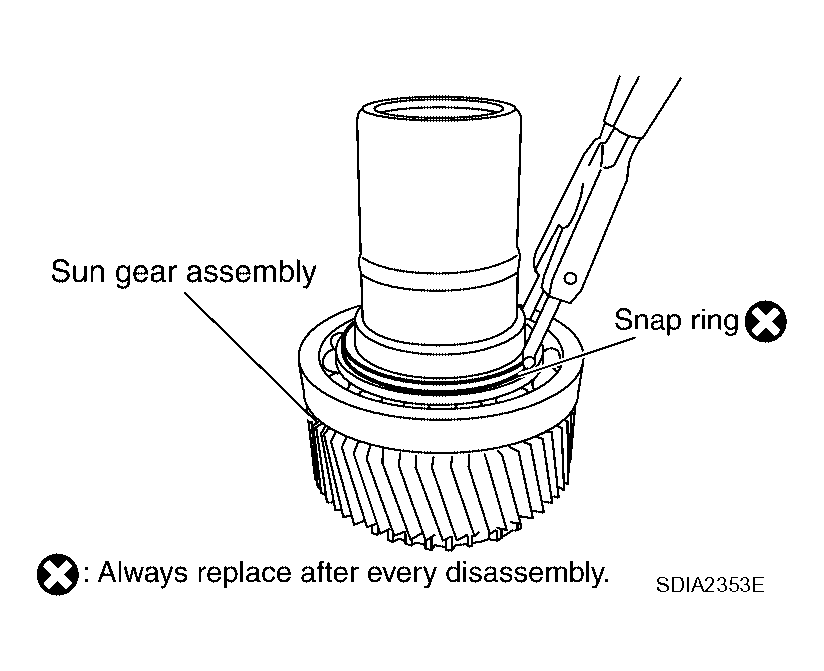

Fig 4: Installing Snap Ring To Sun Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install sun gear assembly to planetary carrier assembly.
Install new snap ring to planetary carrier assembly.
CAUTION: Do not reuse snap ring.

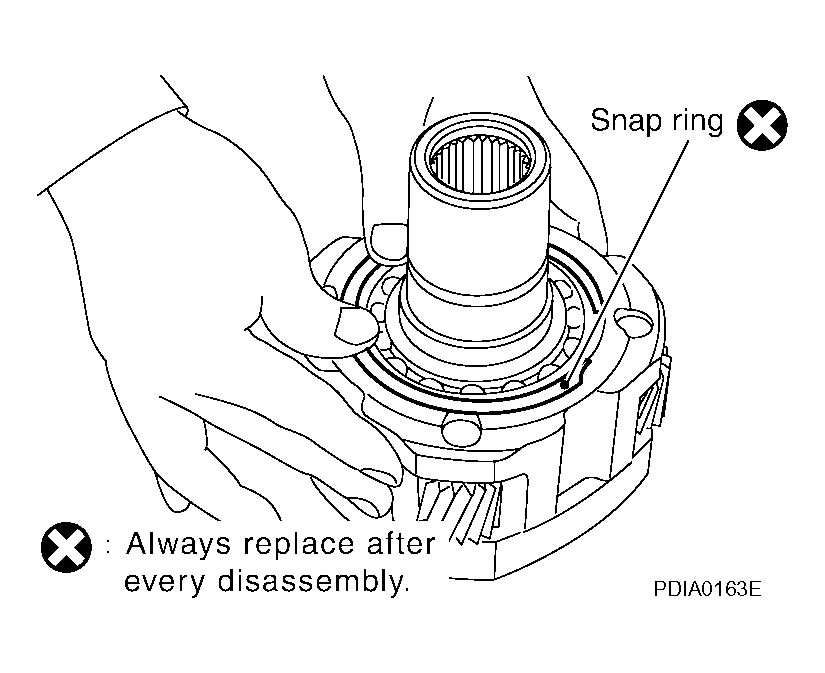

Fig 5: Installing Snap Ring To Planetary Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
