Transfer Fluid: Replacement: Draining

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Stop engine.
Remove the drain plug and gasket. Drain the fluid.
Install the drain plug with a new gasket to the transfer. Tighten to specification.

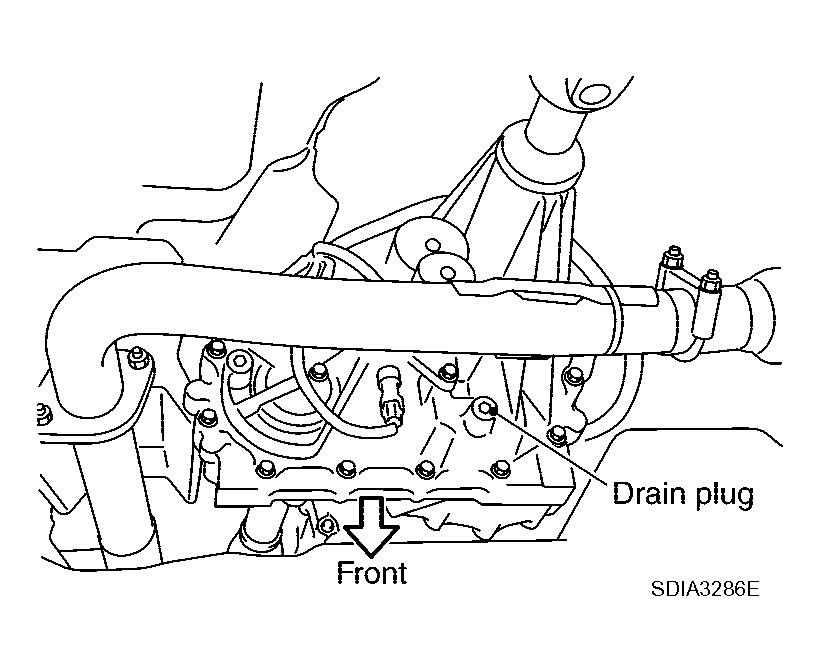

Fig 1: Identifying Drain Plug
Courtesy of NISSAN MOTOR CO., U.S.A.

Drain plug: Refer to " COMPONENTS ".

CAUTION: Do not reuse gasket.
