Special Service Tools

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

SPECIAL SERVICE TOOLS SPECIFICATIONS

Tool number (Kent-Moore No.) Tool name Description

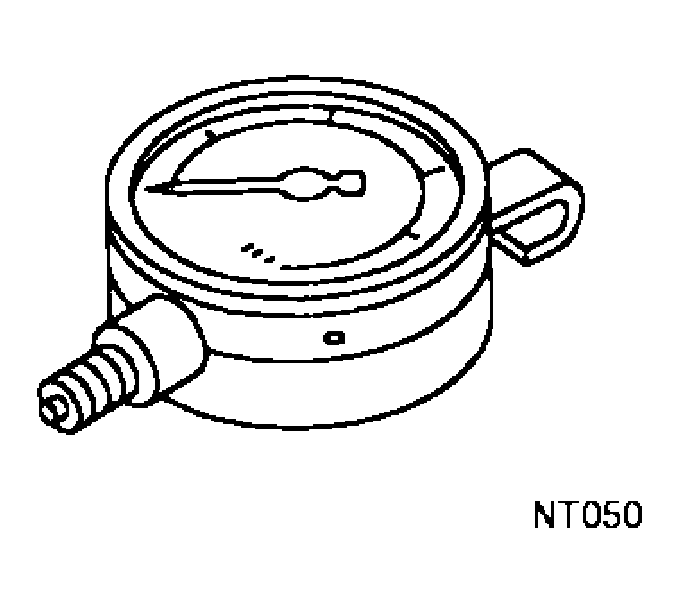

ST25051001 (J-25695-1) Oil pressure gauge
G04172929
Measuring oil pressure
Maximum measuring range: 2,452 kPa (25 kg/cm 2  , 356 psi)

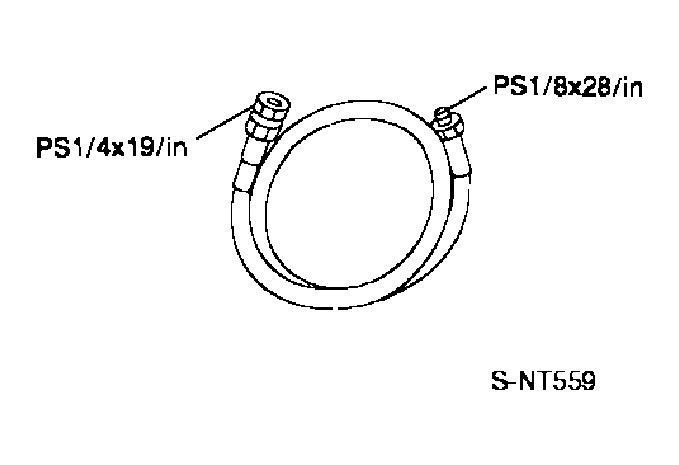

ST25052000 (J-25695-2) Hose
G04172930
Adapting oil pressure gauge to oil pan (upper)

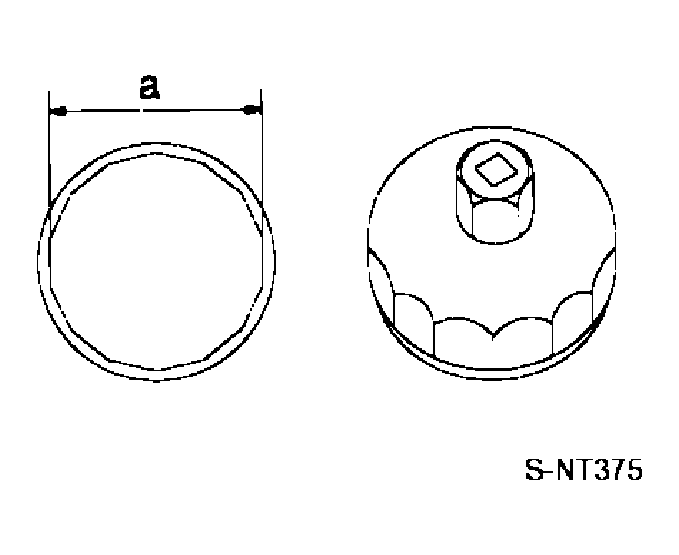

KV10115801 (J-38956) Oil filter wrench
G04172931
Removing oil filter
a: 64.3 mm (2.531 in)

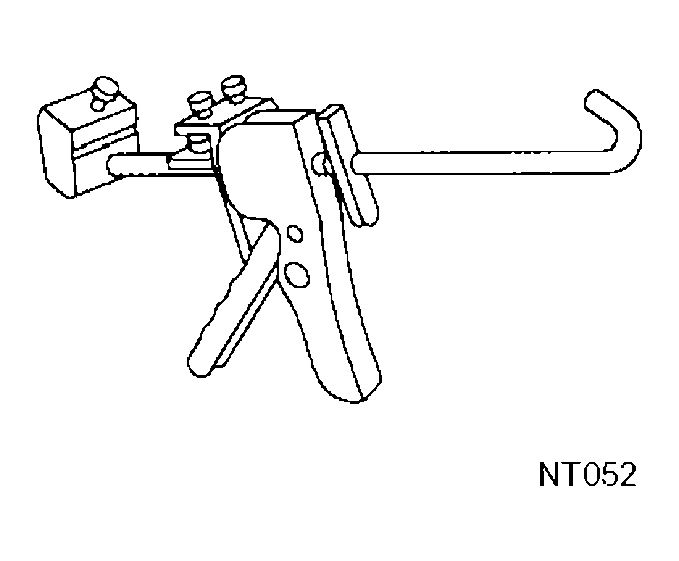

WS39930000 ( - ) Tube presser
G04073461
Pressing the tube of liquid gasket
