Side Shaft

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain gear oil, if necessary.
  2. Remove side oil seal.
    CAUTION: Do not damage gear carrier.

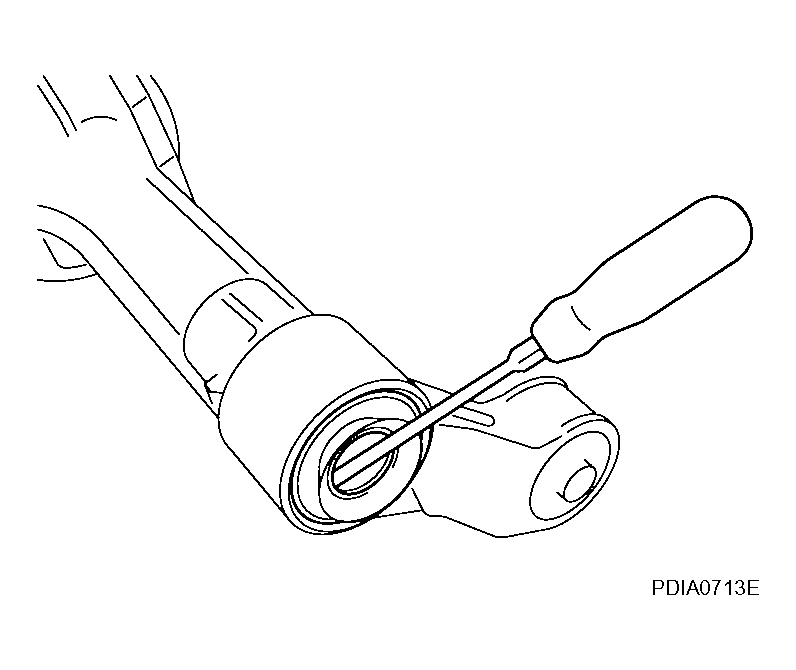

    Fig 1: Identifying Side Oil Seal
    G04175081Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove snap ring (hole side) using suitable tool.

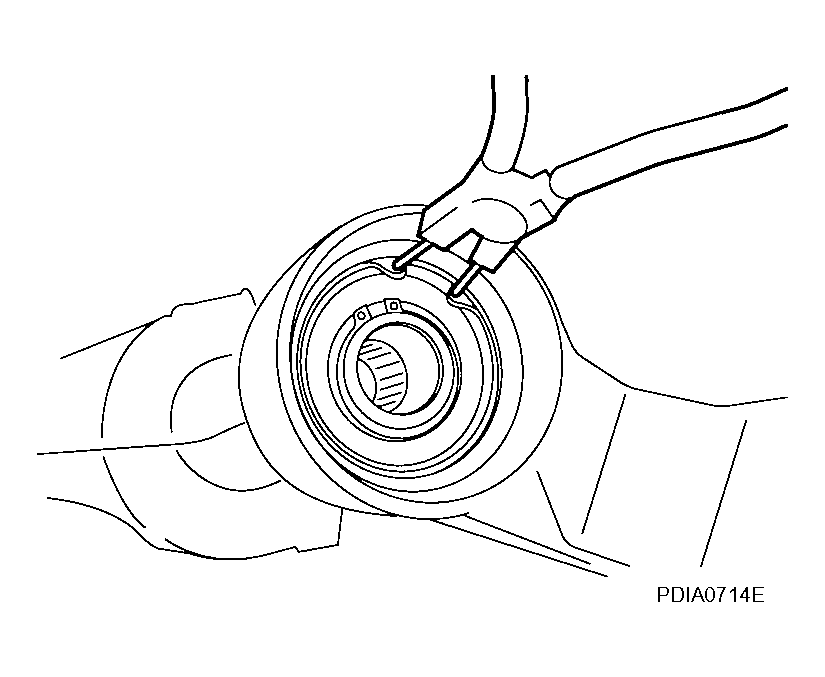

    Fig 2: Removing Snap Ring (Hole Side) Using Suitable Tool
    G04175082Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove side shaft assembly out of gear carrier using suitable tool.
    NOTE: Tap on side shaft assembly from side gear side.
  5. Remove snap ring (shaft side).

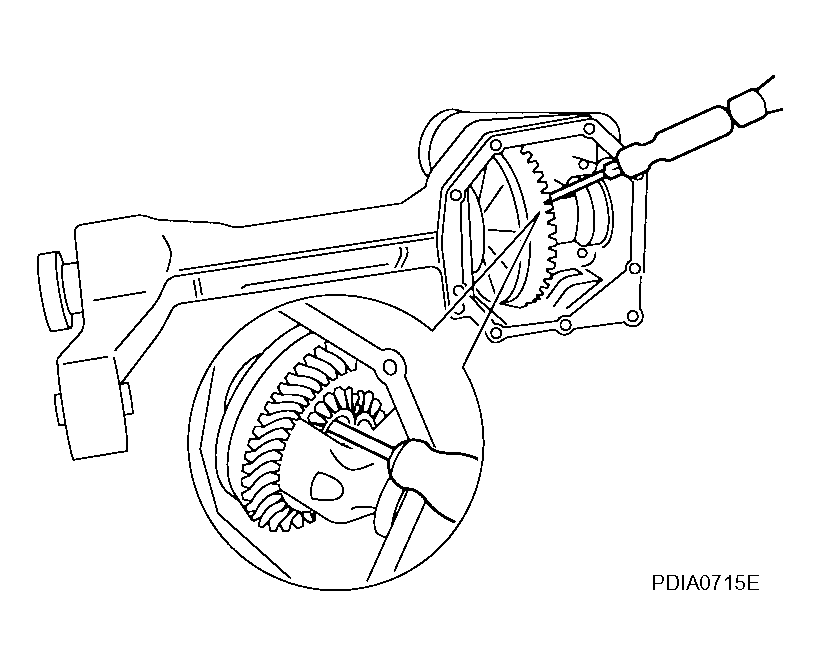

    Fig 3: Removing Side Shaft Assembly Out Of Gear Carrier Using Suitable Tool
    G04175083Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Press side shaft out of side shaft bearing.
    CAUTION: Do not drop side shaft.

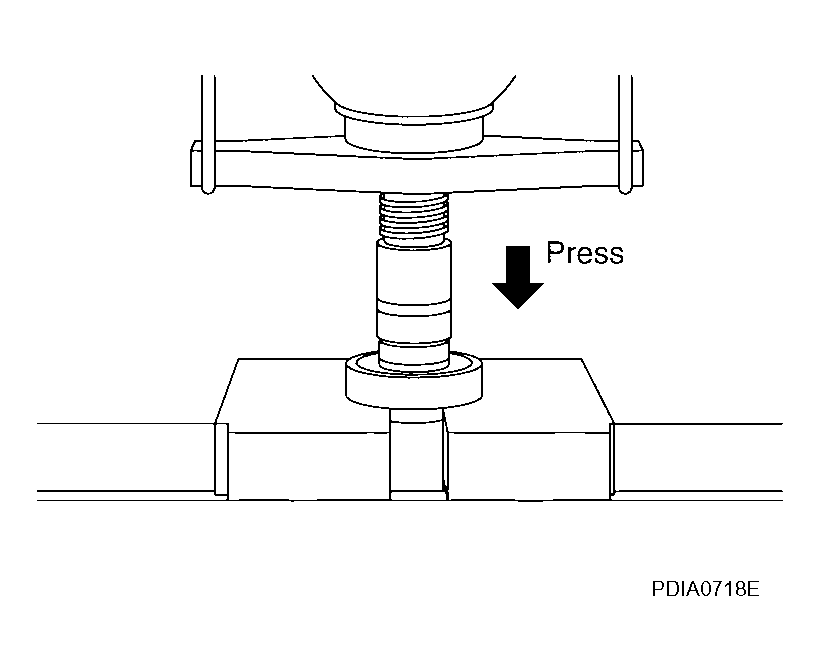

    Fig 4: Pressing Side Shaft Out Of Side Shaft Bearing
    G04175084Courtesy of NISSAN MOTOR CO., U.S.A.
