Special Service Tools (SST)

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

SPECIAL SERVICE TOOLS (SST)

Tool number (Kent-Moore No.) Tool name Description

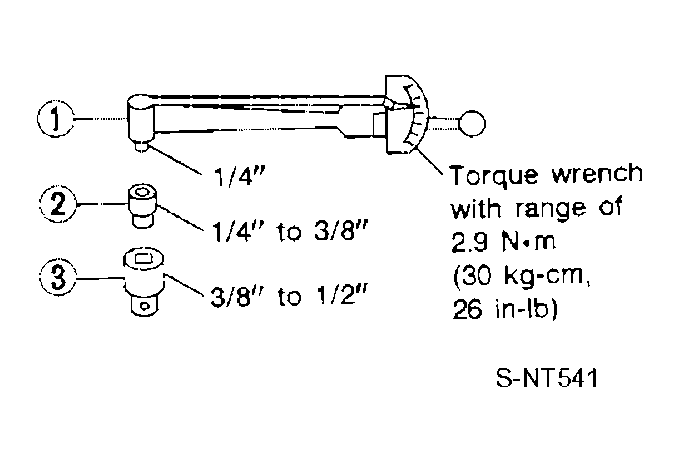

ST3127 S000 (See J-25765-A) Preload gauge
  1. GG9103000 (J-25765-A) Torque wrench
  2. HT62940000 ( - ) Socket adapter
  3. HT62900000 ( - ) Socket adapter
G04175594
 Inspecting of pinion rotating torque and rotational torque for ball joint

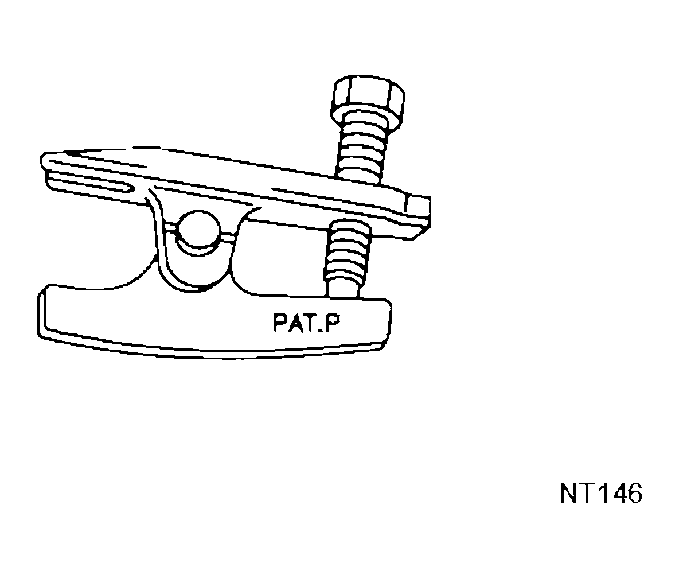

HT72520000 (J-25730-A) Ball joint remover
G04175595
 Removing steering outer socket

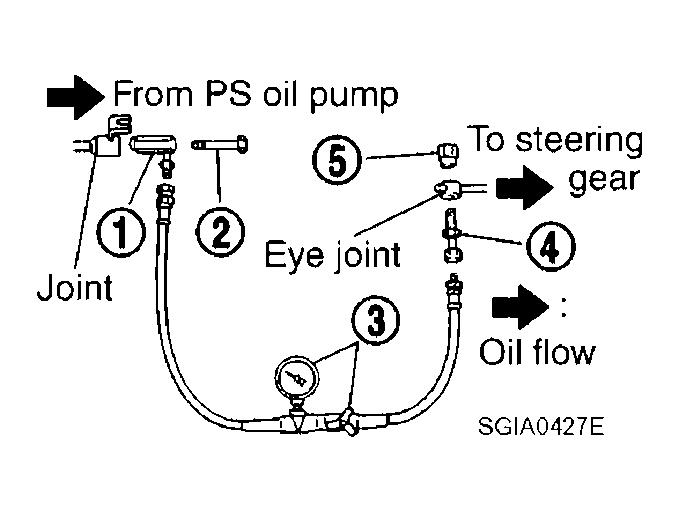

  1. KV48105300-4 and 5295262U10 ( - ) Connector A and O-ring
  2. KV48105300-3 and 5295262U00 ( - ) Eye-bolt and O-ring
  3. KV48103500 (J-26357 and J-26357-10) Pressure gauge and shut-off valve
  4. KV48105300-1 and 5295262U00 ( - ) Connector B and O-ring
  5. KV48105300-2 ( - ) Nut
G04175596
 Measuring oil pump relief pressure

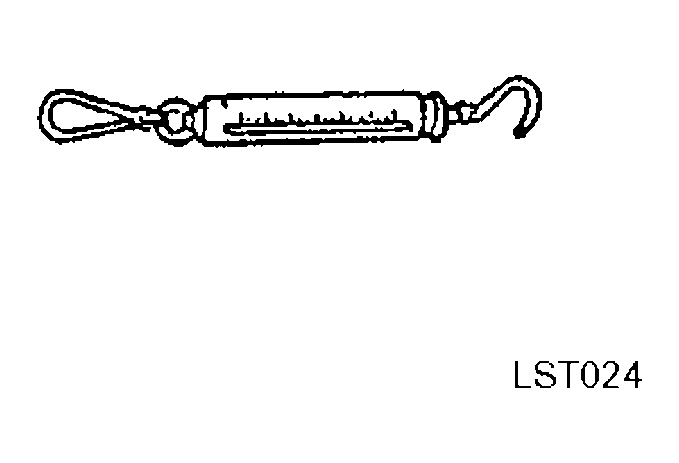

-(J-44372) Spring gauge
G04175597
 Measuring steering wheel turning force

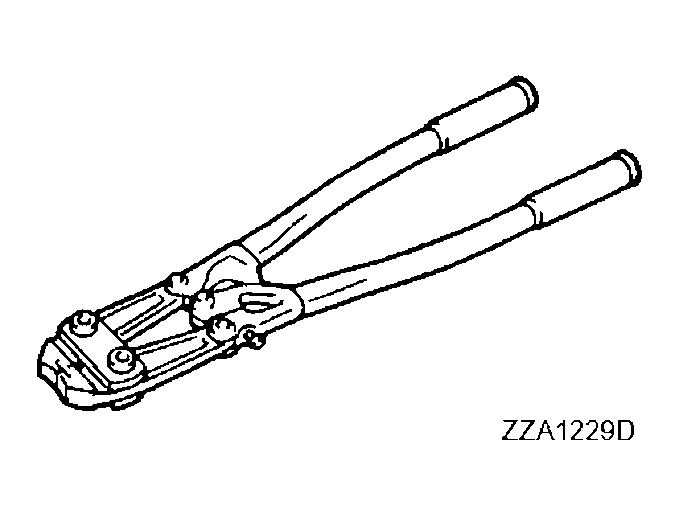

KV40107300 ( - )
G04175598
 Crimping boot bands

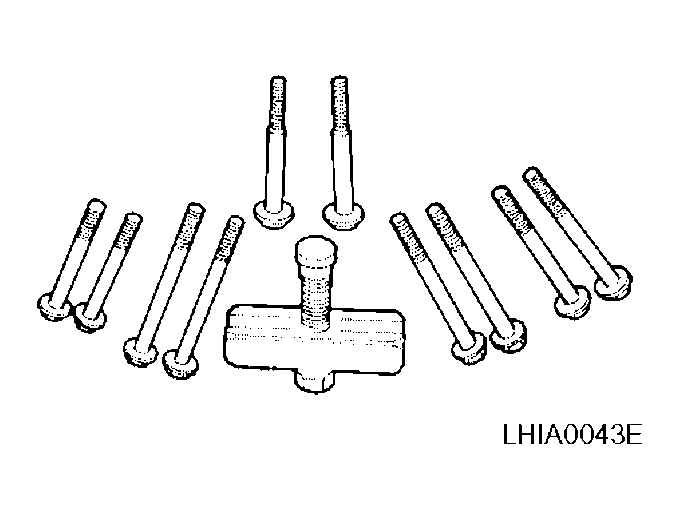

KV481J0010 (J-1859A) Steering wheel puller
G04175599
 Removing steering wheel

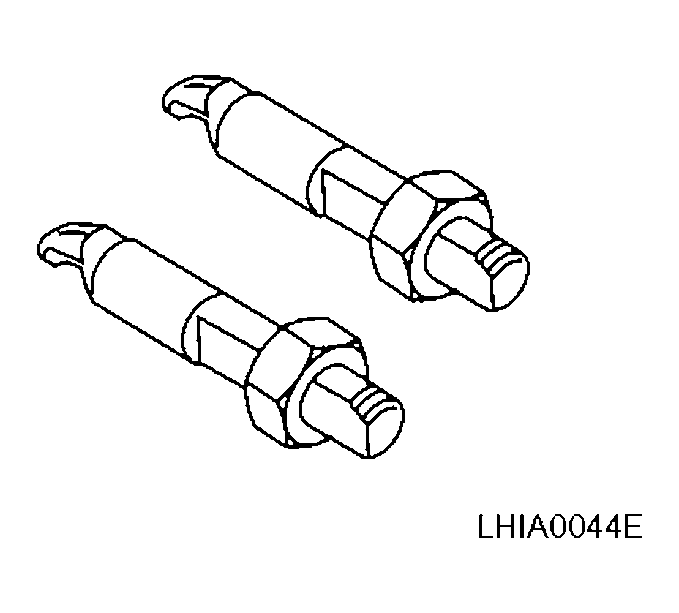

KV481J0020 (J-42578) Steering wheel puller legs
G04175600
 Removing steering wheel
