ECM Circuit Inspection

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side and harness side).
- ECM connector
- Harness connector E2
- Harness connector F32
OK or NG

OK : GO TO 2.

NG : Repair terminal or connector.

CHECK HARNESS FOR OPEN CIRCUIT

Disconnect ECM connector.
Check resistance between ECM harness connector terminals.

TERMINAL CONNECTOR CONTINUITY CHART

ECM connector	Terminal		Resistance (Approx.)
E16	94	86	108 - 132 ohm

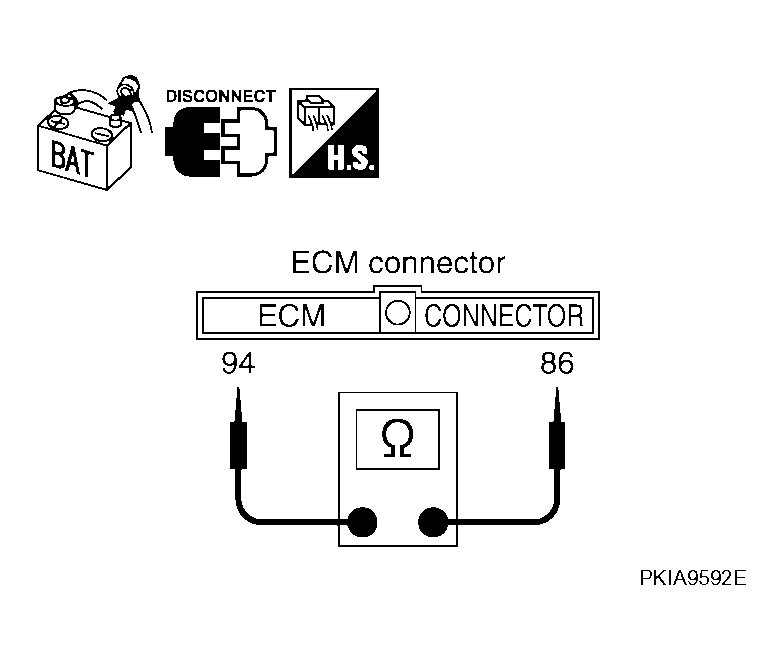

Fig 1: Checking Resistance Between ECM Harness Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Replace ECM.

NG : Repair harness between ECM and A/T assembly.
