Operation Procedure

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.
  2. Touch either "MAIN SIGNALS" or "SELECTION FROM MENU" on the "DATA MONITOR" screen.
    MAIN SIGNALS REFERENCE CHART

    MAIN SIGNALS Monitors main signals.
    SELECTION FROM MENU Selects and monitors individual signal.
  3. Touch "START".
  4. When "SELECTION FROM MENU" is selected, touch individual tems to be monitored. When "MAIN SIGNALS" is selected, main items will be monitored.
  5. Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop recording, touch "STOP".

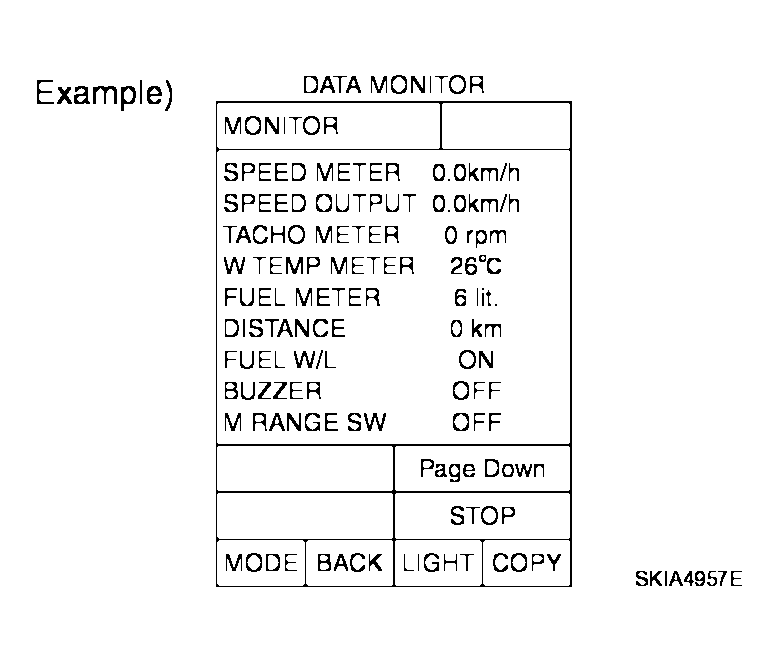

    Fig 1: CONSULT-II Display - Data Monitor
    G04177052Courtesy of NISSAN MOTOR CO., U.S.A.
