Special Service Tool
WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
SPECIAL SERVICE TOOL
| Tool number (Kent-Moore No.) Tool name |
Description | |
|---|---|---|
| KV991J0080 (J-45741) ABS active wheel sensor tester |
Checking operation of ABS active wheel sensors | |
| ST30031000 ( - ) Bearing puller |
Removing sensor rotor | |

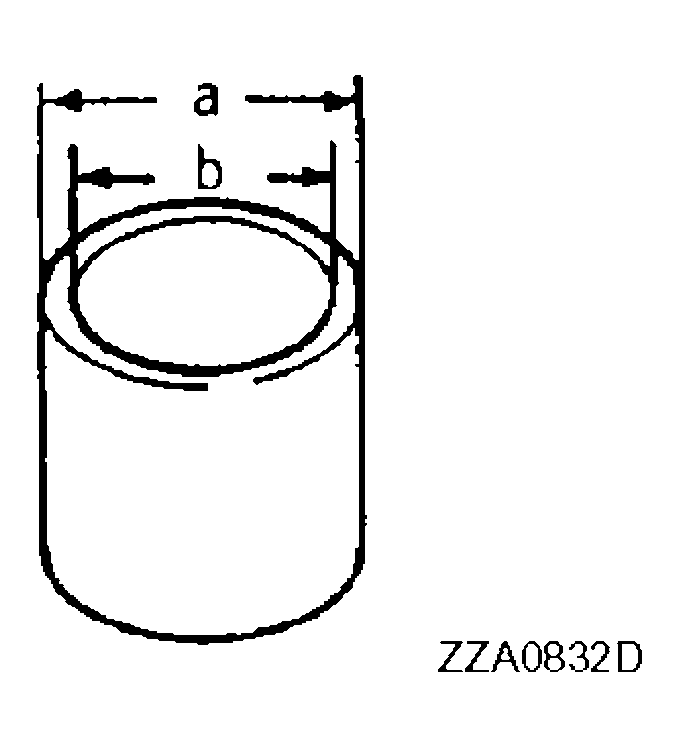

| ST30720000 (J-25405) Drift |
Installing rear sensor rotor a: 77 mm (0.03 in) dia. b: 55 mm (2.17 in) dia. |
|

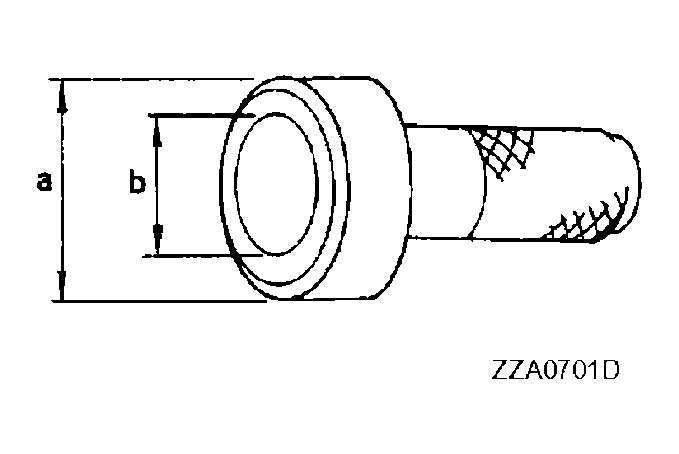

| ST27863000 ( - ) Drift |
Installing rear sensor rotor a: 75 mm (2.95 in) dia. b: 62 mm (2.44 in) dia. |
|
| KV40104710 ( - ) Drift |
Installing rear sensor rotor a: 76 mm (2.99 in) dia. b: 68.5 mm (2.697 in) dia. |
|
