Pin Voltage Tests

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For PIN voltage charts, see Fig 1 -Fig 3 .

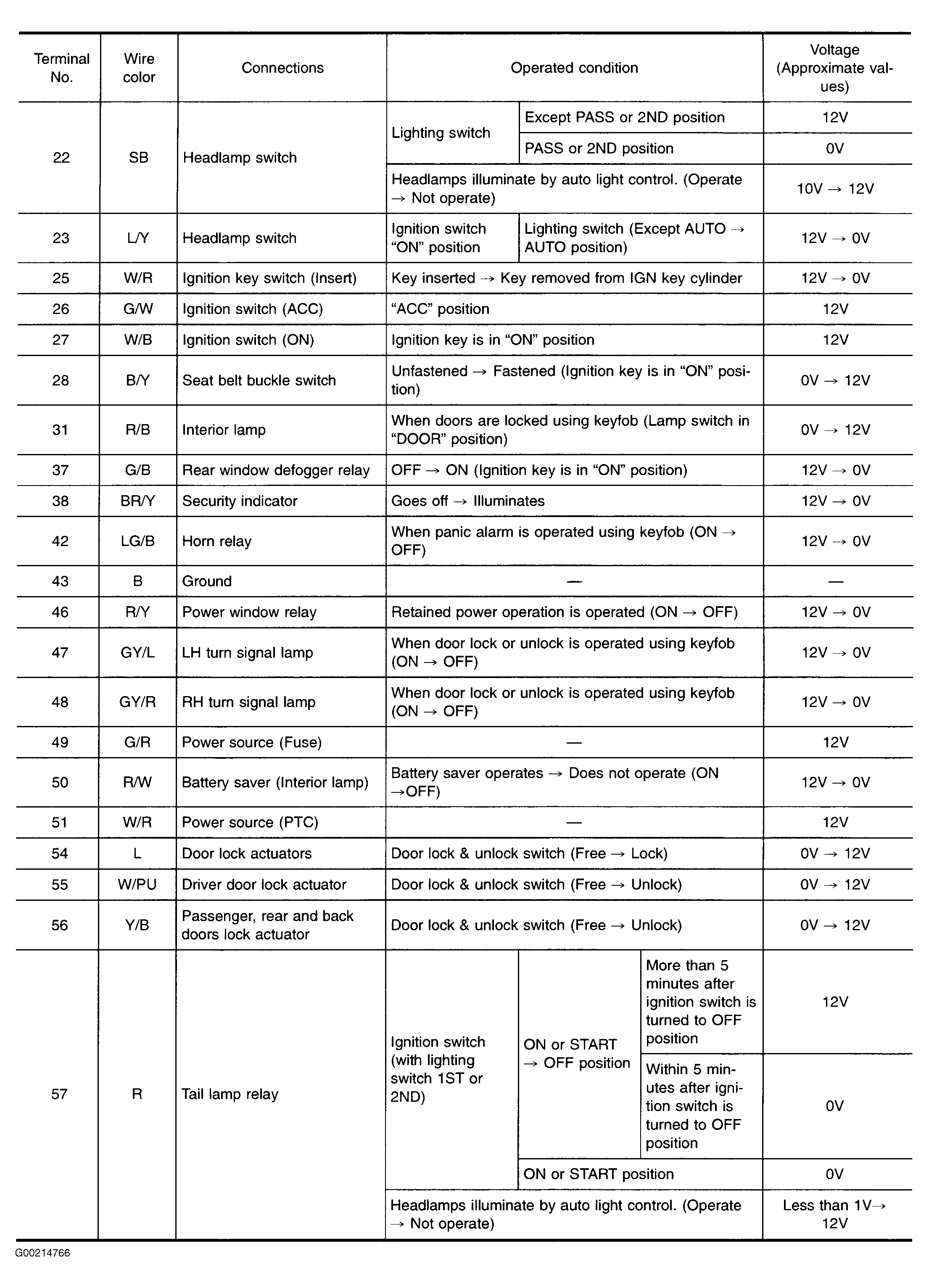

Fig 1: Identifying PIN Voltage tests (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

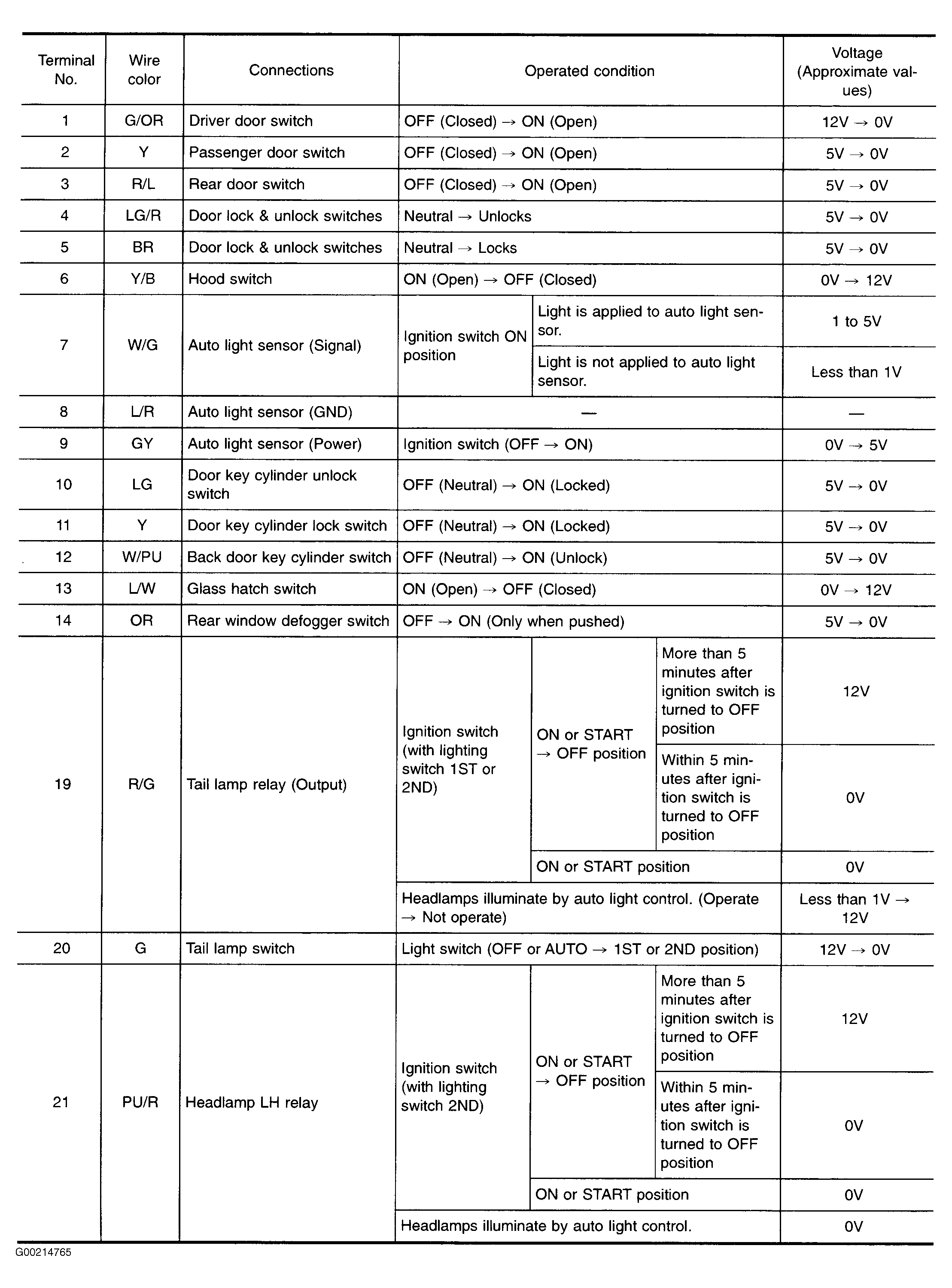

Fig 2: Identifying PIN Voltage tests (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

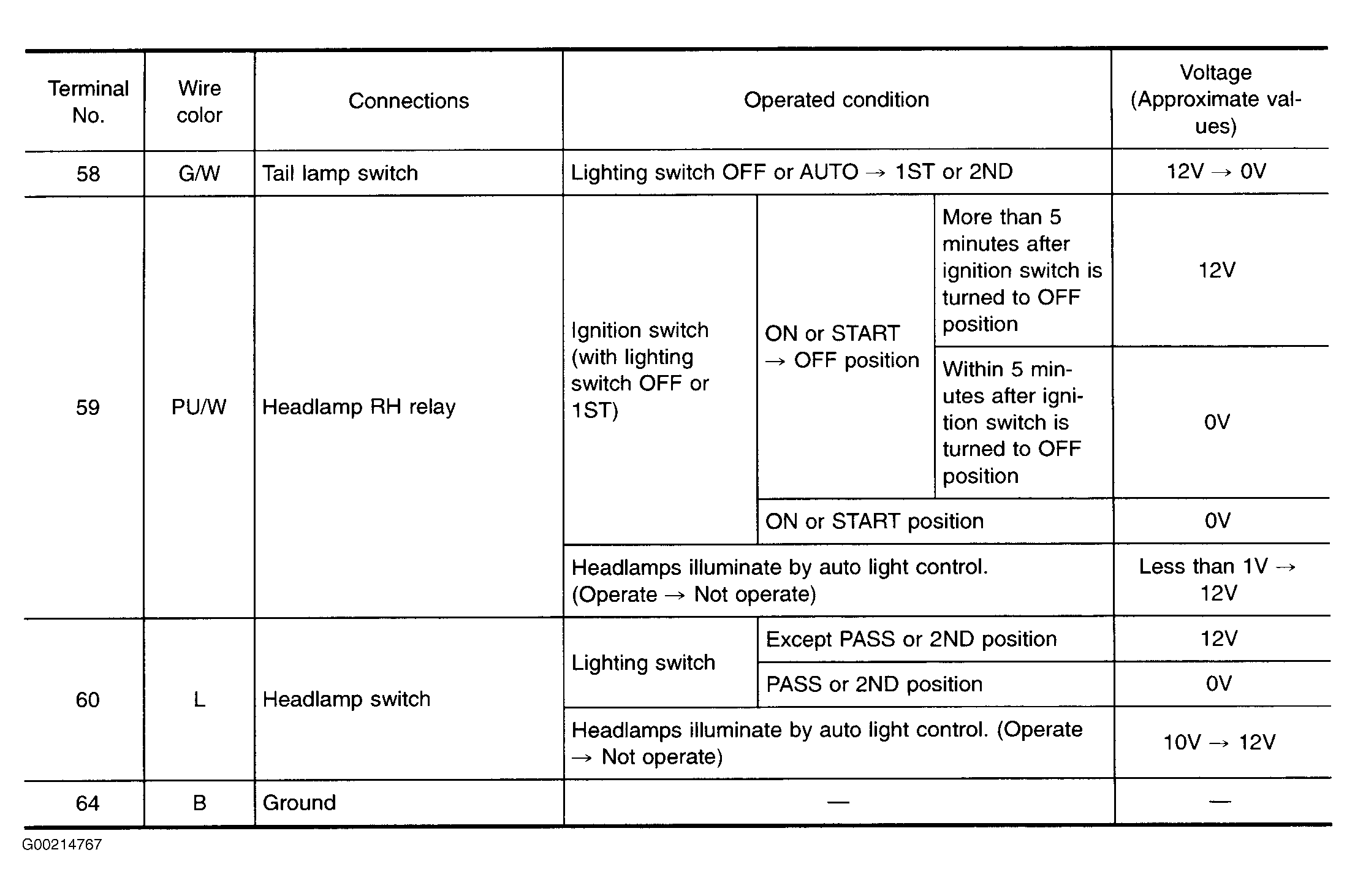

Fig 3: Identifying PIN Voltage tests (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
