Lighting Switch Inspection

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

CHECK LIGHTING SWITCH INPUT SIGNAL
With CONSULT-II

Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor, make sure "AUTO LIGHT SW" turns ON-OFF linked with operation of lighting switch.

When lighting switch is in AUTO position: AUTO LIGHT SW ON

Without CONSULT-II

Refer to "COMBINATION SWITCH INSPECTION ".

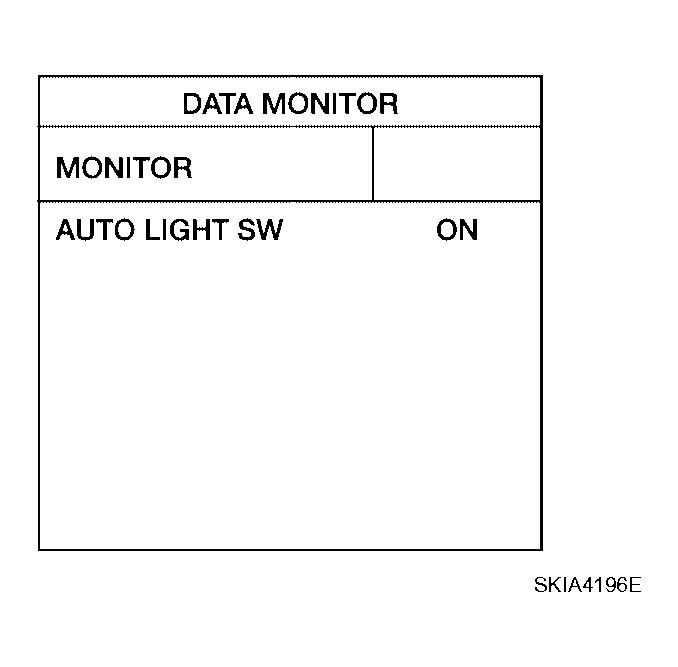

Fig 1: CONSULT-II Display - Auto Light SW
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Inspection End.

NG: Check lighting switch. Refer to "COMBINATION SWITCH INSPECTION ".
