Optical Sensor: Removal

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a thin blade screwdriver, gently pry upward to release optical sensor from defrost grille.
  2. Disconnect optical sensor connector.

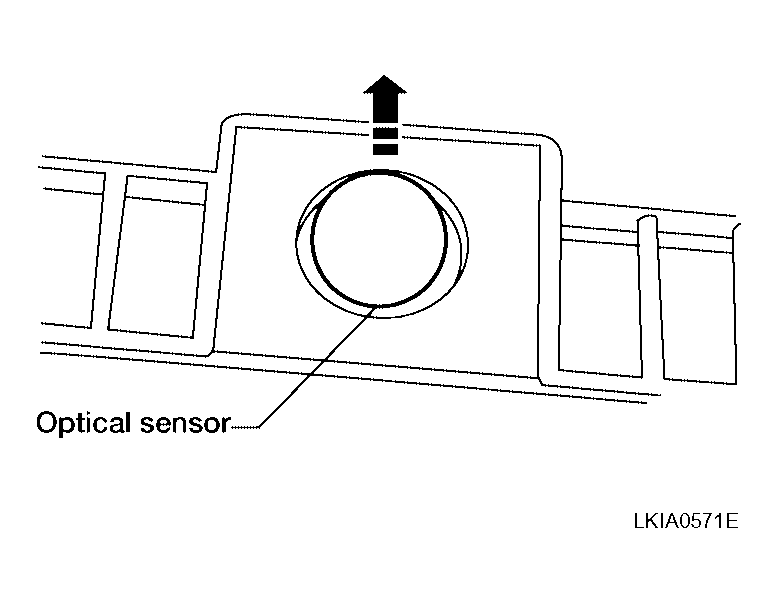

    Fig 1: Identifying Optical Sensor
    G04176927Courtesy of NISSAN MOTOR CO., U.S.A.
