Component Inspection

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF". (Stay for at least 5 seconds.)
Disconnect wait detection switch harness connector.
Remove wait detection switch. Refer to , "LOCATION OF ELECTRICAL PARTS ".

Push and release wait detection switch and check continuity between wait detection switch terminals 10 and 11.

TERMINALS CONTINUITY REFERENCE

Terminal	Condition	Continuity
10 - 11	Push wait detection switch	Yes
10 - 11	Release wait detection switch	No

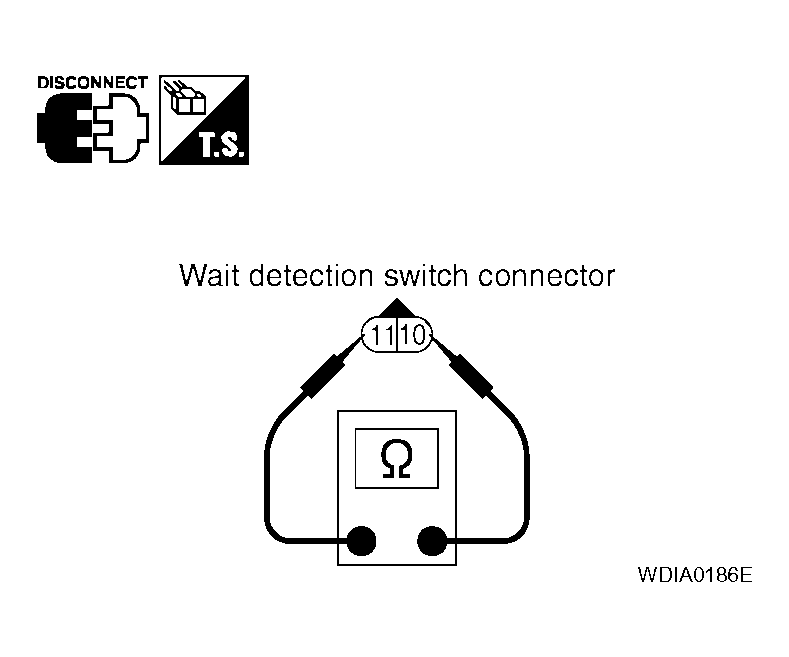

Fig 1: Checking Continuity Between Wait Detection Switch Terminals 10 And 11

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace the wait detection switch. Refer to , "LOCATION OF ELECTRICAL PARTS ".
