Interior Lamp Operation Test

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

For interior lamp operation test, see Fig 1 and Fig 2 .

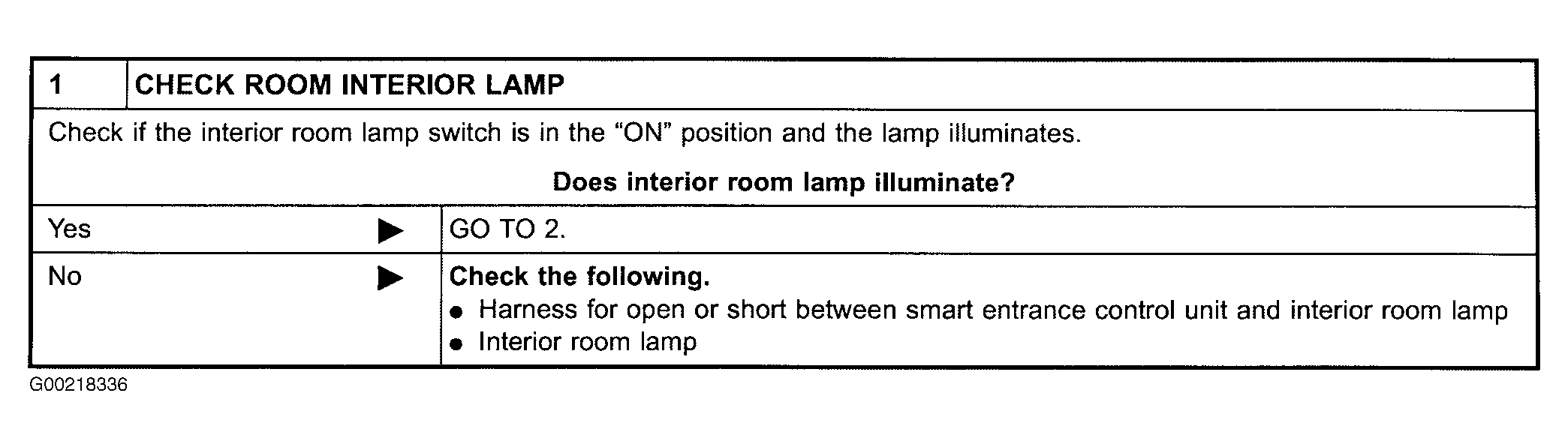

Fig 1: Identifying Interior Lamp Operation Test, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

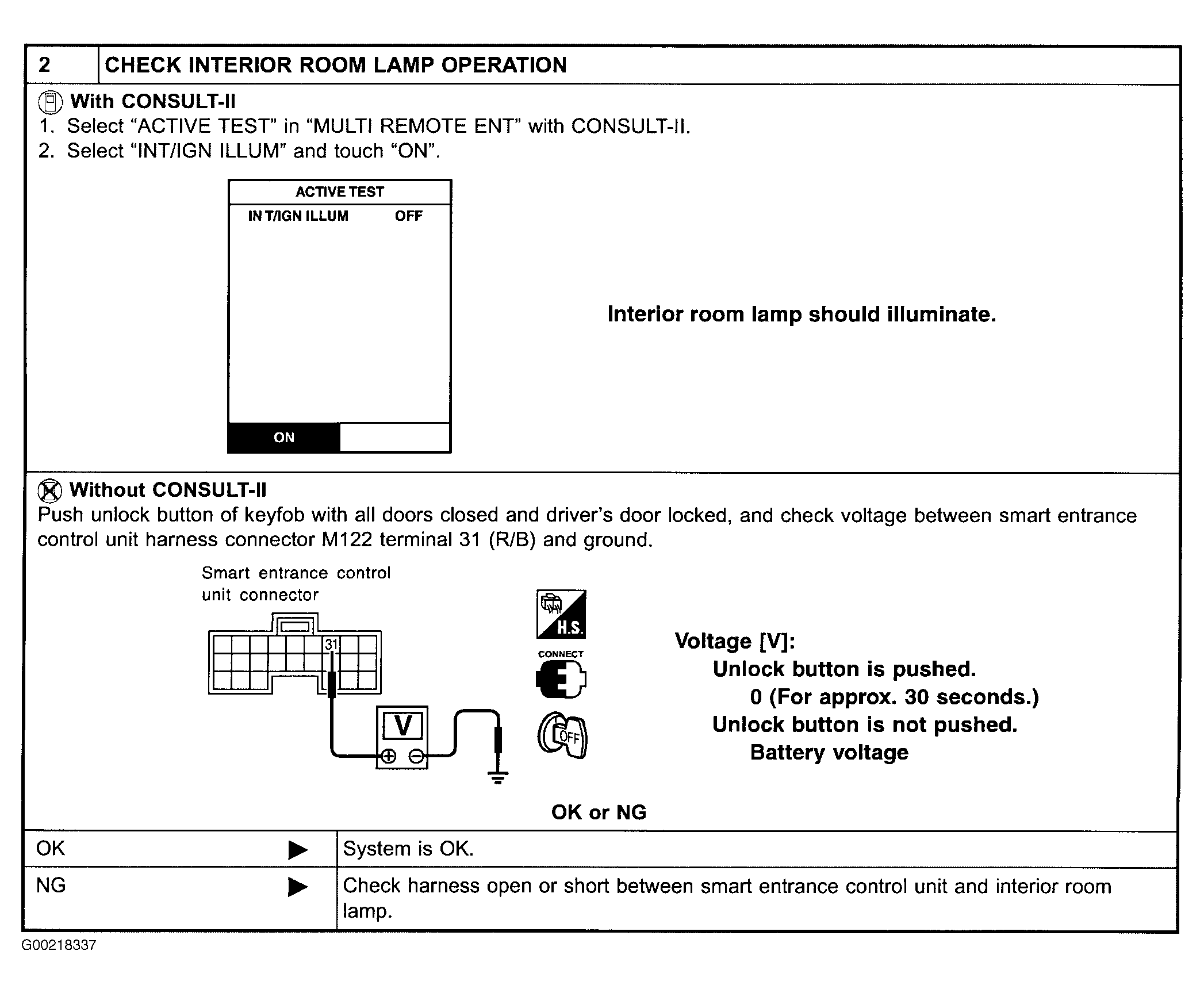

Fig 2: Identifying Interior Lamp Operation Test, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
