Component Locations

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS

Component Location
ECM Behind Center Console, See Fig 1
Fuel Tank Gauge Unit Under Left Rear Seat, See Fig 2
Fuse Block (J/B) Behind Left Side Of Dash, See Fig 3
Fuse & Fusible Link Box Under Hood, In Front Of Right Strut Pillar, See Fig 4
Key Switch On Steering Column, Under Steering Column Covers, See Fig 5
Left Front Door Switch On Bottom Of Left Front Door Post, See Fig 6
Seat Belt Buckle On Right Side Of Front Seat, See Fig 7
Smart Entrance Control Unit Behind Left Side Of Dash, See Fig 8
Thermal Transmitter On Thermostat Housing, See Fig 9
Fig 1: Locating ECM
G00025051Courtesy of NISSAN MOTOR CO., U.S.A.

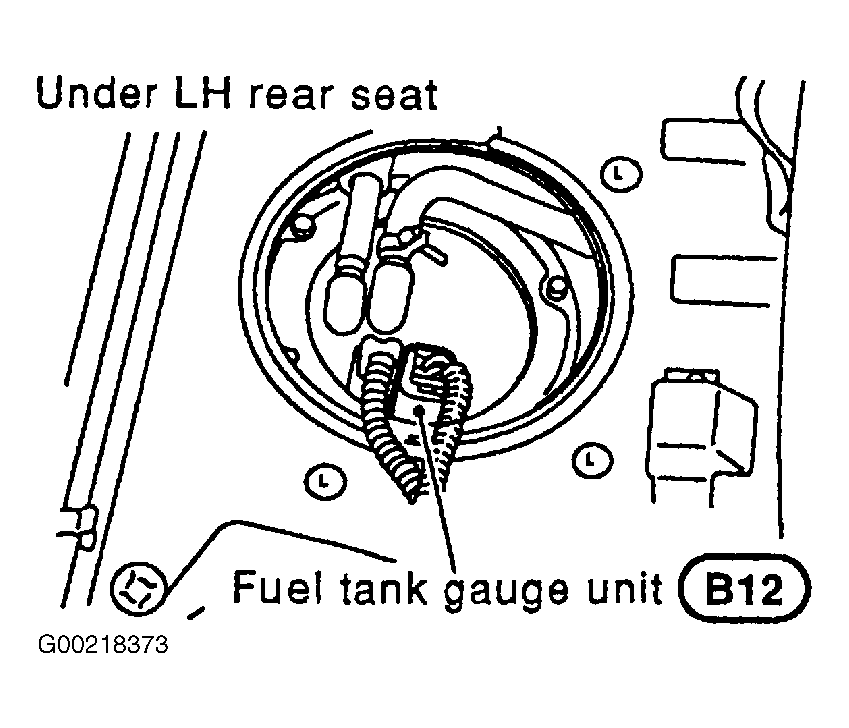

Fig 2: Locating Fuel Tank Gauge Unit
G00218373Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Locating & Identifying Fuse Block (J/B) Fuse No.
G00199112Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Locating & Identifying Fuse & Fusible Link Box Fuses & Fusible Links
G00199113Courtesy of NISSAN MOTOR CO., U.S.A.

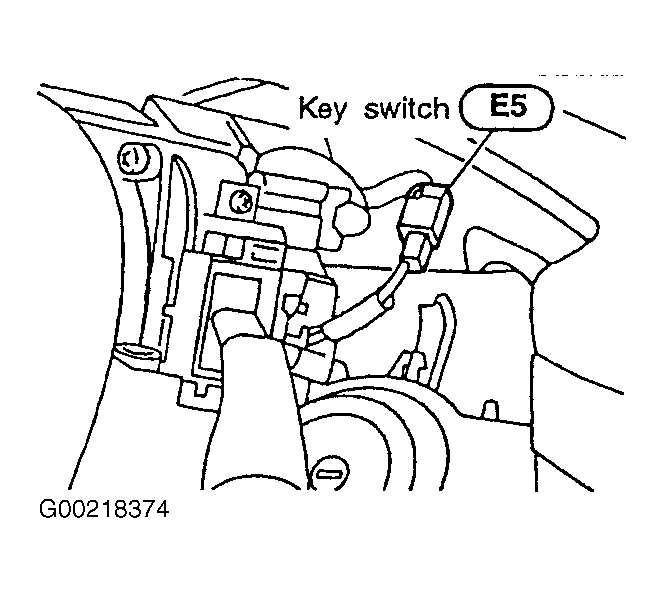

Fig 5: Locating Key Switch
G00218374Courtesy of NISSAN MOTOR CO., U.S.A.

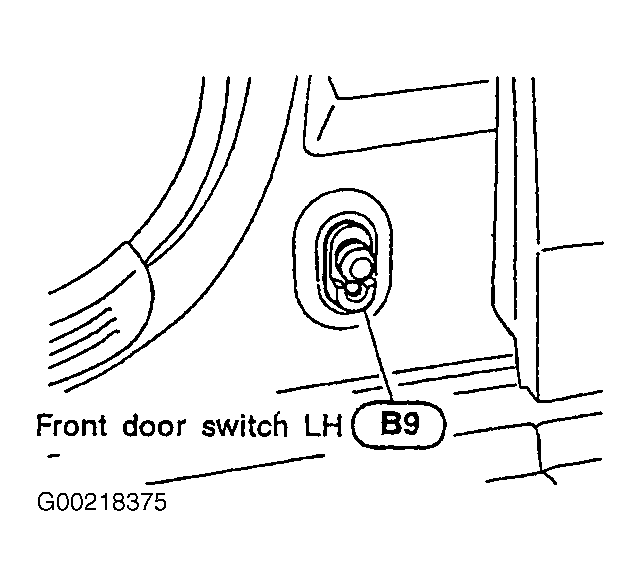

Fig 6: Locating Left Front Door Switch
G00218375Courtesy of NISSAN MOTOR CO., U.S.A.

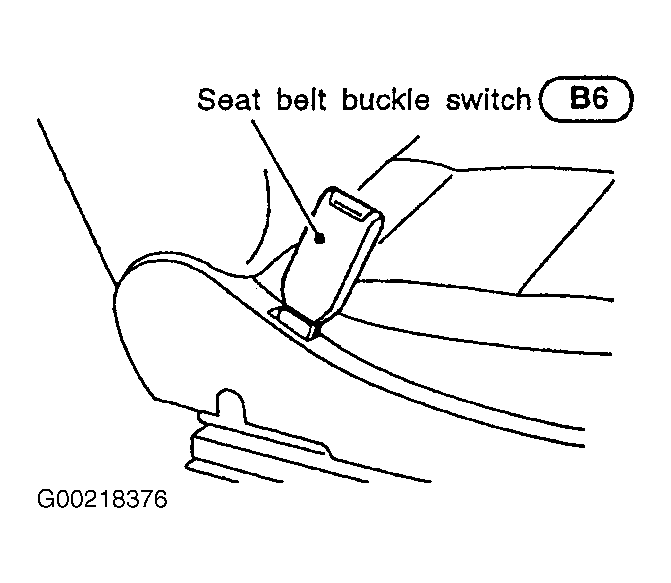

Fig 7: Locating Seat Belt Buckle Switch
G00218376Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 8: Locating Smart Entrance Control Unit
G00199114Courtesy of NISSAN MOTOR CO., U.S.A.

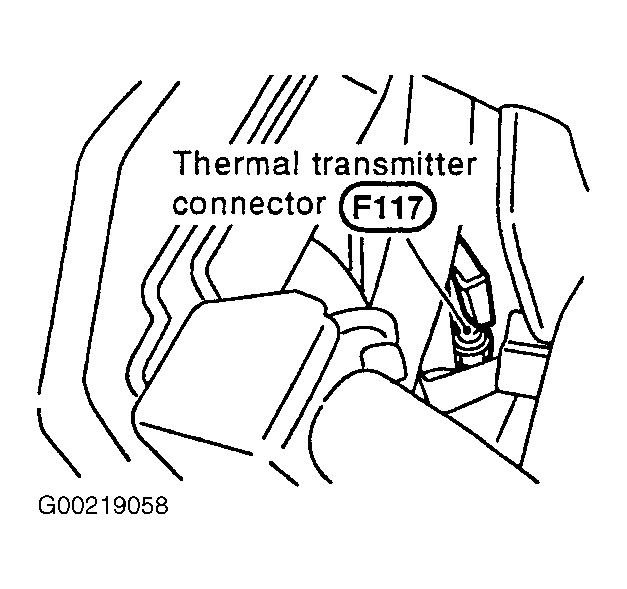

Fig 9: Locating Thermal Transmitter
G00219058Courtesy of NISSAN MOTOR CO., U.S.A.
