Unified Control Meter: Notes
WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

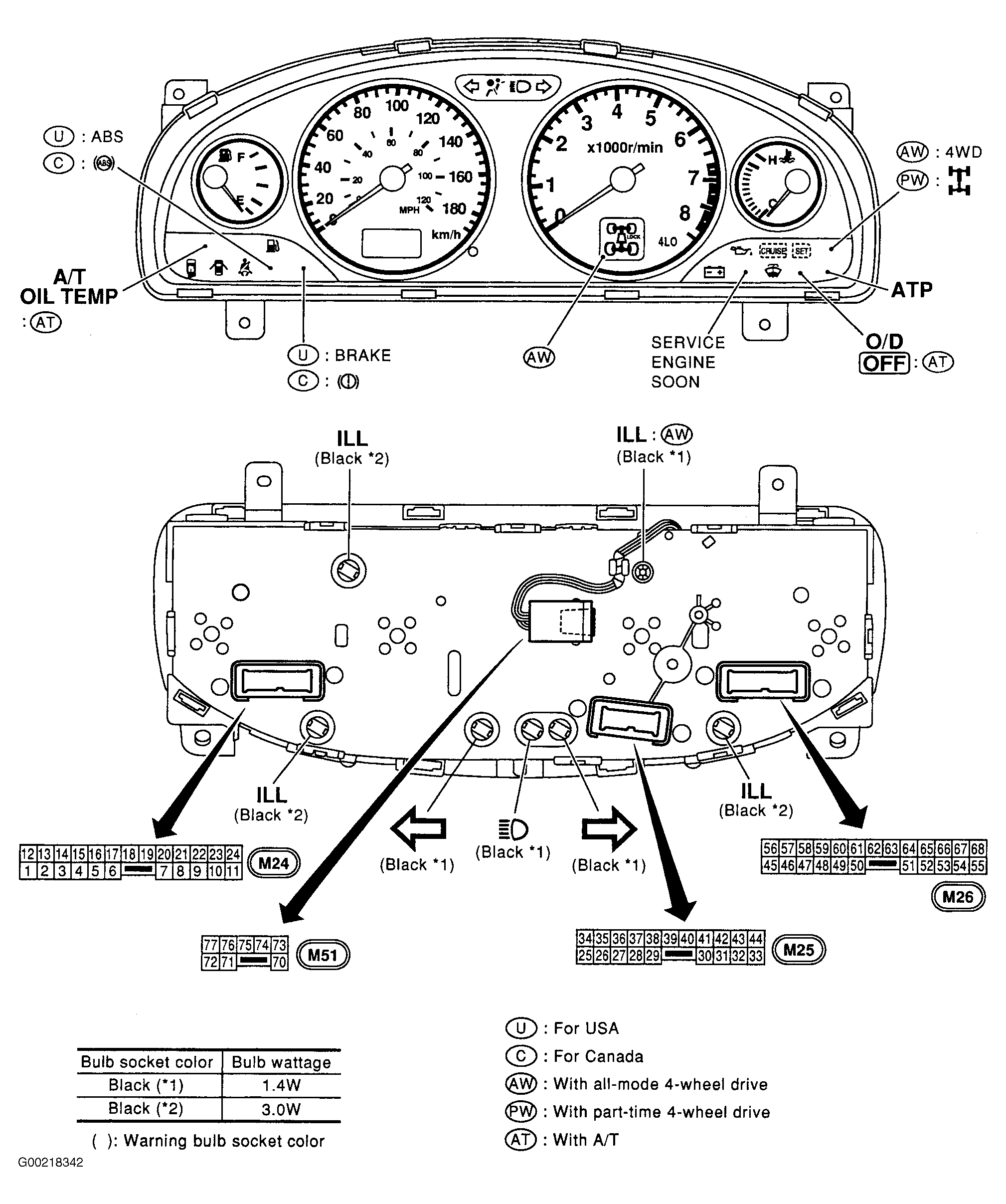

Speedometer, "Odo/Trip" meter, tachometer, fuel gauge and water temperature gauge are controlled totally by control unit built-in combination meter. For combination meter components, see Fig 1.
Digital meter is adopted for "Odo/Trip" meter. The record of the odometer is kept even if the battery cable is disconnected. The record of the trip meter is erased when the battery cable is disconnected. "Odo/Trip" meter segment and meter/gauge can be checked in diagnosis mode.
