Engine Revolution Signal Tests

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For engine revolution signal tests, see Fig 1.

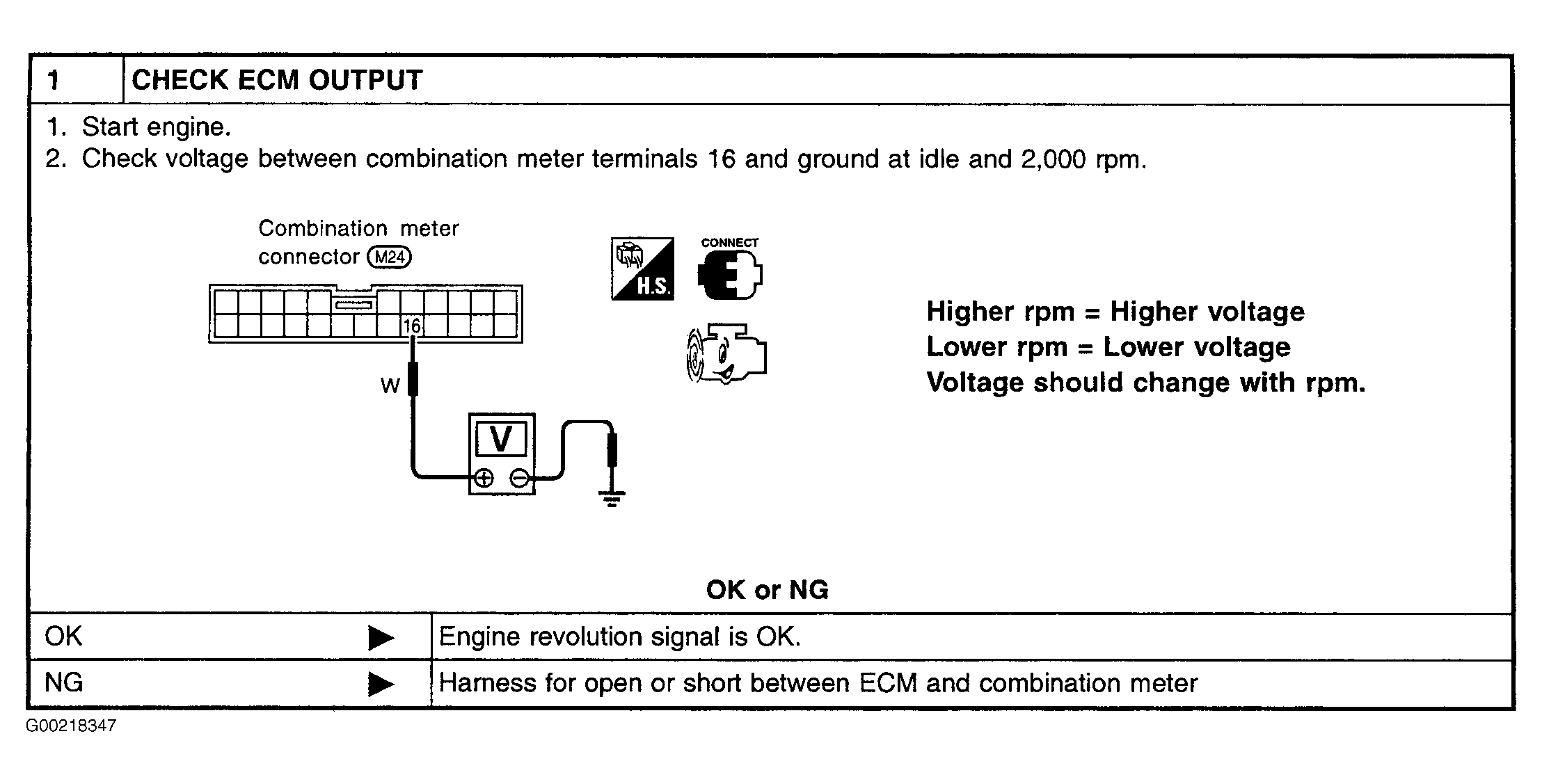

Fig 1: Identifying Engine Revolution Signal Tests
G00218347Courtesy of NISSAN MOTOR CO., U.S.A.
