Fuel Level Sensor Unit Tests

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For fuel level sensor unit check, see FUEL LEVEL SENSOR UNIT CHECK .

For fuel level sensor unit tests, see Fig 1-Fig 3 .

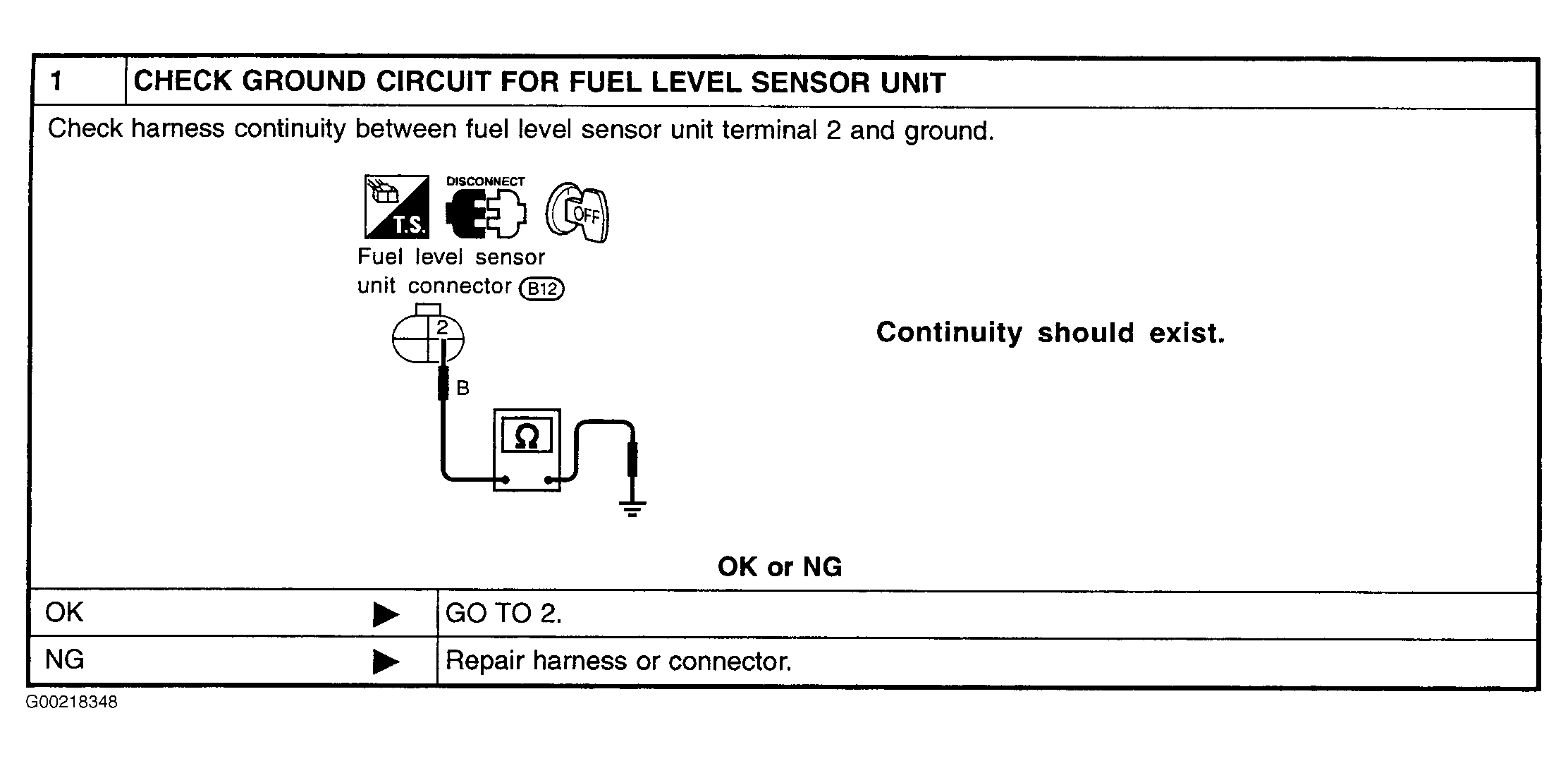

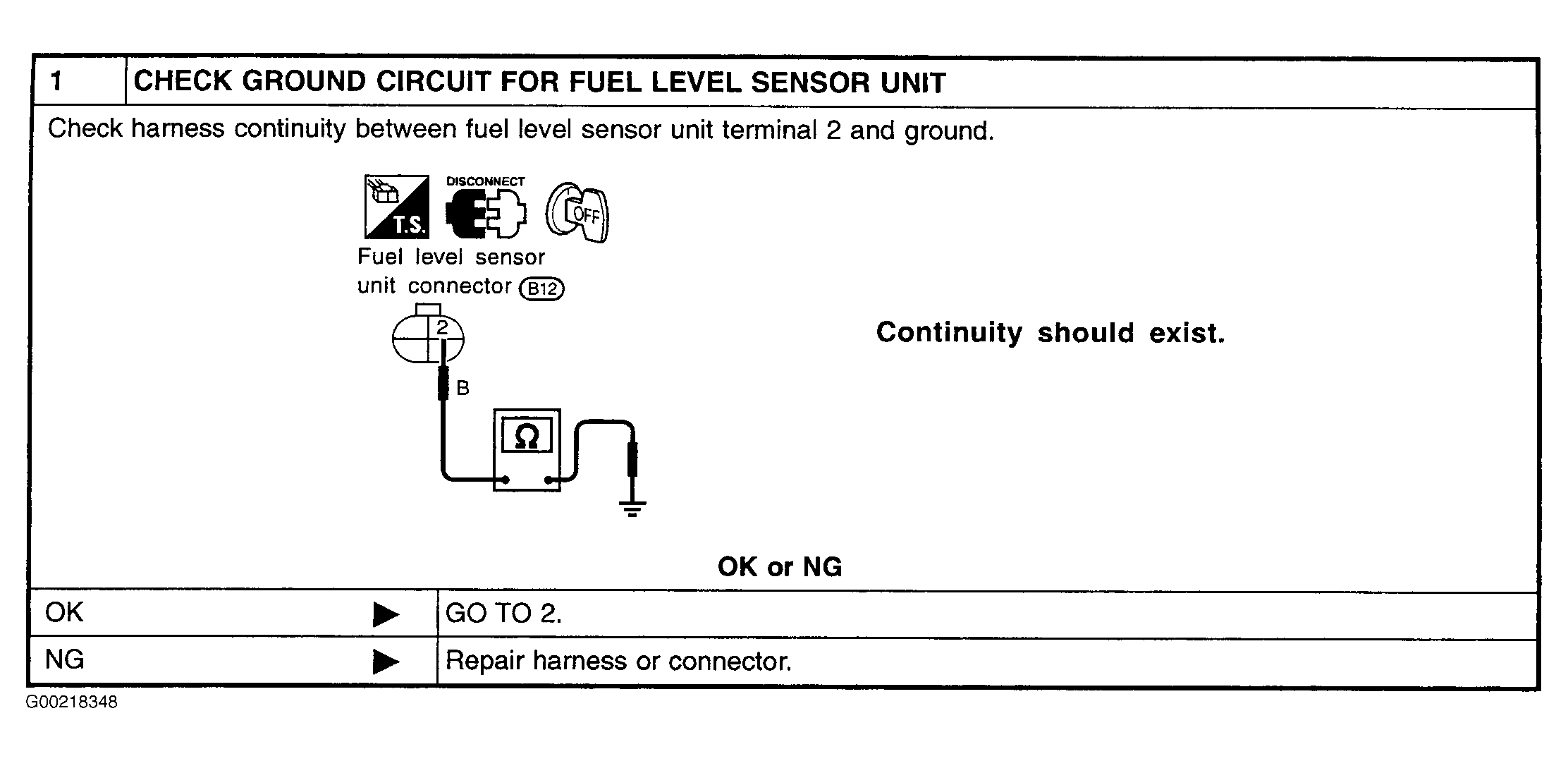

Fig 1: Identifying Fuel Level Sensor Unit Tests, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Fuel Level Sensor Unit Tests, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.

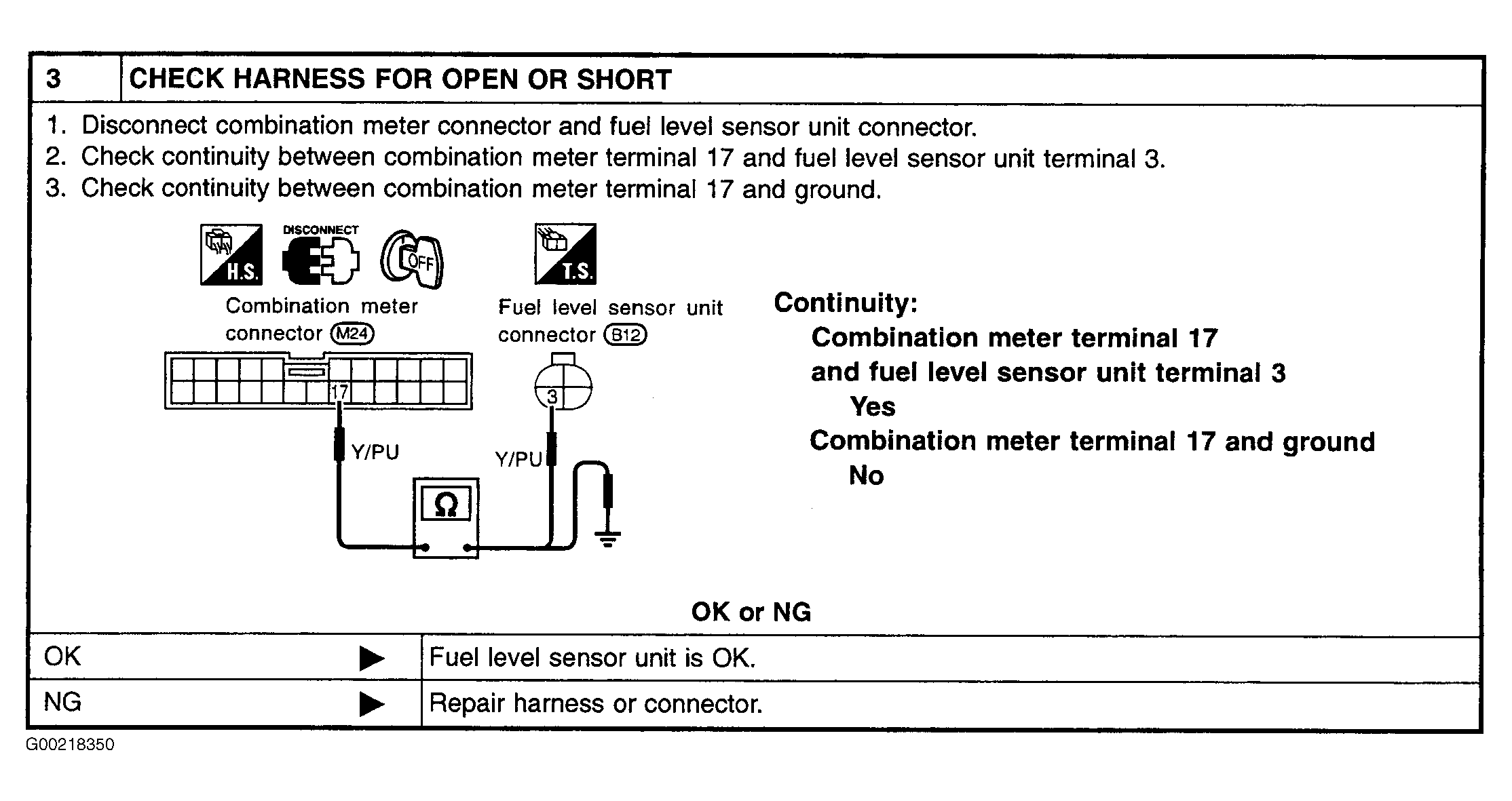

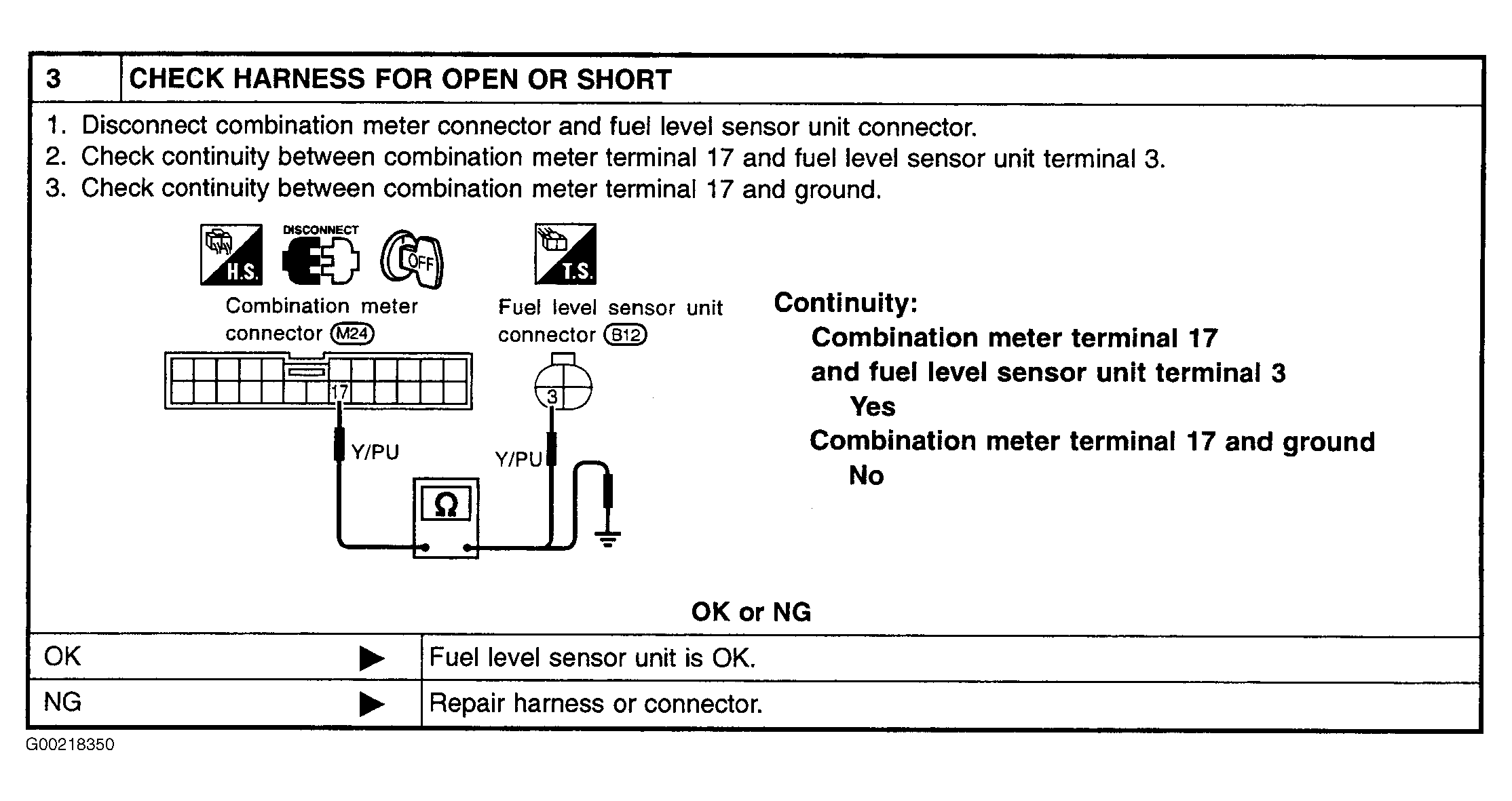

Fig 3: Identifying Fuel Level Sensor Unit Tests, Step 3

Courtesy of NISSAN MOTOR CO., U.S.A.
