Symptom Chart (Unified Control Meter)

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For inspection/vehicle speed sensor, see VEHICLE SPEED SENSOR TESTS , for inspection/engine revolution signal, see ENGINE REVOLUTION SIGNAL TESTS , for inspection/fuel level sensor unit, see FUEL LEVEL SENSOR UNIT TESTS and for inspection/thermal transmitter, see THERMAL TRANSMITTER TESTS .

For symptom chart, see Fig 1.

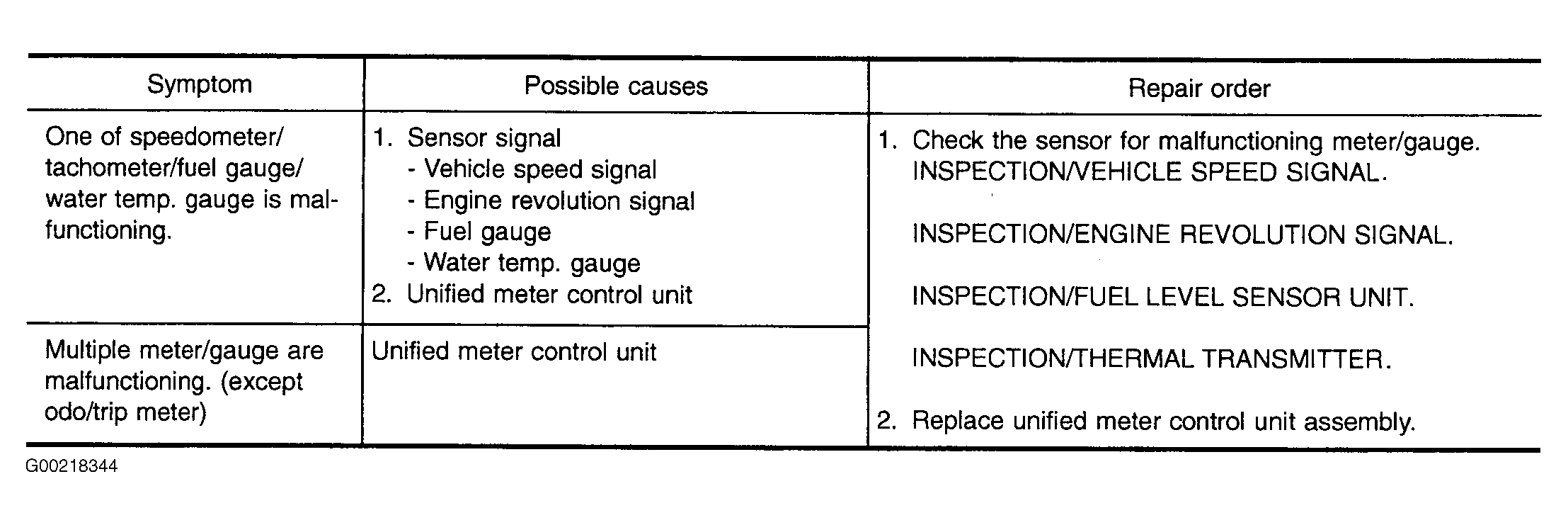

Fig 1: Identifying Symptom Chart (Unified Control Meter)

Courtesy of NISSAN MOTOR CO., U.S.A.
