Circuit Protection Devices
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| Fuse Block (J/B) | Behind left side of dash. See Figure. |

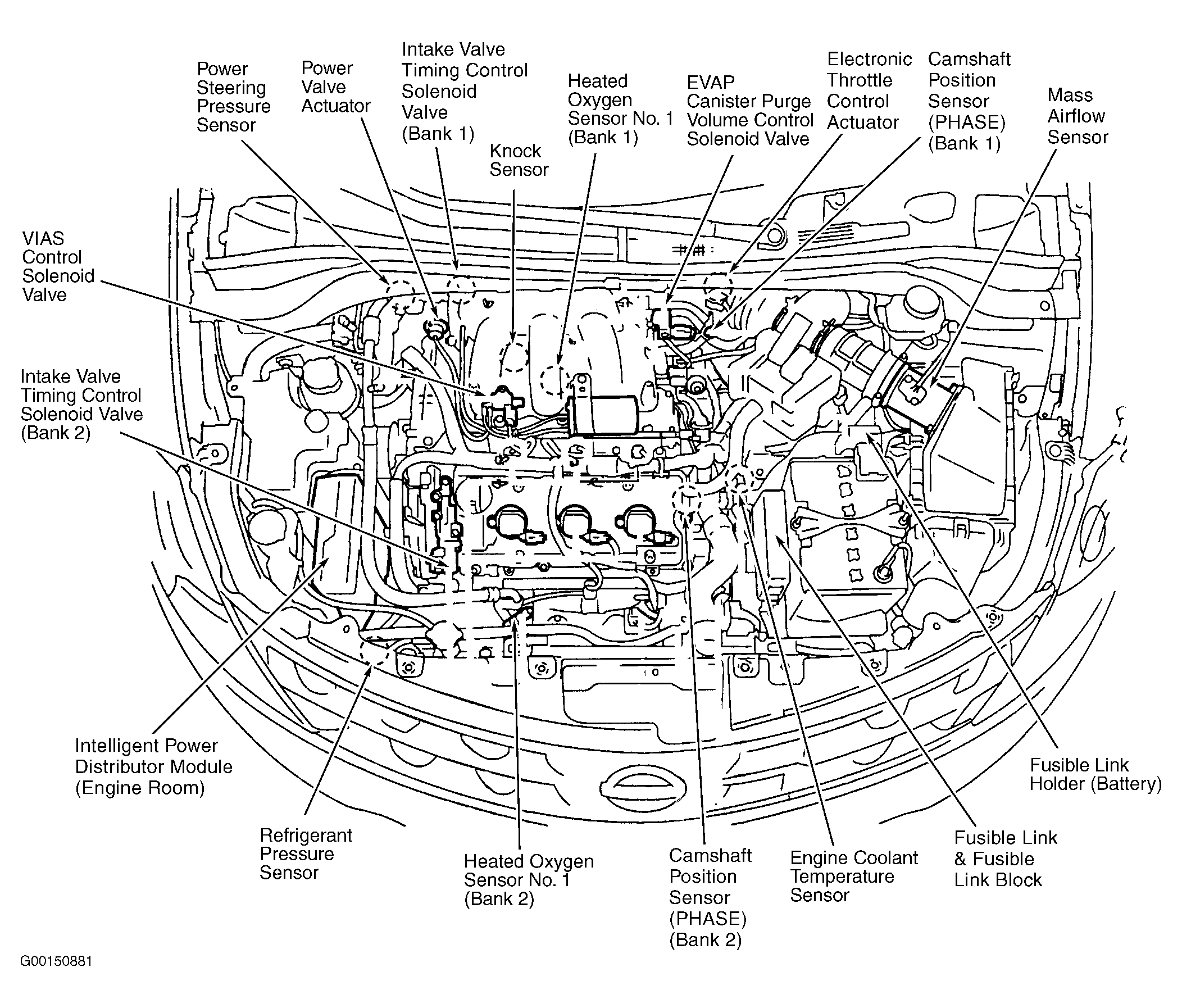

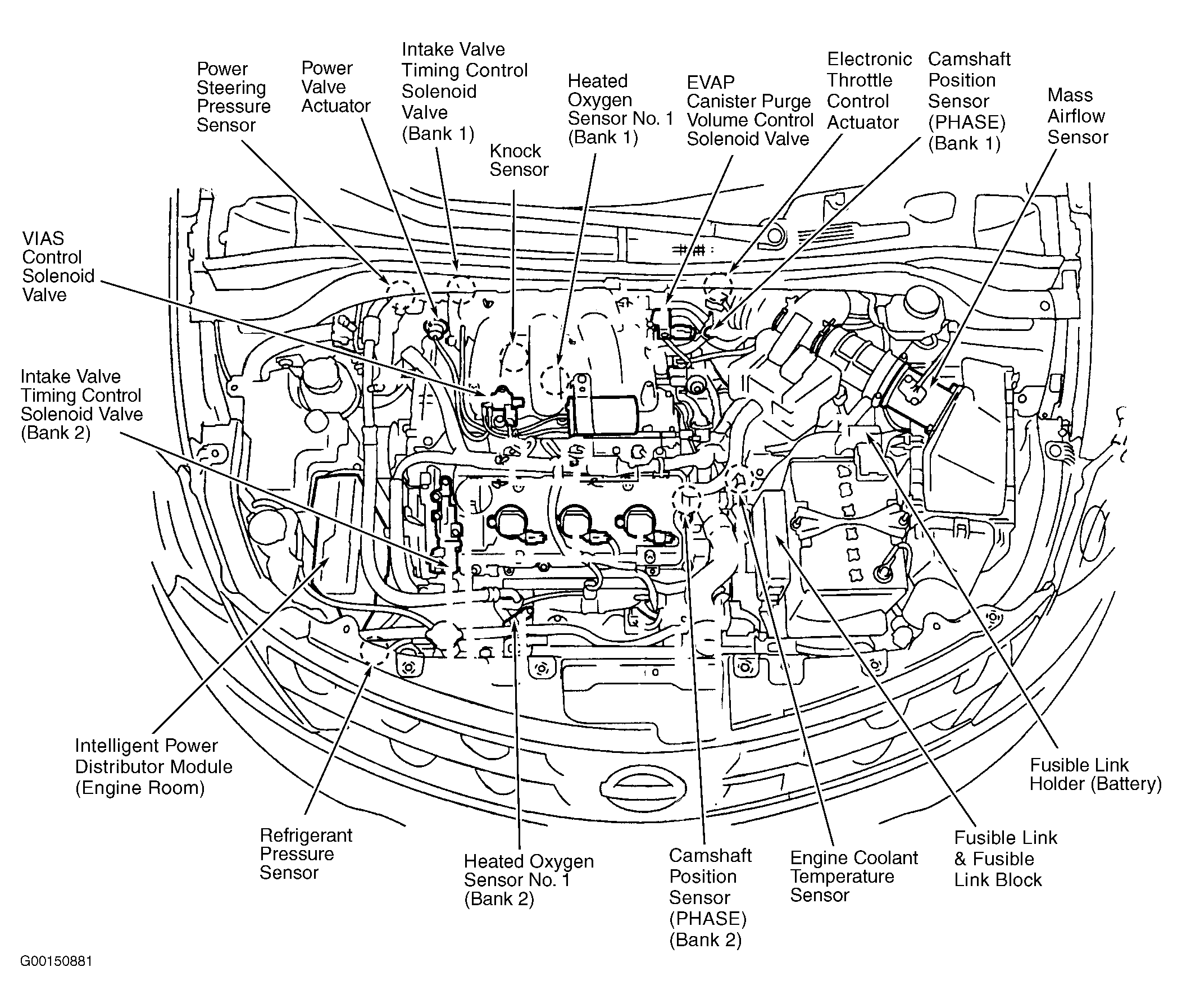

| Fusible Link & Fusible Link Block | On left front of engine compartment, near battery. See Figure. |
| Fusible Link Holder (Battery) | On left front of engine compartment, at positive battery terminal. See Figure. |
| Intelligent Power Distribution Module (Engine Room) | On right front of engine compartment, behind headlight. See Figure. |
