Component Location Graphics

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00150881

Courtesy of NISSAN MOTOR CO., U.S.A.

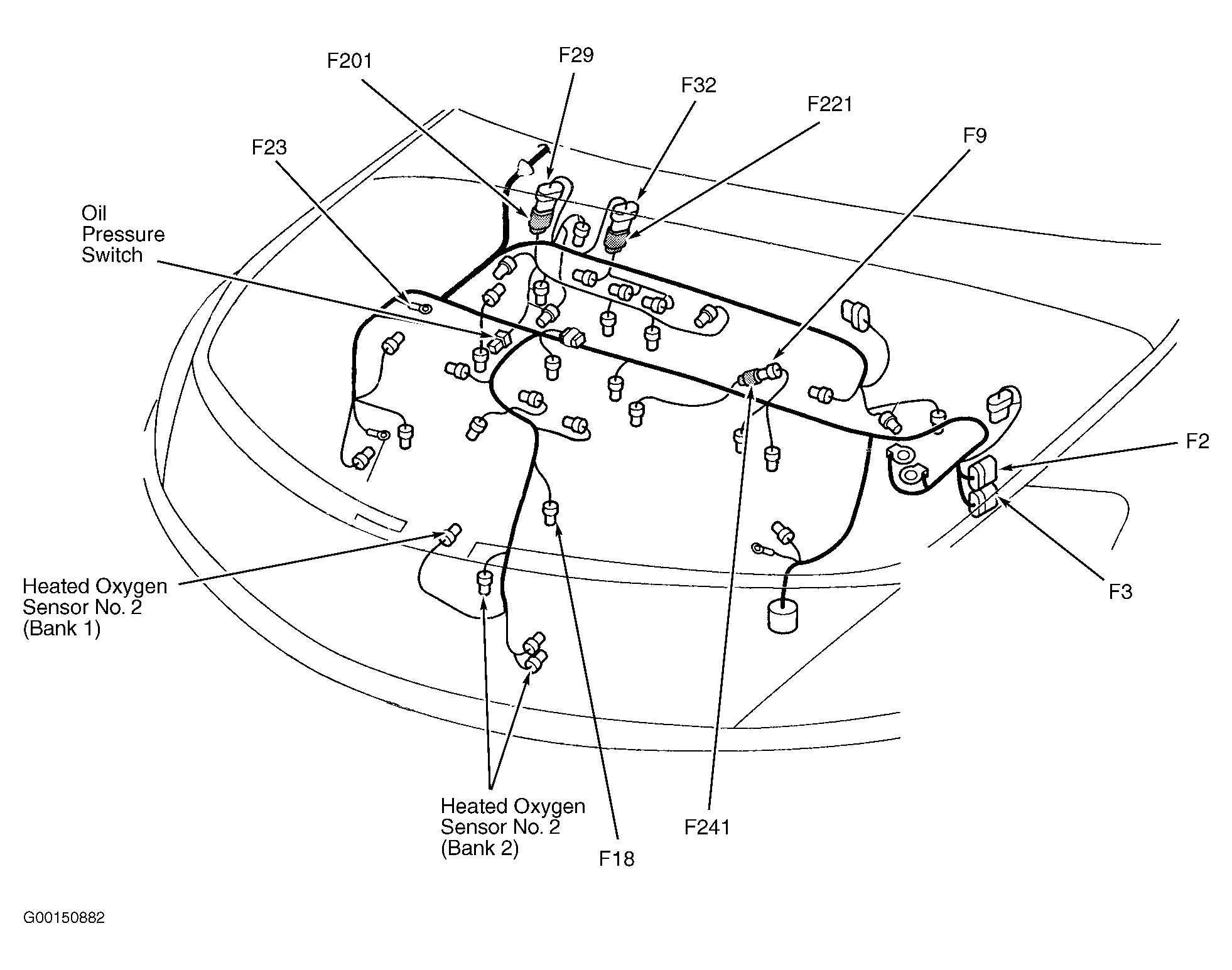

Fig 2: Engine Compartment

G00150882

Courtesy of NISSAN MOTOR CO., U.S.A.

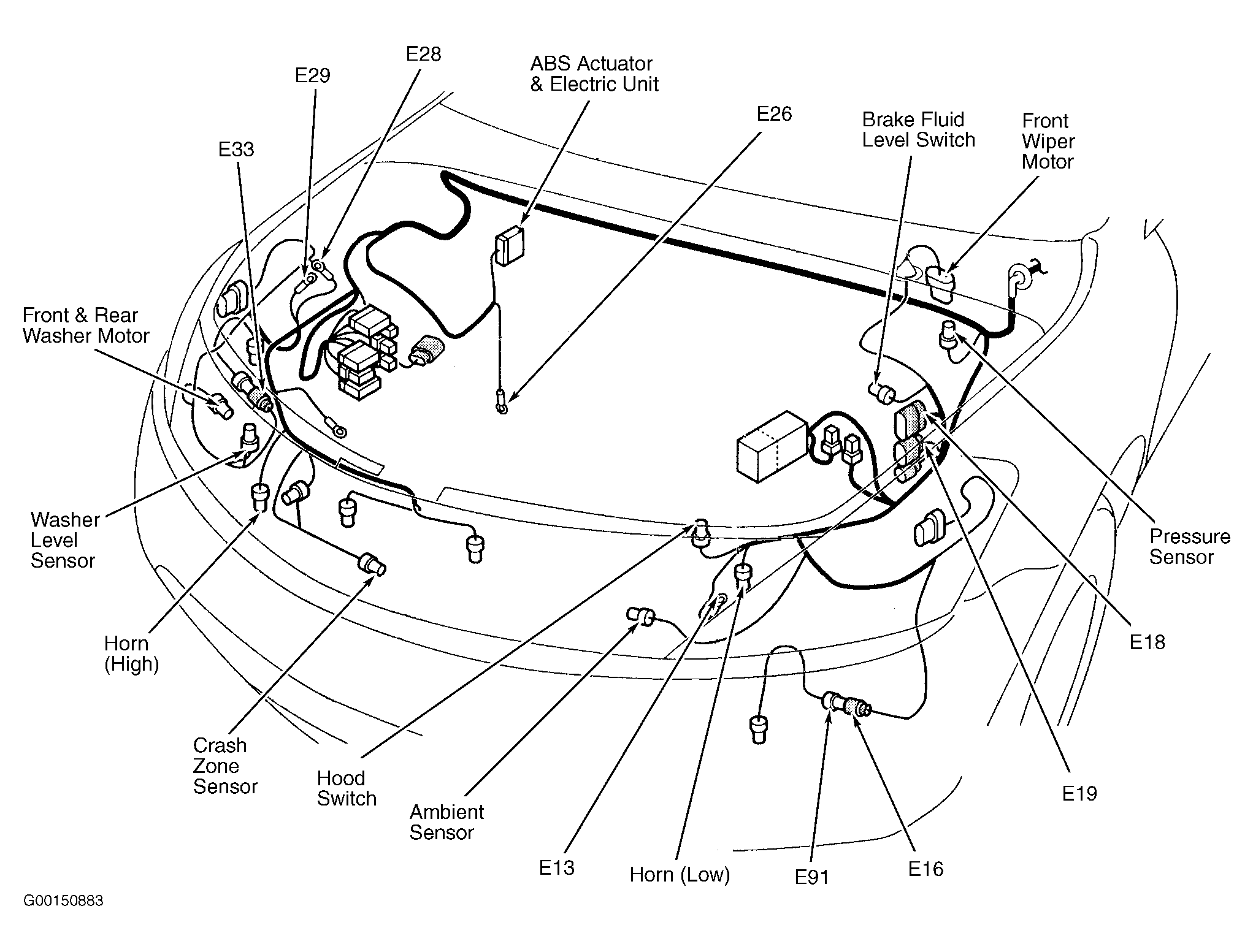

Fig 3: Engine Compartment

G00150883

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Dash

G00150884

Courtesy of NISSAN MOTOR CO., U.S.A.

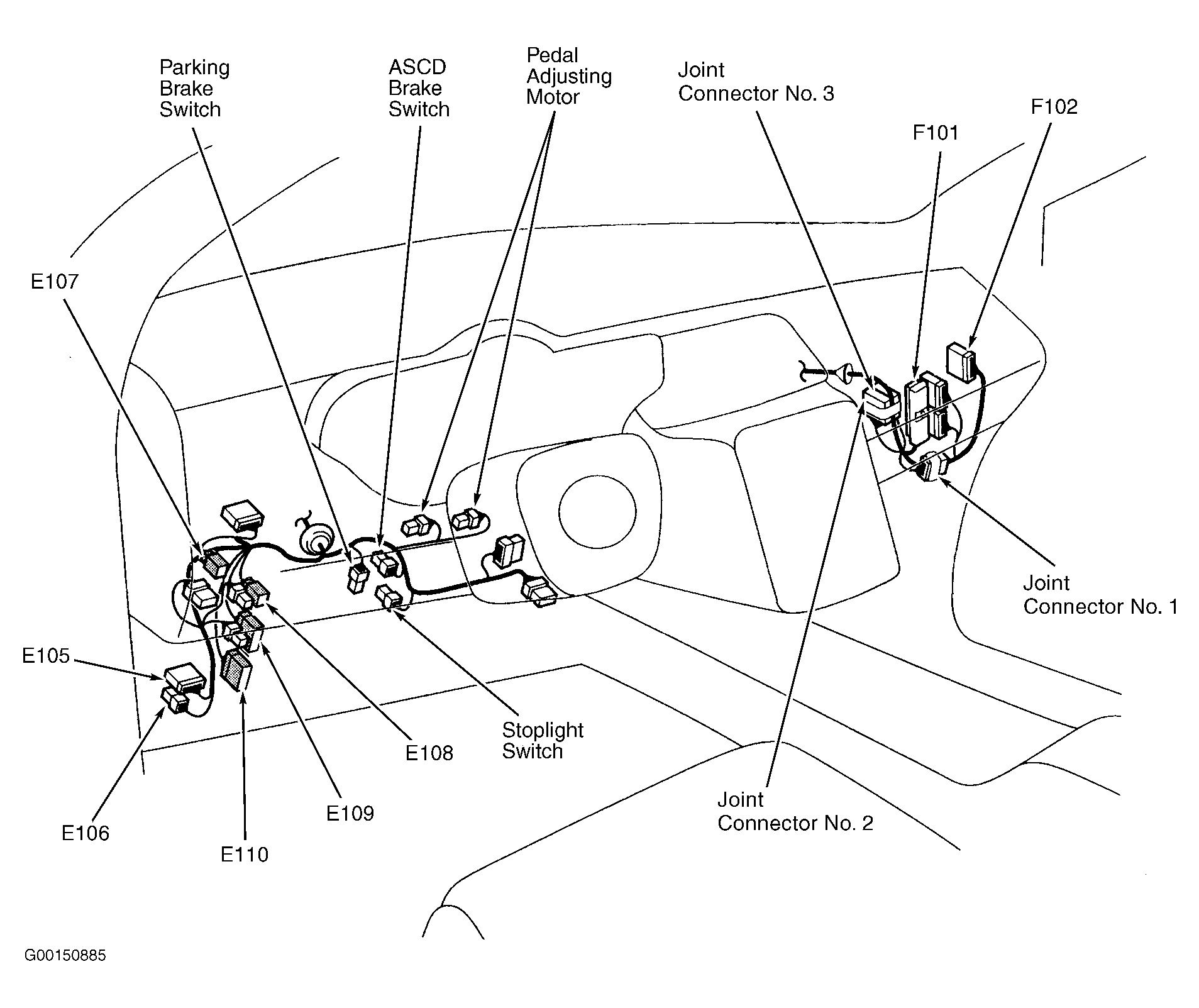

Fig 5: Dash

G00150885

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Passenger Compartment

G00150886

Courtesy of NISSAN MOTOR CO., U.S.A.

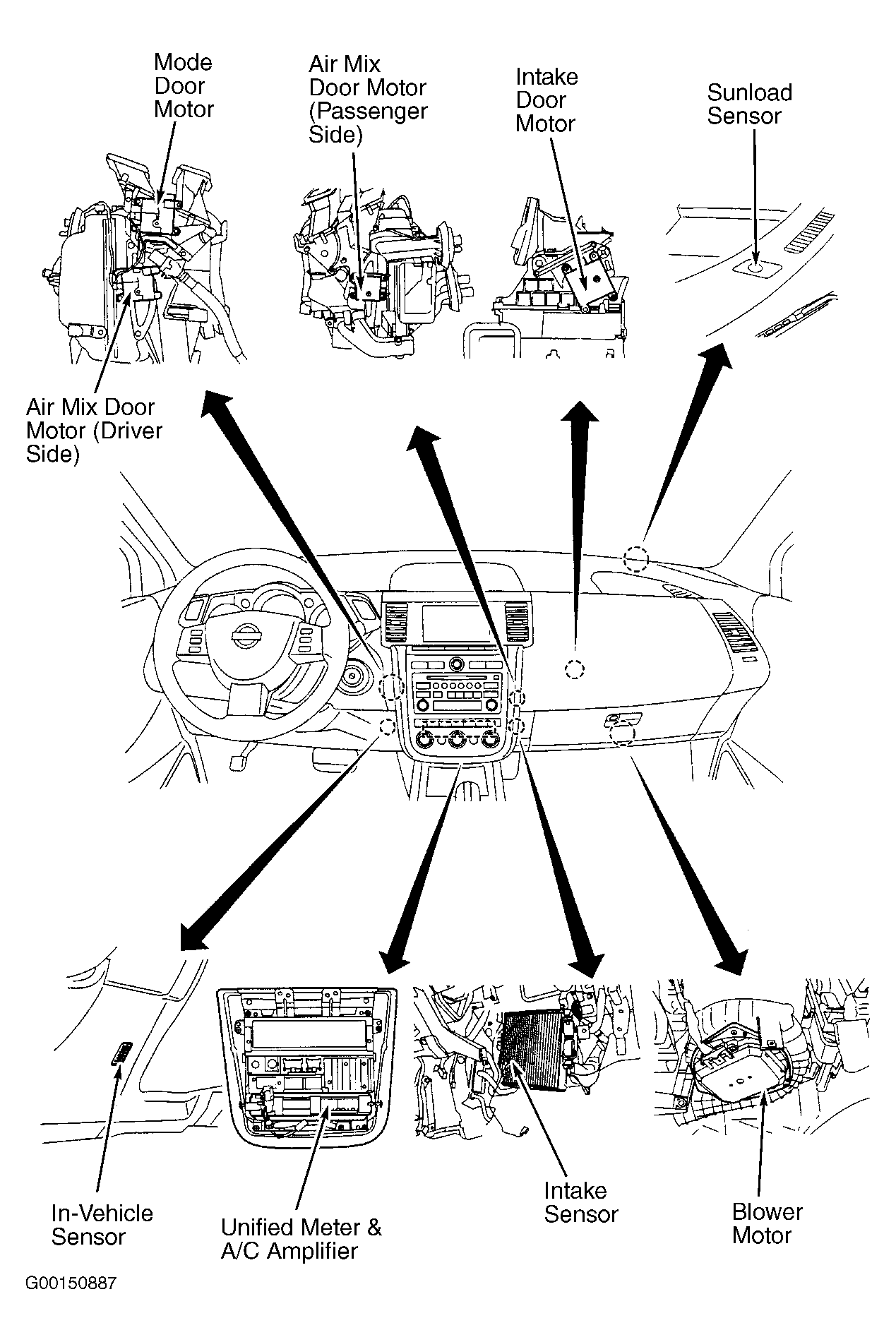

Fig 7: HVAC Assembly

G00150887

Courtesy of NISSAN MOTOR CO., U.S.A.
