Control Units
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

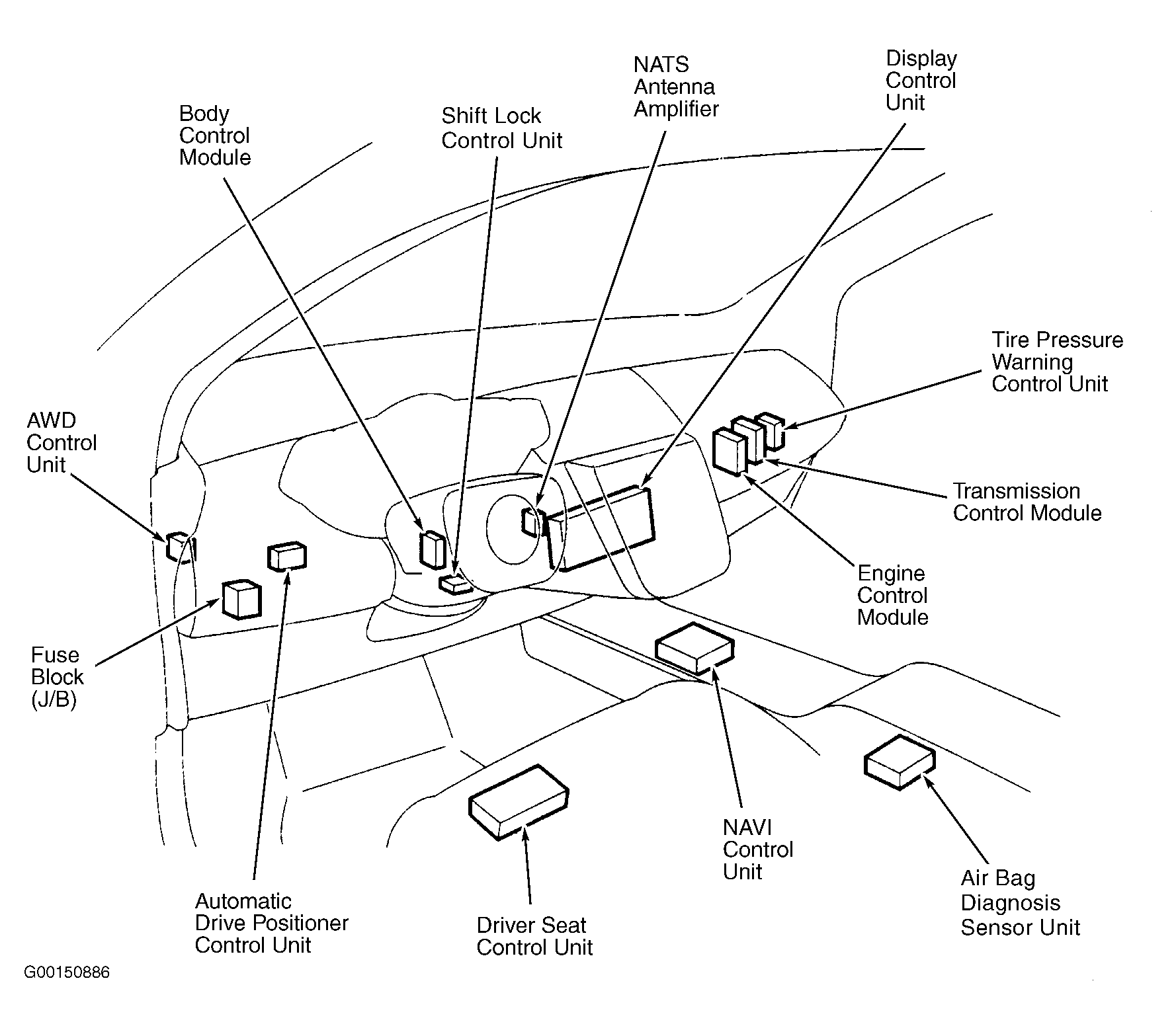

CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Actuator & Electric Unit | At right rear of engine compartment. |
| Automatic Drive Positioner Control Unit | Under left side of dash, behind fuse block (J/B). See Figure. |
| AWD Control Unit | Behind left side of dash. See Figure. |
| Body Control Module | Behind left side of dash. See Figure. |
| CVT Unit | At bottom left of transmission. |
| Display Control Unit | Behind center of dash. See Figure. |
| Driver Seat Control Unit | Under driver seat. See Figure. |
| Engine Control Module | Behind glove box. See Figure. |
| NAVI Control Unit | Under front of center console. See Figure. |

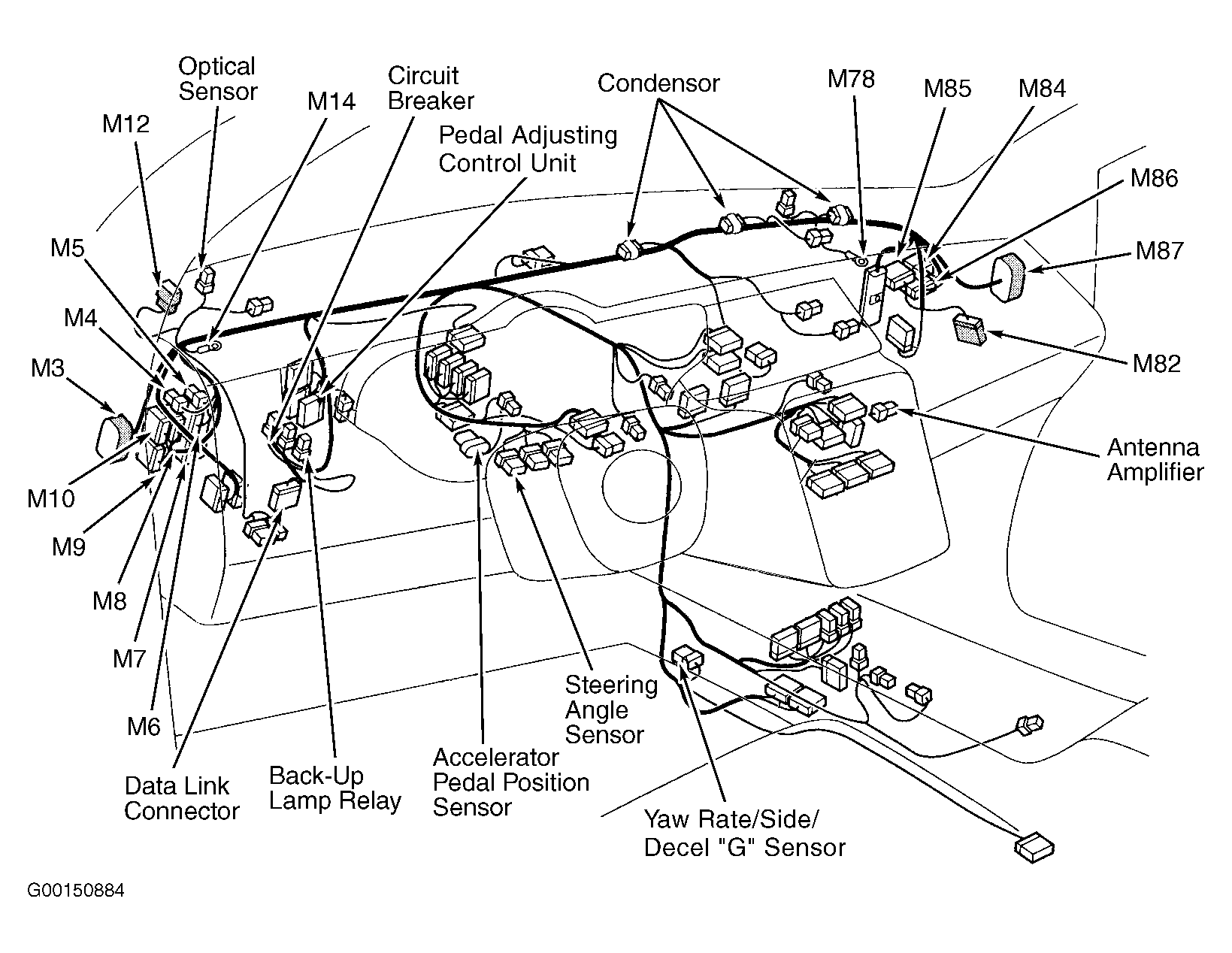

| Pedal Adjusting Control Unit | Behind left side of dash. See Figure. |
| Shift Lock Control Unit | Behind left side of dash. See Figure. |
| Tire Pressure Warning Control Unit | Behind right side of dash. See Figure. |
| Transmission Control Module | Behind right side of dash. See Figure. |
