Section 175 (Electrical Component Locator): Grounds
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
GROUNDS LOCATION
| Component | Component Location |
|---|---|
| B7 | Behind left kick panel. |
| B15 | At base of left "B" pillar. |
| B20 | Behind left rear seat. |
| B105 | Behind right kick panel. |
| B113 | At base of right "B" pillar. |
| B116 | Behind right rear seat. |

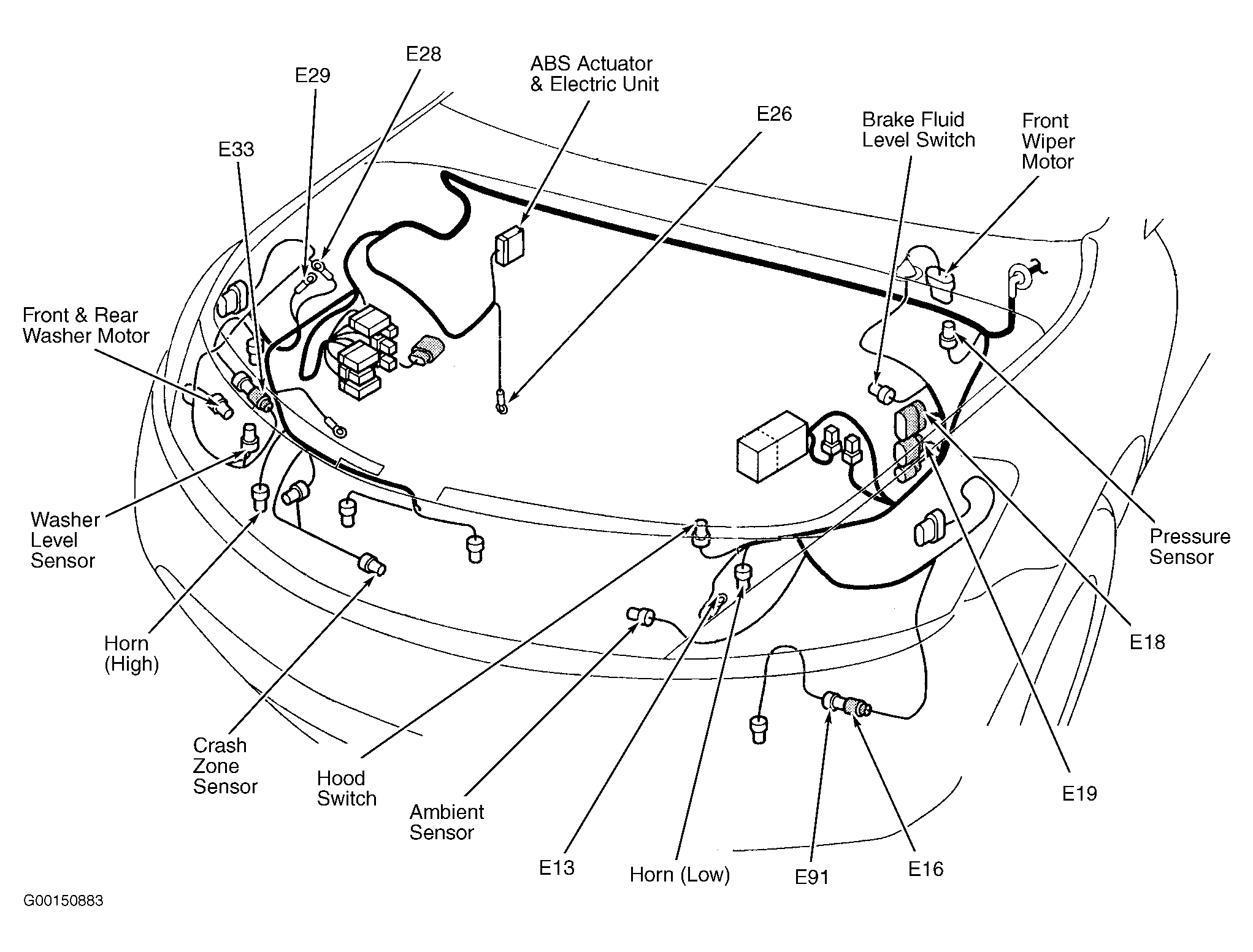

| E13 | At left front corner of engine compartment. See Figure. |
| E26 | At lower right side of engine compartment. See Figure. |
| E28 | At right side of engine compartment. See Figure. |
| E29 | At right side of engine compartment. See Figure. |

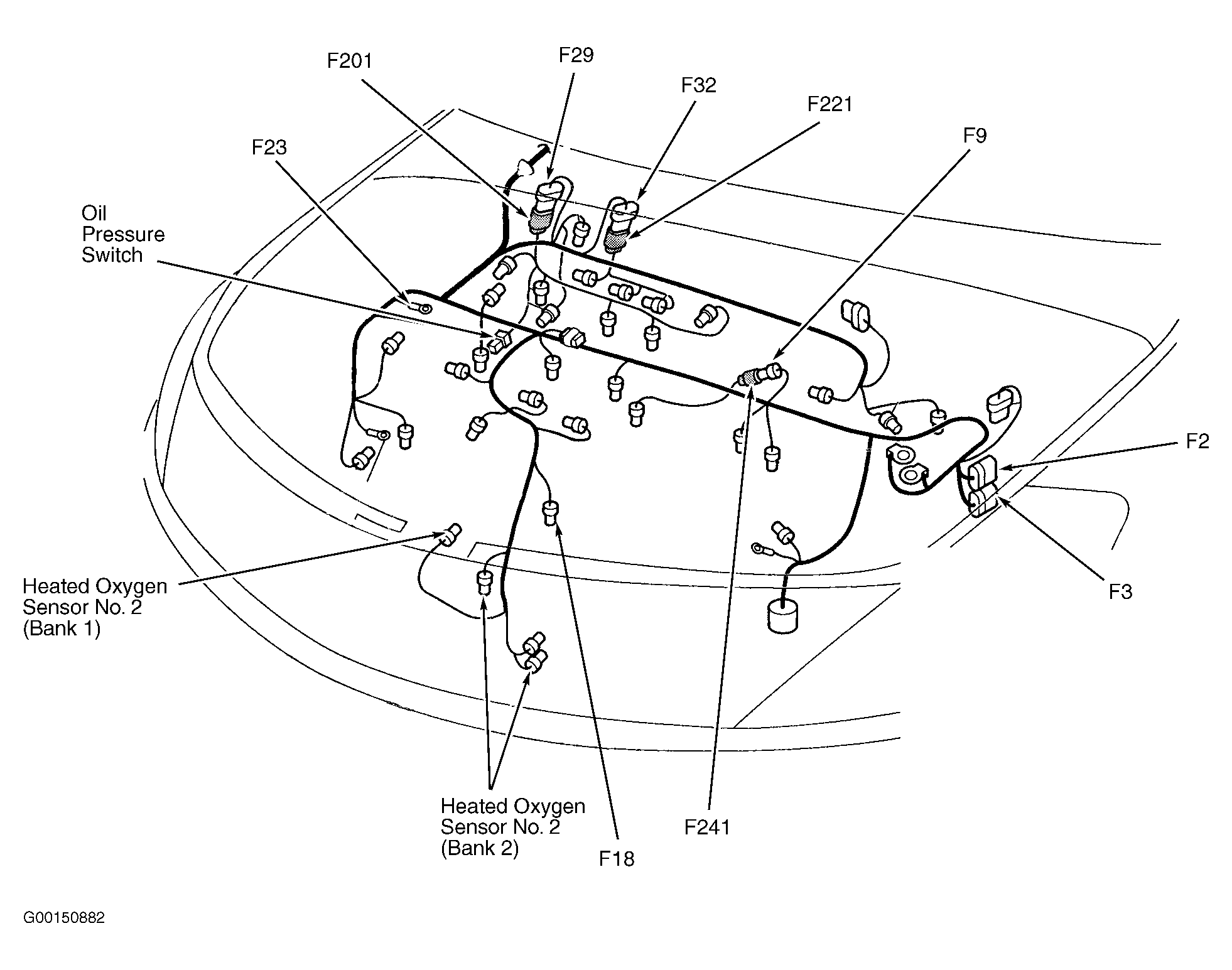

| F23 | On front of engine. See Figure. |

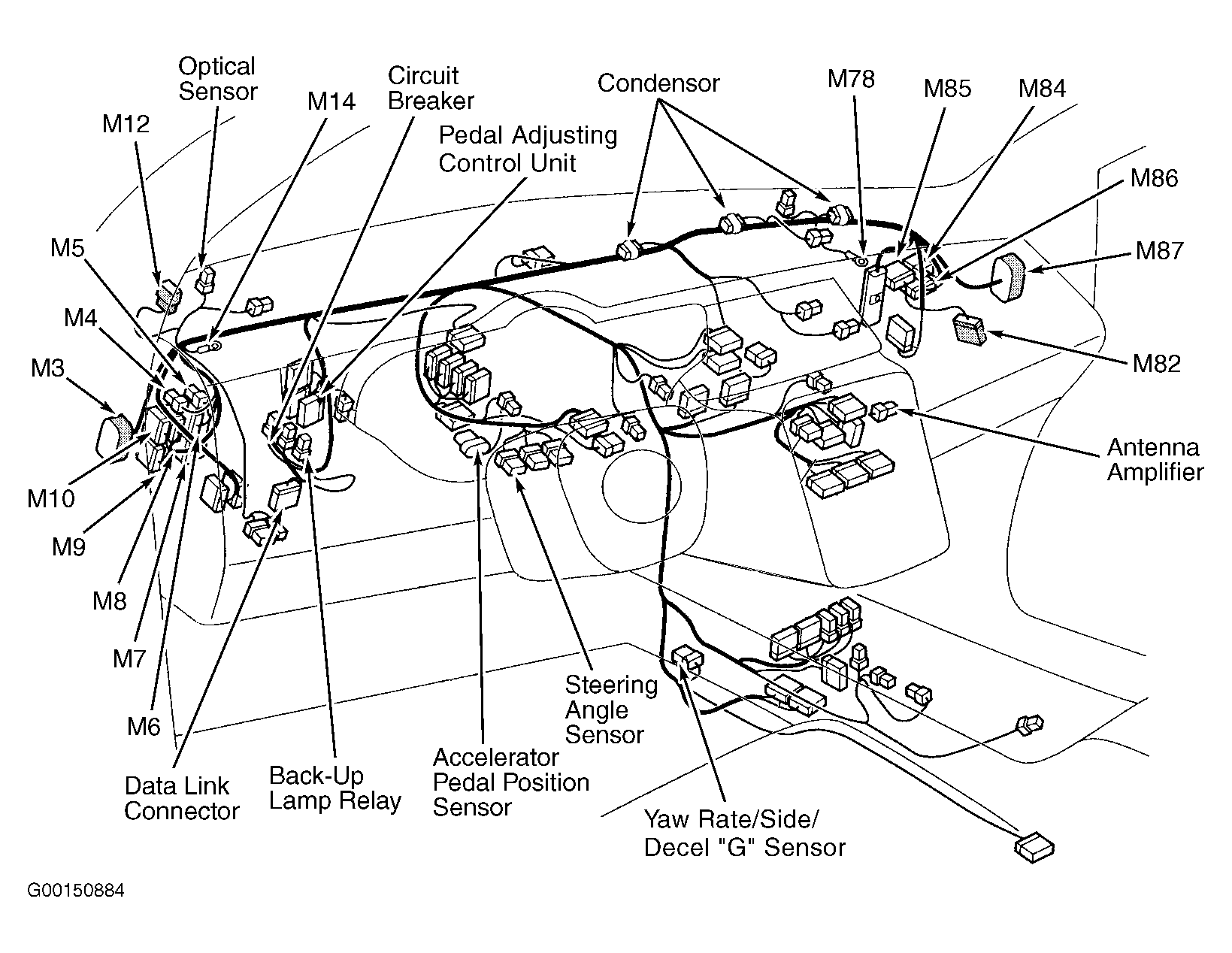

| M14 | Behind left end of dash. See Figure. |
| M78 | Behind right end of dash. See Figure. |
