Section 175 (Electrical Component Locator): Motors
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
MOTORS LOCATION
| Component | Component Location |
|---|---|
| ABS Actuator & Electric Unit | At right rear of engine compartment. See Figure. |

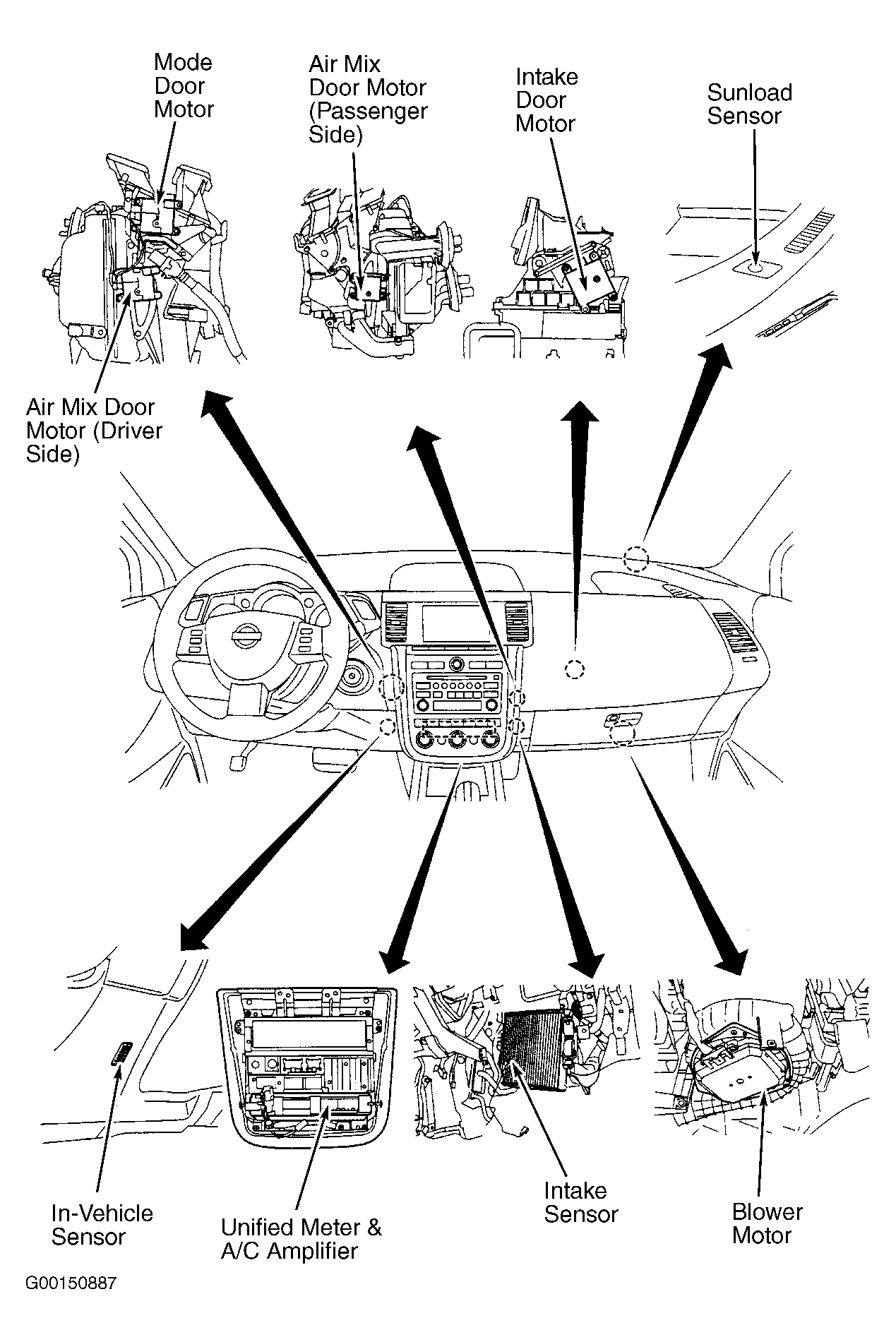

| Air Mix Door Motor (Driver Side) | Behind lower left center of dash, on HVAC assembly. See Figure. |
| Air Mix Door Motor (Passenger Side) | Behind lower right center of dash, on HVAC assembly. See Figure. |
| Blower Motor | Behind lower right side of dash. See Figure. |
| Cooling Fan Motor No. 1 | On right front of engine compartment. |
| Cooling Fan Motor No. 2 | On left front of engine compartment. |
| Electronic Throttle Control Actuator | Integral to throttle body, on intake manifold. See Figure. |
| Front & Rear Washer Motor | On washer fluid reservoir. See Figure. |
| Front Wiper Motor | On left side of firewall. See Figure. |
| Fuel Level Sensor Unit & Fuel Pump | In fuel tank. |
| Intake Door Motor | Behind right side of dash, on HVAC assembly. See Figure. |
| Mode Door Motor | Behind left center of dash, on HVAC assembly. See Figure. |

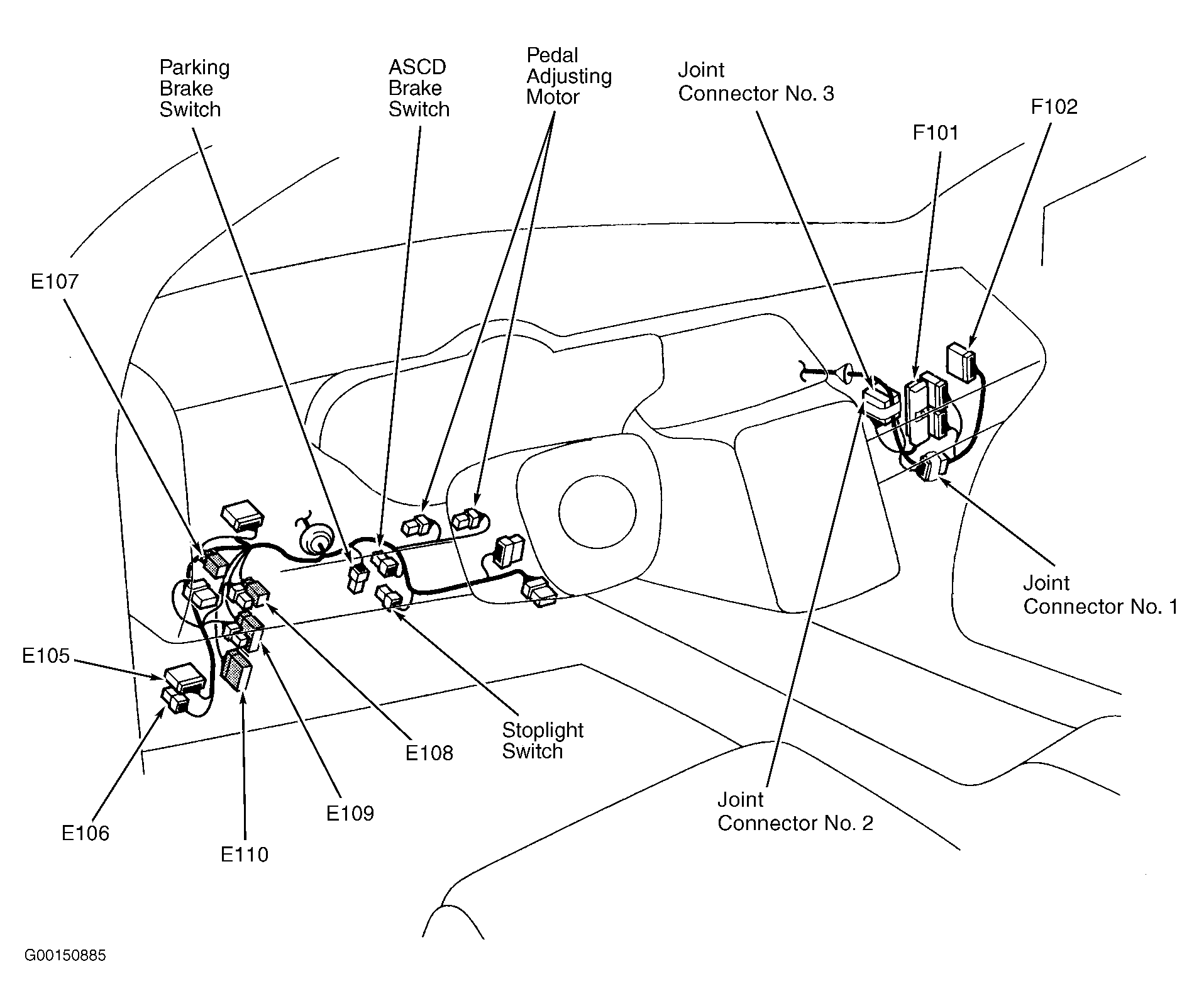

| Pedal Adjusting Motor | Under left side of dash. See Figure. |
| Step Motor | Integral to CVT unit. |
| Sun Roof Motor Assembly | On front center of roof. |
