Circuit Protection Devices
WARNING: This page is about a different car, the 2003 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Component Location |
| Circuit Breaker |
On fuse block. See Figure. |

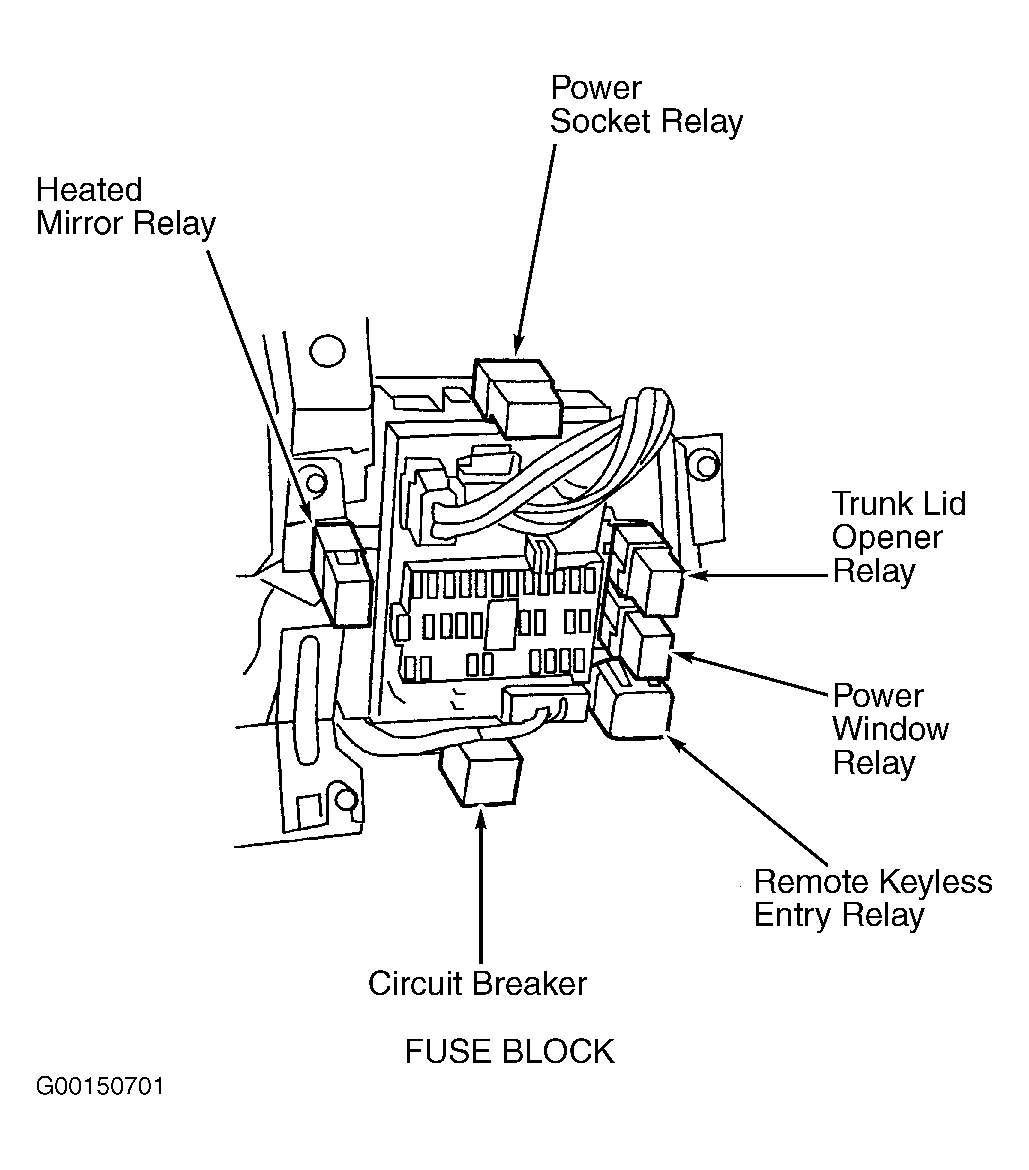

| Fuse Block |
Behind left side of dash. See Figure. |
| Fuse & Fusible Link Box |
At left front of engine compartment. See Figure. |
| Relay Box |
At right side of engine compartment. See Figure. |
