Accelerator Control System: Components
WARNING:
This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

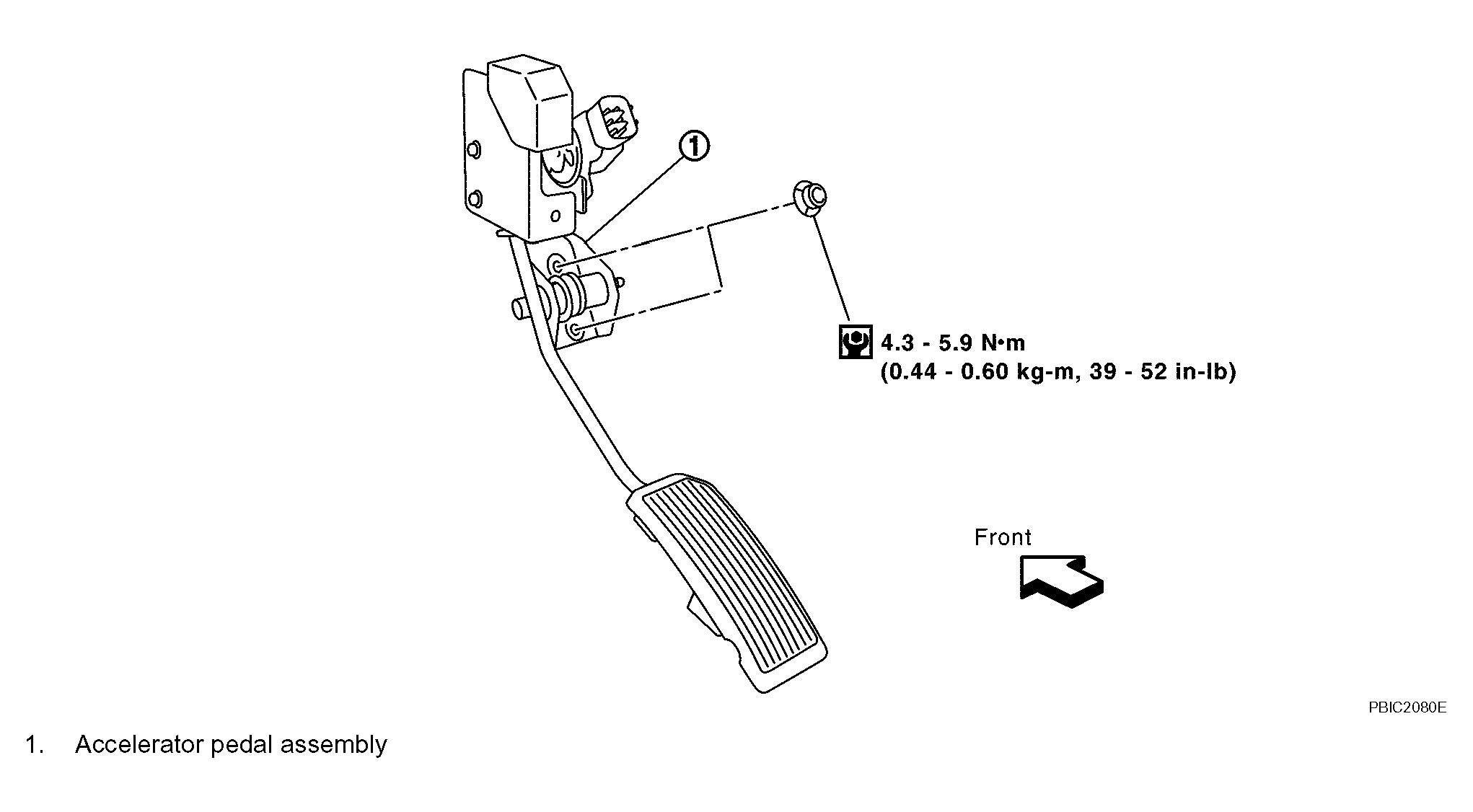

Fig 1: Accelerator Control System Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
