Component Locations

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS

Component (1) Location
Data Link Connector Left Side Of Dash, Mounted On Bottom
ECM Behind Right Side Of Dash
Transmission Control Module Behind Right Front Kick Panel
(1) For component locations, see Fig 1 .

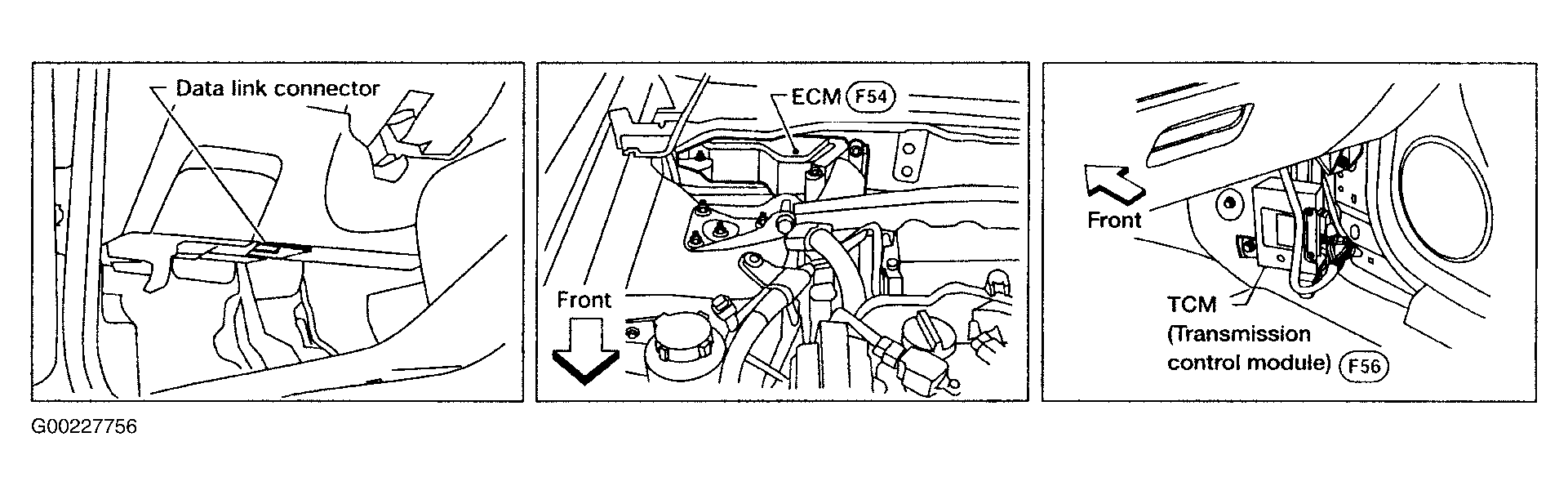

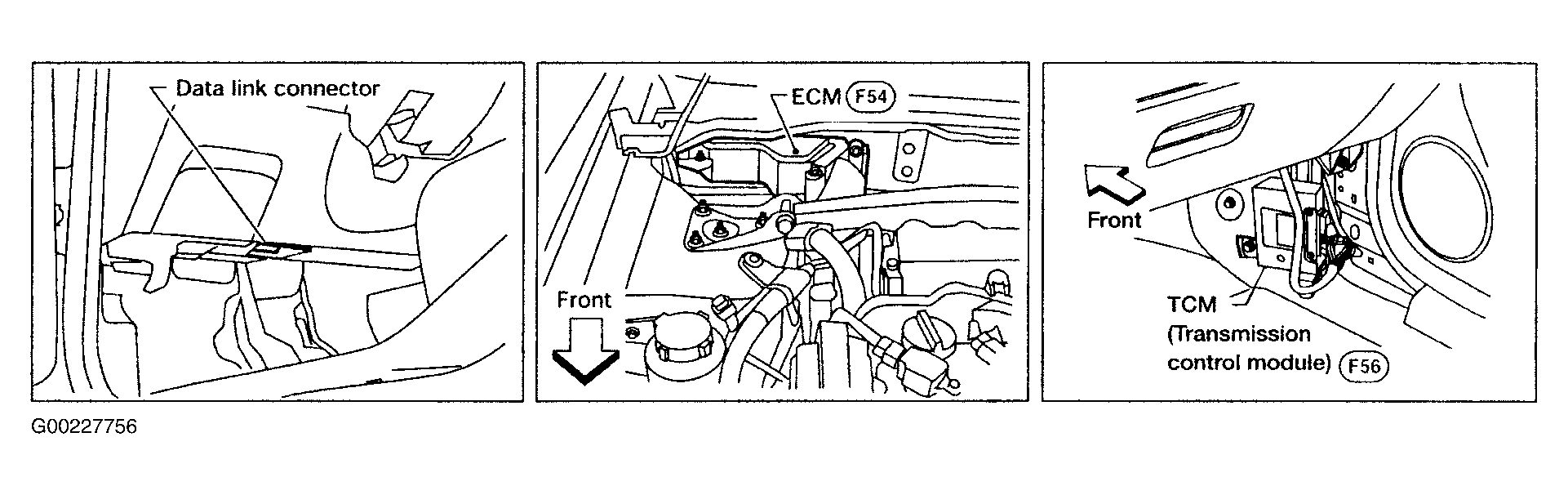

Fig 1: Locating & Identifying CAN Communication System Components
G00227756Courtesy of NISSAN MOTOR CO., U.S.A.
