Special Service Tools
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
SPECIAL SERVICE TOOLS SPECIFICATIONS
| Tool number (Kent-Moore No.) Tool name |
Description | |
|---|---|---|

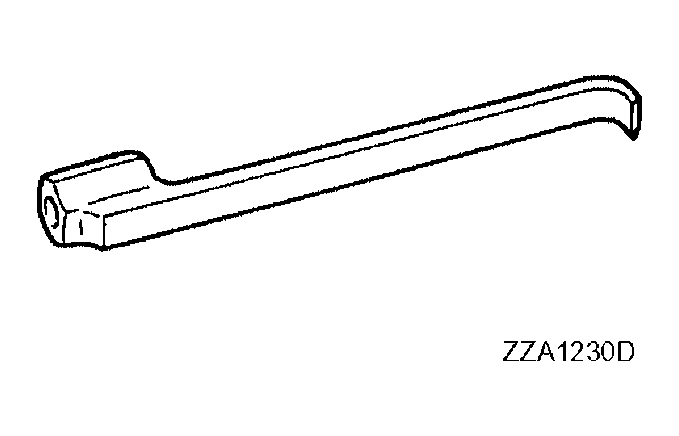

| HT72520000 (J-25730-A) Ball joint remover |
Removing outer tie-rod | |

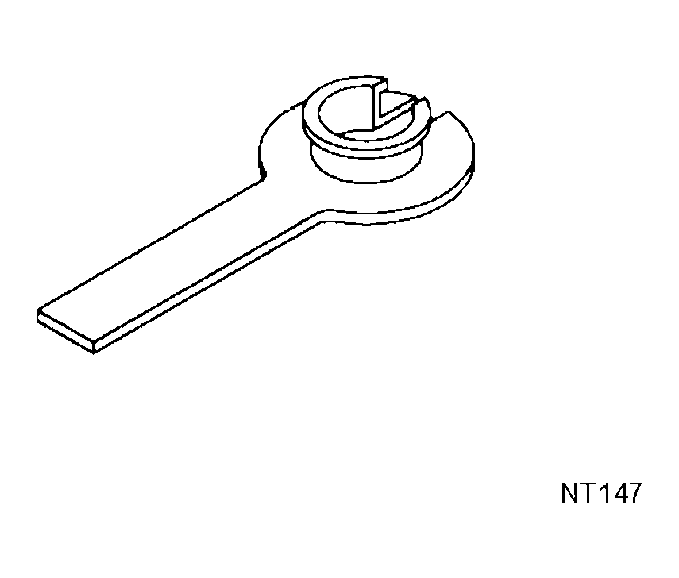

| KV38106700 (J-34296) KV38106800 (J-34297) Differential side oil seal protector |
Installing drive shaft LH: KV38106700 (J-34296) RH: KV38106800 (J-34297) |
|

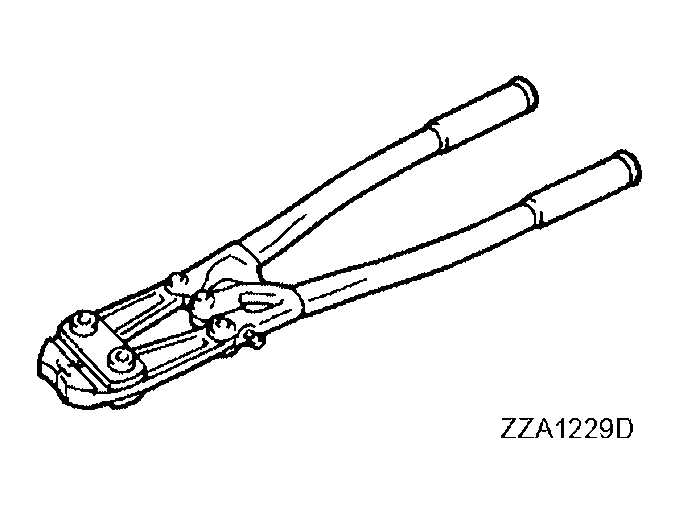

| KV40107300 ( - ) Boot Band crimping tool |
Installing boot bands | |
| KV40107500 ( - ) Drive shaft attachment |
Removing drive shaft |
