Diagnosis Flow

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK WARNING INDICATOR ILLUMINATION
1. Turn ignition switch ON.
2. Make sure warning indicators (such as malfunction indicator lamp and oil pressure warning indicator) illuminate.
Do warning indicators illuminate?

YES: GO TO 2.

NO: Check ignition power supply system of combination meter. Refer to , "POWER SUPPLY AND GROUND CIRCUIT INSPECTION ".
CHECK SELF-DIAGNOSIS OPERATION OF COMBINATION METER
Perform combination meter self-diagnosis. Refer to , "SELF-DIAGNOSIS FUNCTION ".

Does self-diagnosis function operate?

YES: GO TO 3.

NO: Check combination meter power supply and ground circuit. Refer to , "POWER SUPPLY AND GROUND CIRCUIT INSPECTION ".
CHECK ODOMETER, FUEL AND TEMPERATURE GAUGE OPERATION
Check segment display status of odometer, fuel and temperature gauge.

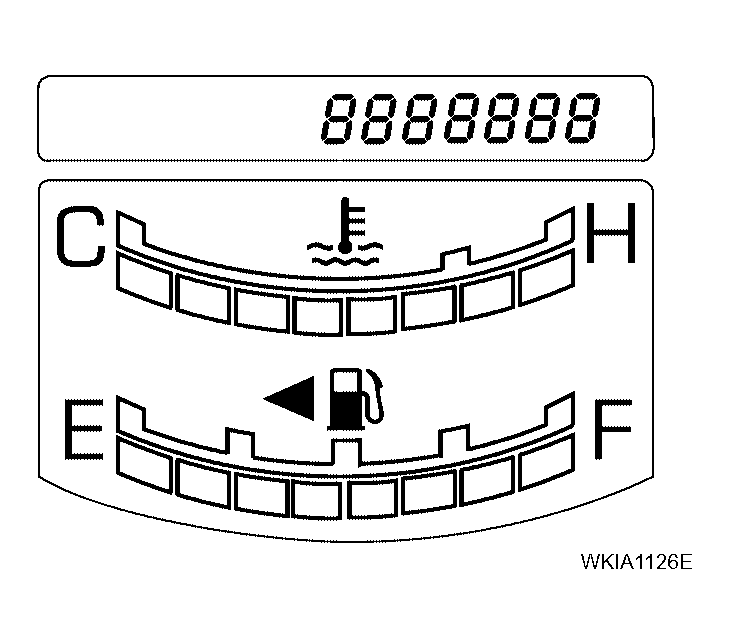

Fig 1: Identifying Odometer, Fuel And Temperature Gauge
Courtesy of NISSAN MOTOR CO., U.S.A.

Is the display normal?

YES: GO TO 4.

NO: Replace the combination meter. Refer to , "COMBINATION METER ".
CHECK COMBINATION METER CIRCUIT
Check operation of each meter/gauge in self-diagnosis mode.

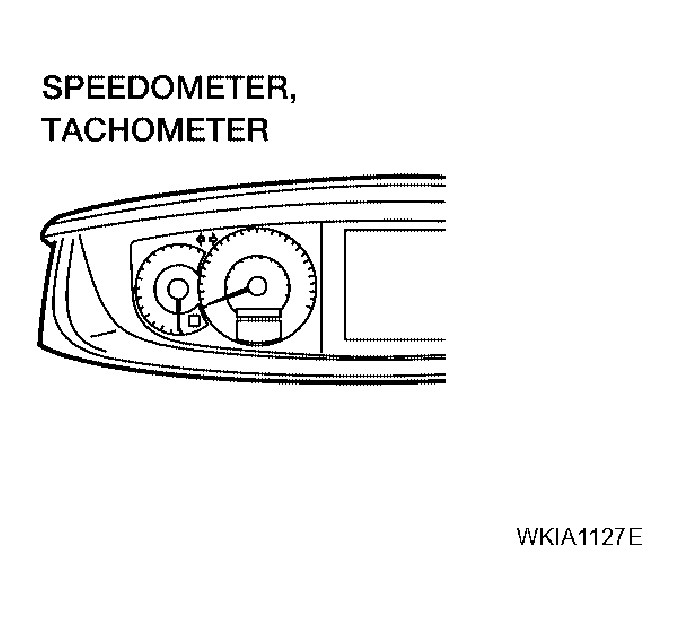

Fig 2: Identifying Speedometer, Tachometer
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Go to , "SYMPTOM CHART ".

NG: Replace the combination meter. Refer to , "COMBINATION METER ".
