Entering Diagnostics Mode

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON. Rear sonar system OFF switch indicator lamp comes on for three seconds and then goes out.
  2. Immediately push rear sonar system OFF switch ten times within five seconds.
  3. The sonar buzzer sounds once and the rear sonar system OFF indicator flashes once.

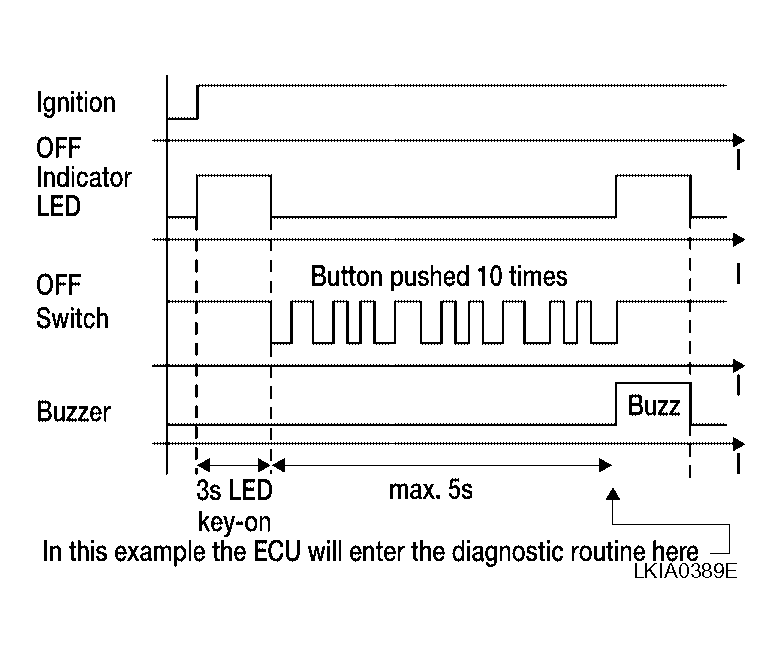

    Fig 1: Identifying Blinking Pattern - Entering Diagnostics Mode
    G04201055Courtesy of NISSAN MOTOR CO., U.S.A.
