Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, and turn ignition switch ON.

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 2: Consult-II Display - START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to , "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Consult-II Display Screen -- SELECT SYSTEM
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BUZZER" or "BCM".
Select "DATA MONITOR", "ACTIVE TEST" or "SELF-DIAG RESULTS".

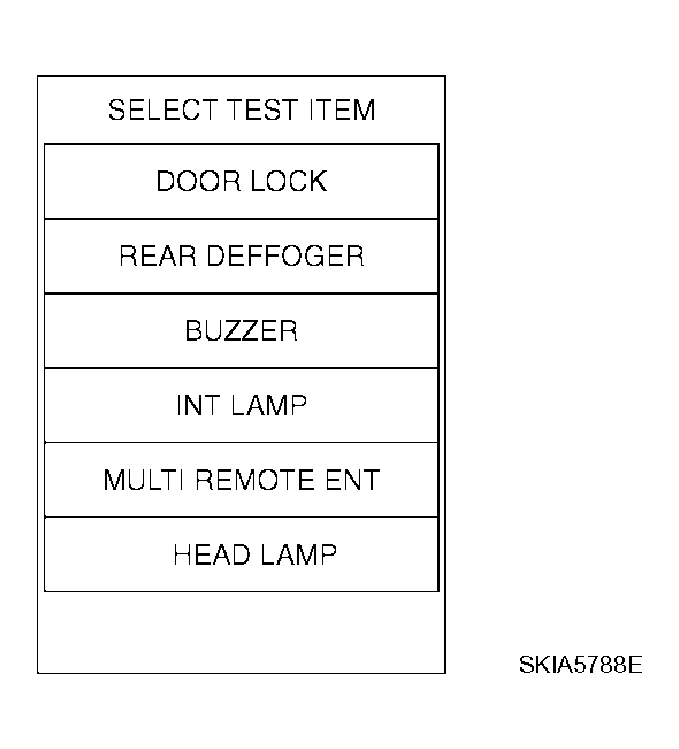

Fig 4: CONSULT-II Screen Display - SELECT TEST ITEM
Courtesy of NISSAN MOTOR CO., U.S.A.
