Removal and Installation

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear lower finisher assembly. Refer to "REAR LOWER FINISHER ASSEMBLY ".
Disconnect rear combination lamp connector.
Remove rear combination lamp mounting bolts.
Pull rear combination lamp to remove from the vehicle.
Rear combination lamp mounting bolts: 2.6 N.m (0.27 kg-m, 23 in-lb)

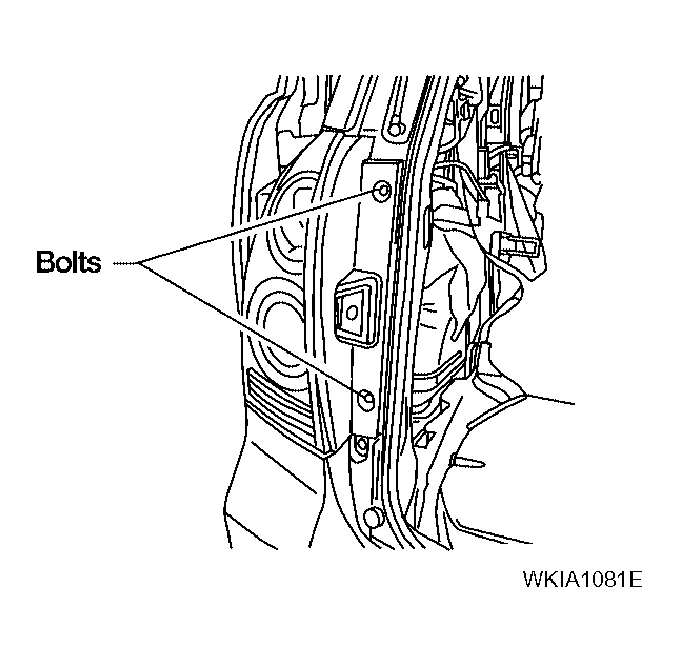

Fig 1: Identifying Rear Combination Lamp Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

Installation is in the reverse order of removal.

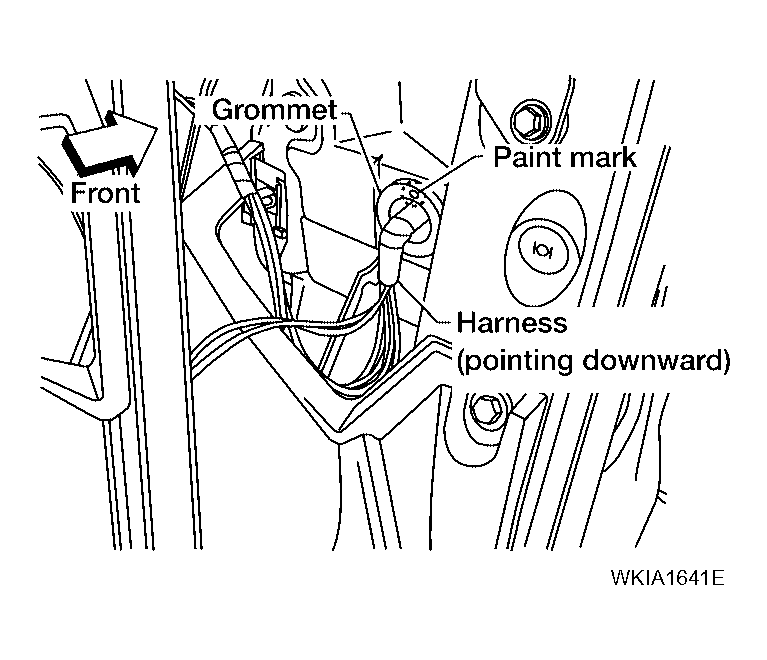

Install rear combination lamp harness and grommet so that paint mark on grommet is at top and harness points down.

Fig 2: Identifying Rear Combination Lamp
Courtesy of NISSAN MOTOR CO., U.S.A.
