Front Floor Footrest: Replacement

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT FLOOR FOOTREST
1. Holding the floor mat, disengage clips from the upper with a screwdriver to remove the front floor footrest.
  HINT:

  Tape the screwdriver tip before use.

  NOTE: Warm the inside of the vehicle well before removal.
2. Disengage the footrest clips, and then remove the 2 clips from the front floor footrest.

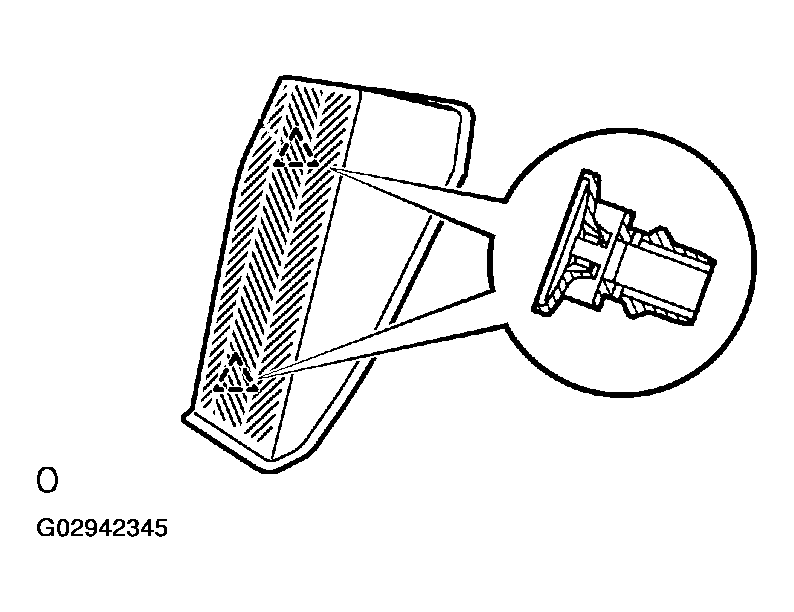

  Fig 1: Removing Clips From Front Floor Footrest
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FLOOR FOOTREST
1. Install the footrest clips by engaging the claws with the front floor footrest.
2. Before installation, check that the part to be engaged with the clips of front floor footrest is not damaged.
NOTE: If it is damaged, replace it with a new one.
