Rocker Panel Moulding LH: Replacement

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

In the RH side, work in the same procedure as in the LH side.

REMOVE ROCKER PANEL MOULDING LH
1. Using a hexagon socket wrench, remove the 2 screws.
2. Using a screwdriver, remove the 8 clips.
  HINT:

  Tape the screwdriver tip before use.
3. Remove the 3 screws.
4. Using a screwdriver, remove the rocker panel moulding.
HINT:

Tape the screwdriver tip before use.

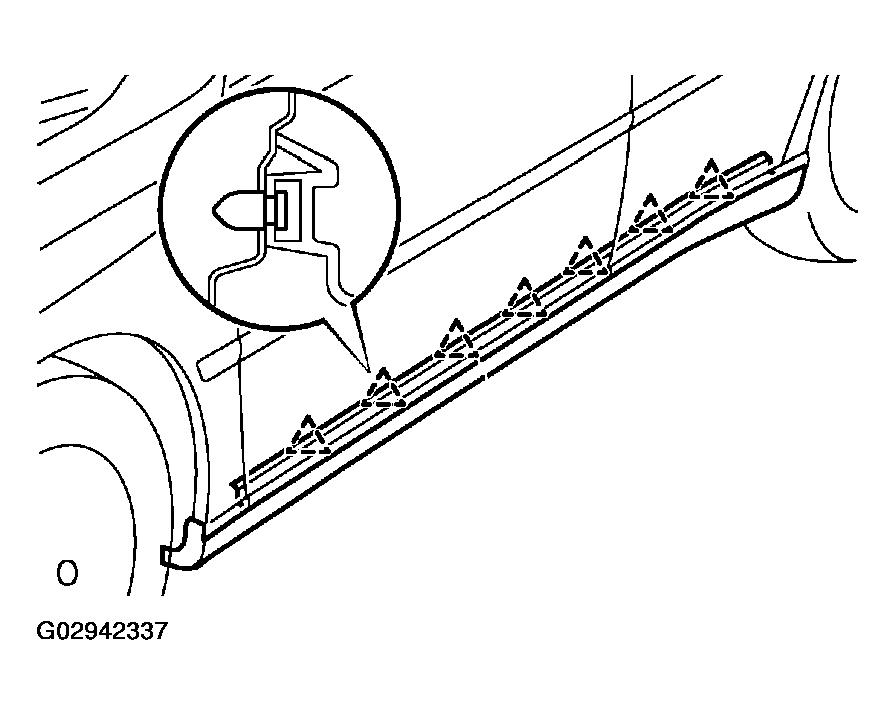

Fig 1: Removing Rocker Panel Moulding LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
