Roof Headlining ASSY: Components

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Roof Headlining Assy Components (1 Of 2)
G02942346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

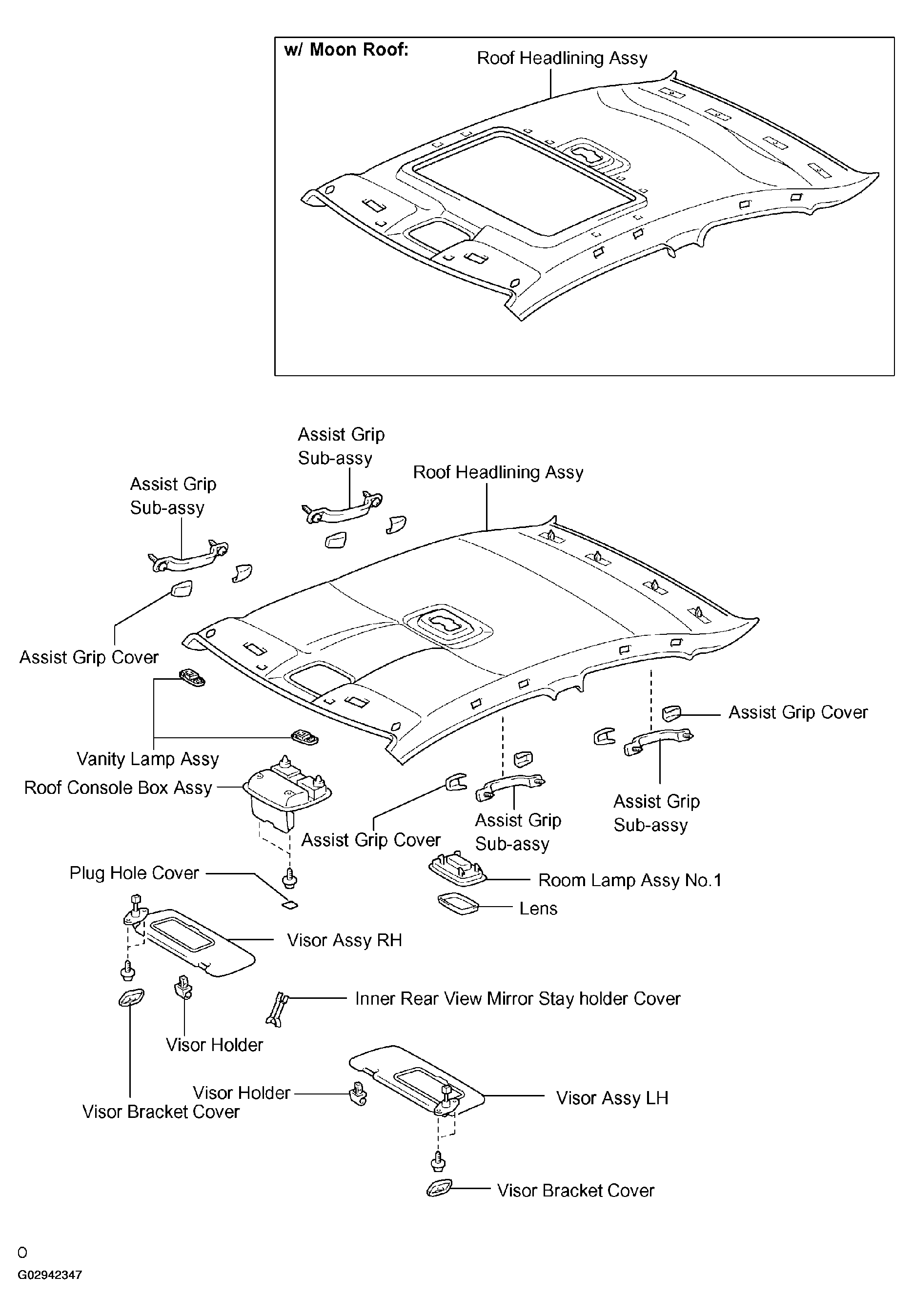

Fig 2: Identifying Roof Headlining Assy Components (2 Of 2)
G02942347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
