Checking For Coolant Leaks

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

To check for leakage, apply pressure to the cooling system using Tool.

Tool number : EG 17650301 (J-33984-A)

Testing pressure : 137 kPa (1.4 kg/cm 2  , 20 psi)

WARNING: Never remove the radiator/reservoir cap when the engine is hot. Serious burns could occur from high pressure coolant escaping from the radiator.
CAUTION: Higher pressure than specified may cause radiator damage.

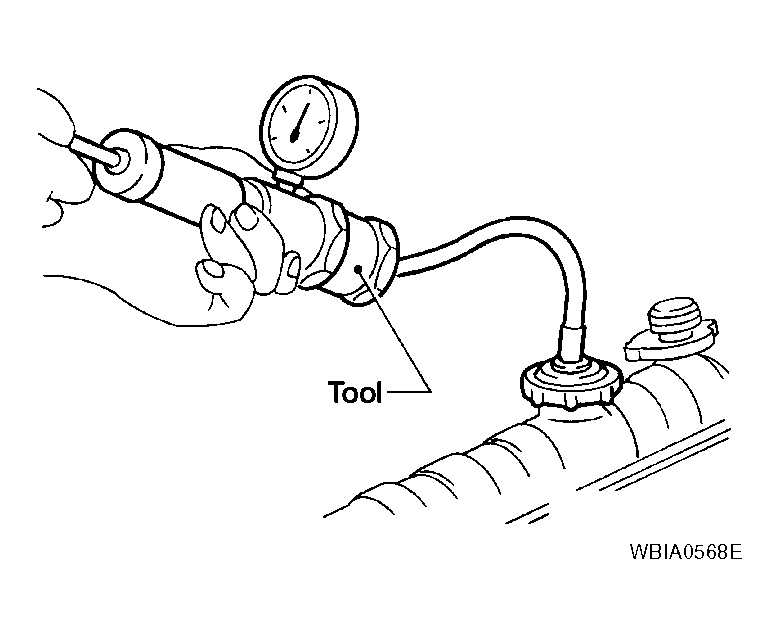

Fig 1: Applying Pressure To Cooling System Using Tool
G04202446Courtesy of NISSAN MOTOR CO., U.S.A.
