Side Shaft

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain gear oil, if necessary.
  2. Remove side oil seal using suitable tool.
    CAUTION: Do not damage gear carrier.

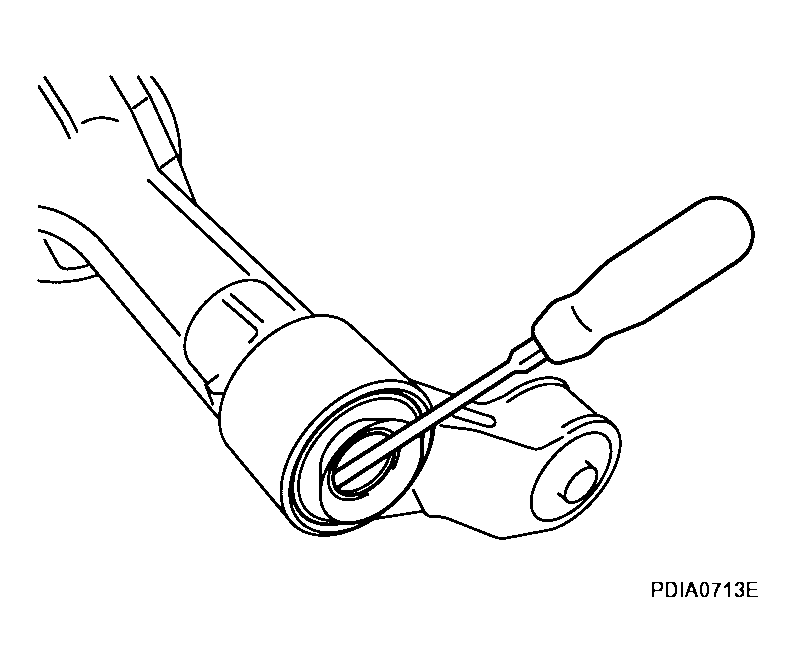

    Fig 1: Removing Side Oil Seal
    G04204487Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove snap ring (hole side) using suitable tool.

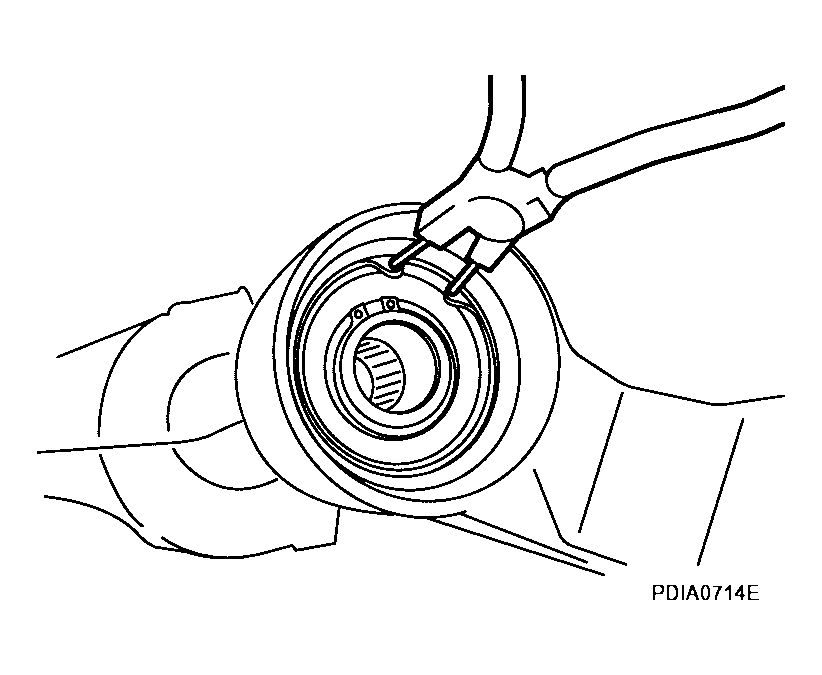

    Fig 2: Removing Snap Ring (Hole Side)
    G04204488Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove side shaft assembly out of gear carrier using suitable tool.
    NOTE: Tap on side shaft assembly from side gear side.
  5. Remove snap ring (shaft side).

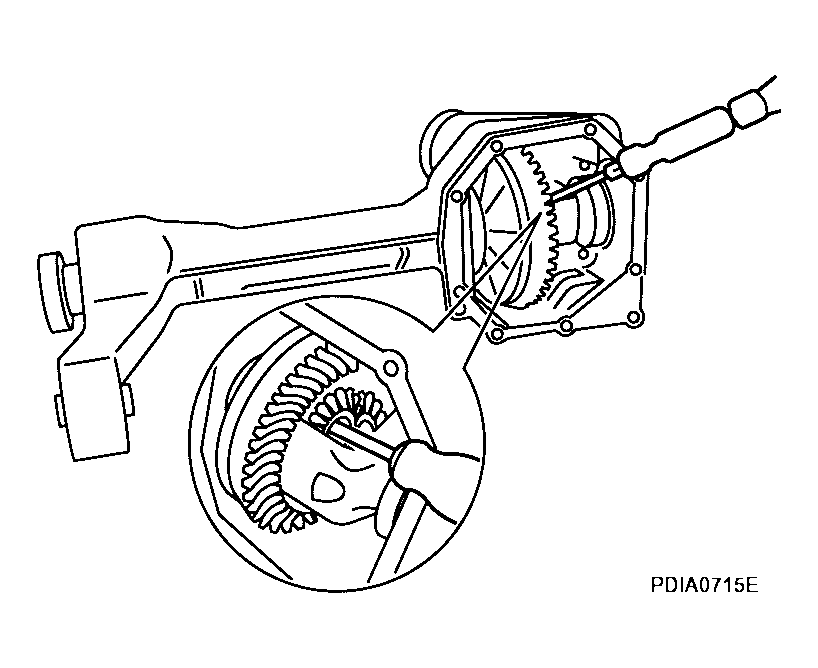

    Fig 3: Removing Side Shaft Assembly
    G04204489Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Press side shaft out of side shaft bearing.
    CAUTION: Do not drop side shaft.

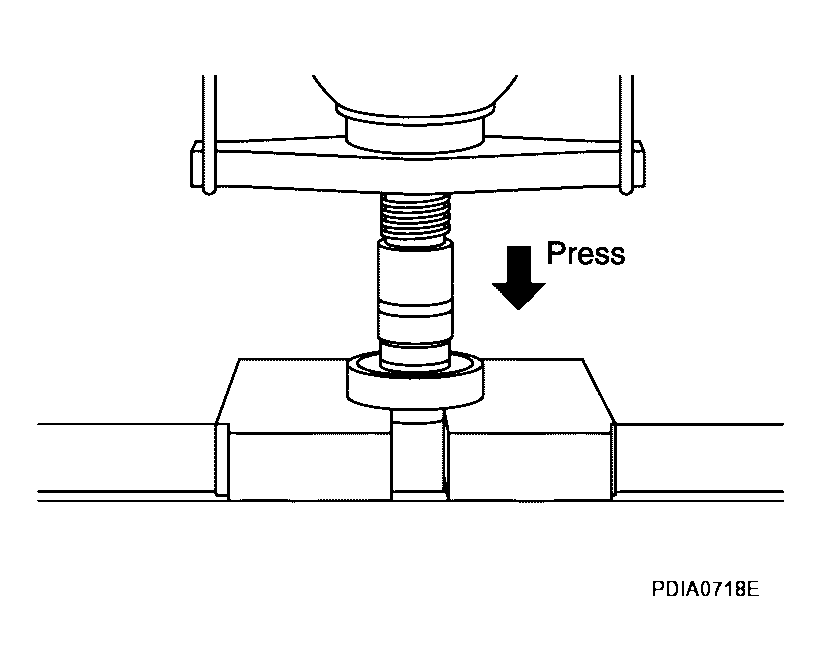

    Fig 4: Pressing Side Shaft Out Of Side Shaft Bearing
    G04204490Courtesy of NISSAN MOTOR CO., U.S.A.
