Steering Column

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
STEERING COLUMN SPECIFICATION

G04134803
Steering column length "L1" 165.1 mm (6.500 in)
Steering column length "L2" 258.0 mm (10.16 in)

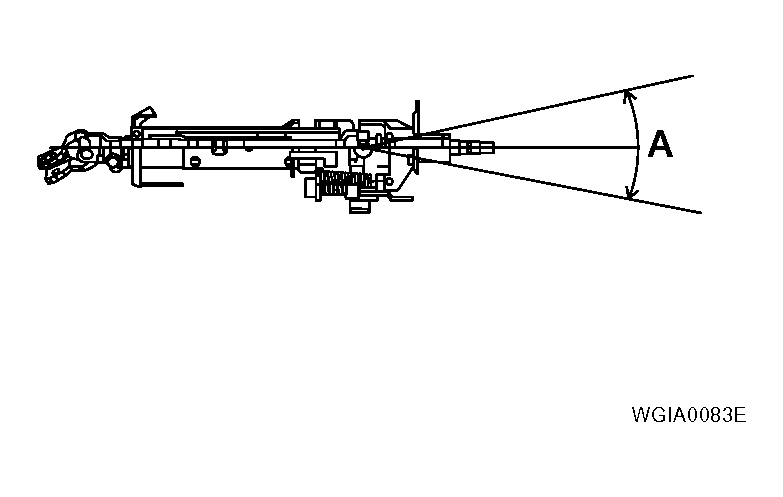

G04205289
Tilt range "A" 73.8 mm (2.906 in)
