Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

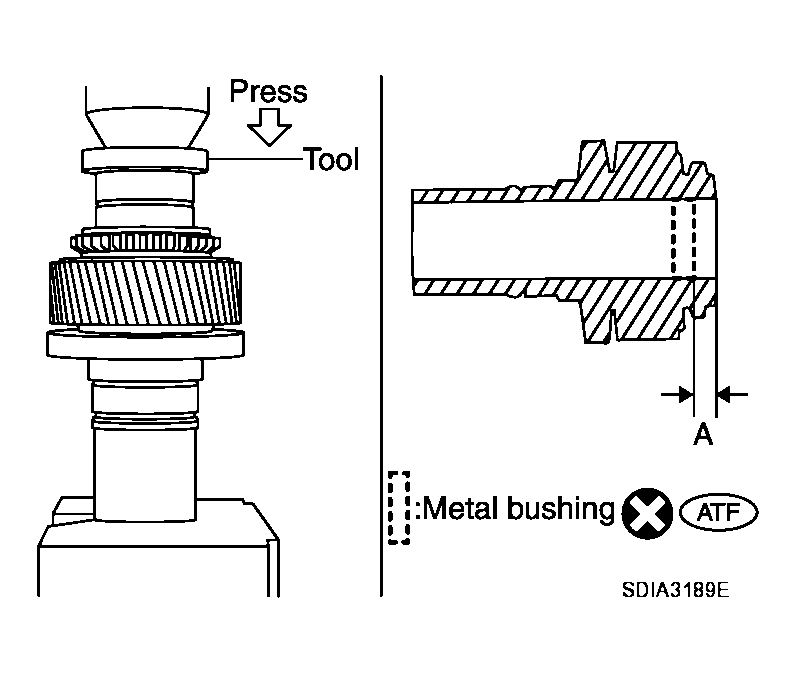

Apply ATF to the metal bushing, then install the metal bushing until it becomes "Dimension A", using Tool.
Tool number: ST35300000 ( - )

Dimension A: 7.7 - 8.3mm (0.303 - 0.327in)

CAUTION: Do not reuse metal bushing.

Fig 1: Identifying Metal Bushing
Courtesy of NISSAN MOTOR CO., U.S.A.

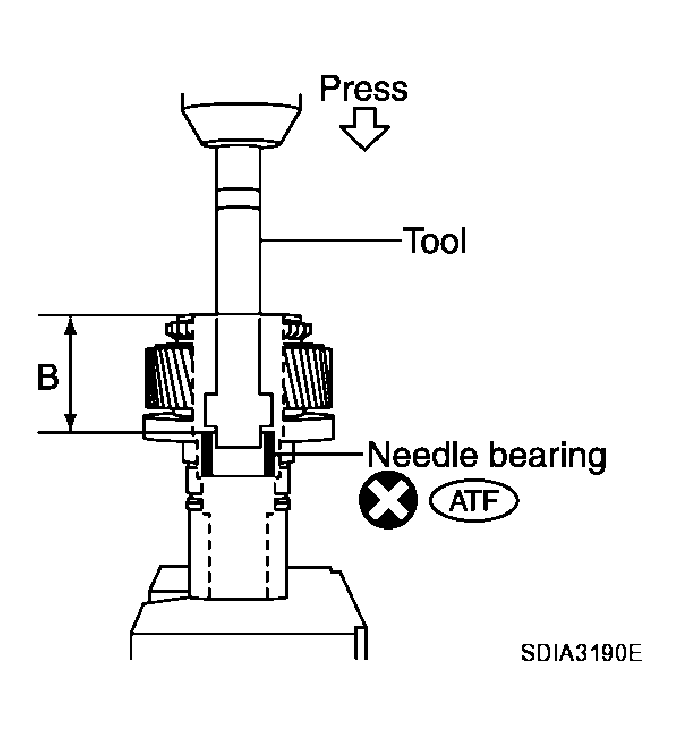

Apply ATF to the needle bearing, then install the needle bearing until it becomes "Dimension B", using Tool.
Tool number: ST33220000 ( - )

Dimension B: 62.5 - 63.1mm (2.461 - 2.484 in)

CAUTION: Do not reuse needle bearing.

Fig 2: Identifying Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.

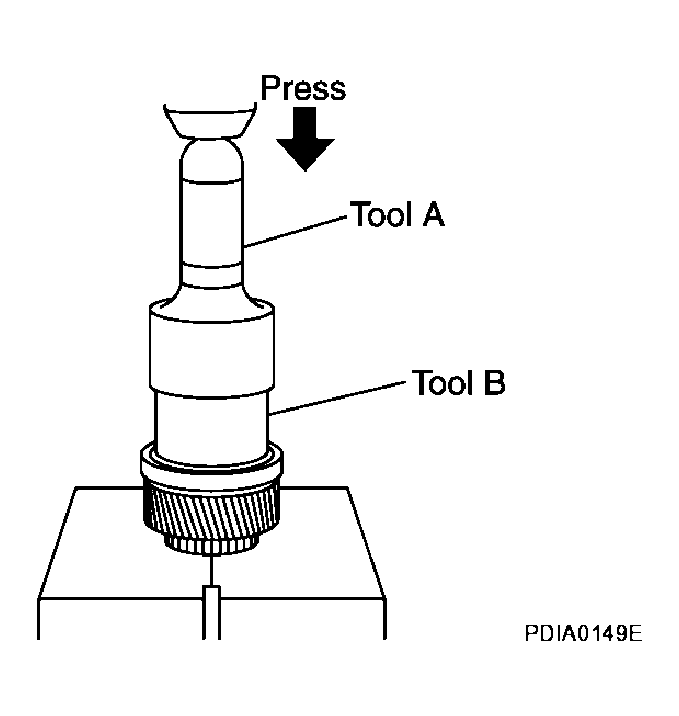

Install the carrier bearing to the sun gear, using Tools.
Tool number

A: ST30720000 (J-25405)

B: ST27863000( - )

Fig 3: Identifying Carrier Bearing To Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

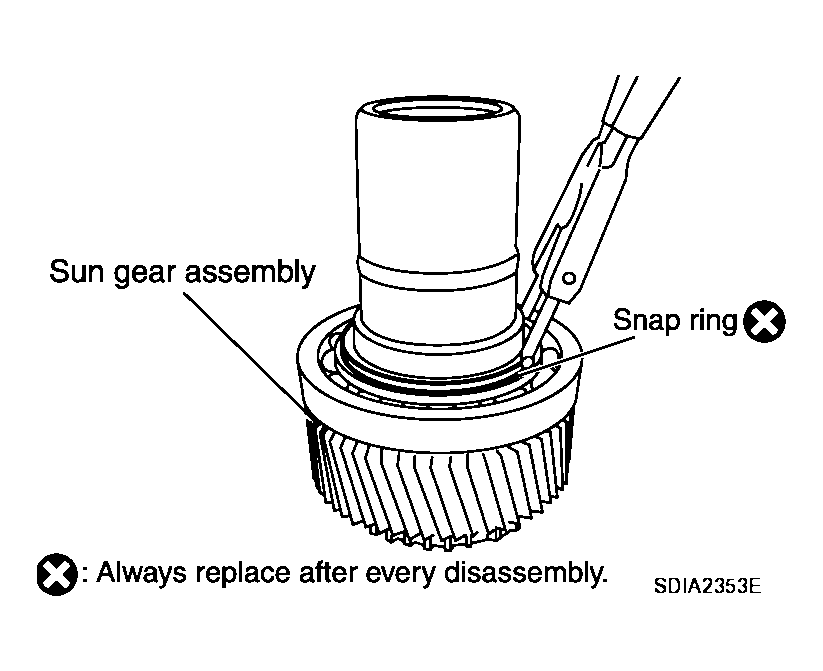

Install the new snap ring to the sun gear assembly, using suitable tool.
CAUTION: Do not reuse snap ring.

Fig 4: Identifying Snap Ring To Sun Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the sun gear assembly to the planetary carrier assembly.

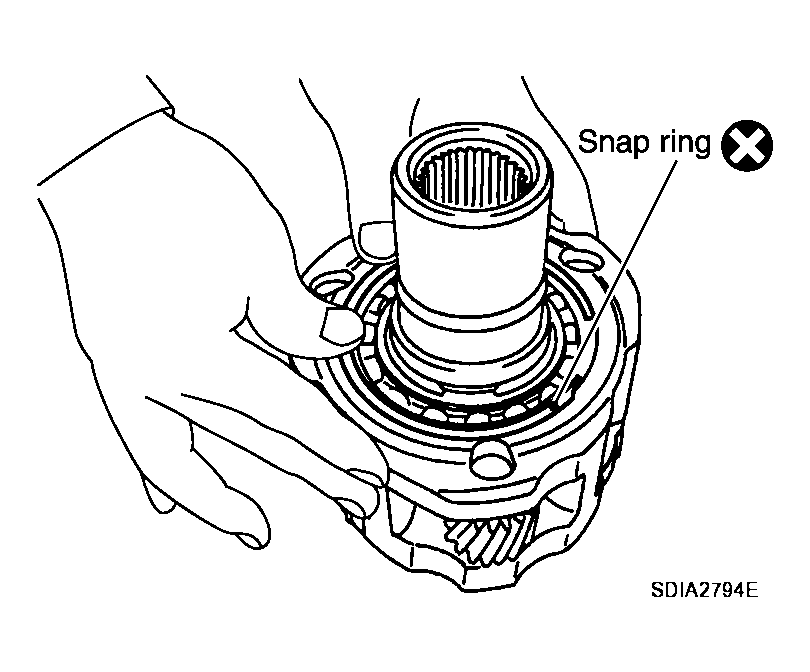

Install the new snap ring to the planetary carrier assembly.

CAUTION: Do not reuse snap ring.

Fig 5: Installing Planetary Carrier Assembly Snap Ring

Courtesy of NISSAN MOTOR CO., U.S.A.
