Special Service Tools

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

SPECIAL SERVICE TOOLS SPECIFICATIONS

Tool number (Kent-Moore No.) Tool name		Description

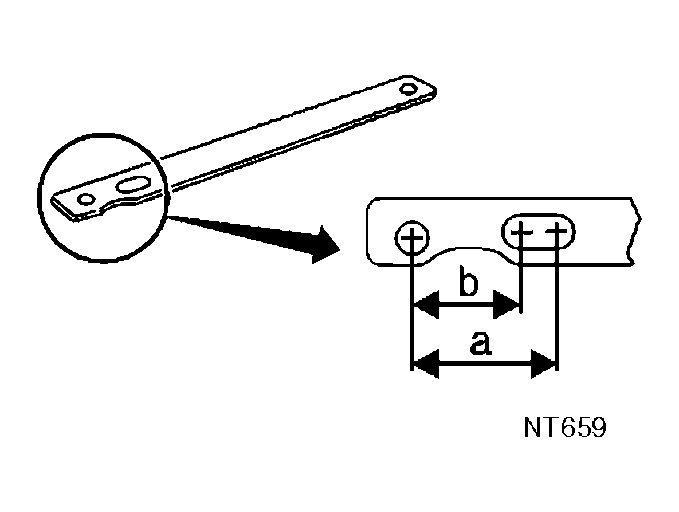

KV40104000 ( - ) Flange wrench		Removing self-lock nut Installing self-lock nut a: 85 mm (3.35 in) b: 65 mm (2.56 in)

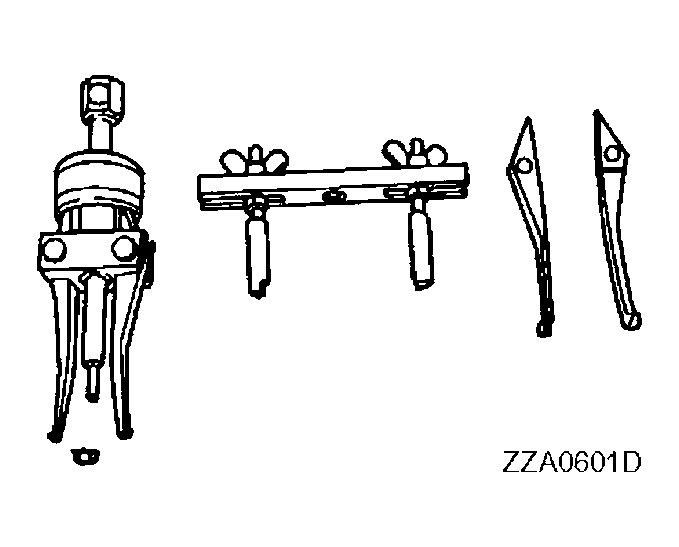

KV381054S0 (J-34286) Puller		Removing front oil seal Removing rear oil seal Removing metal bushing

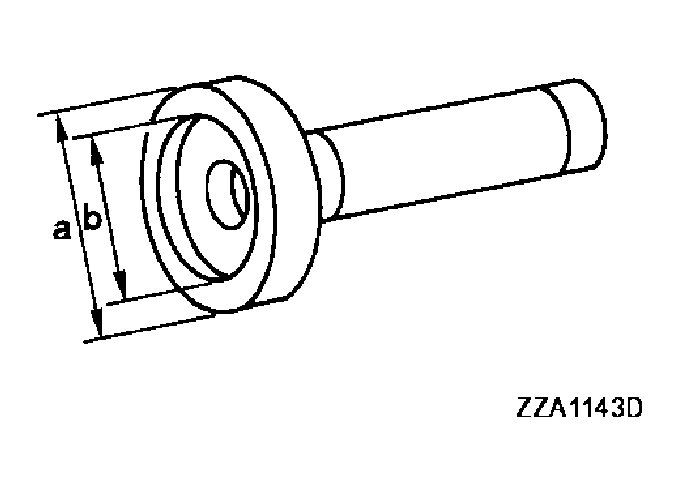

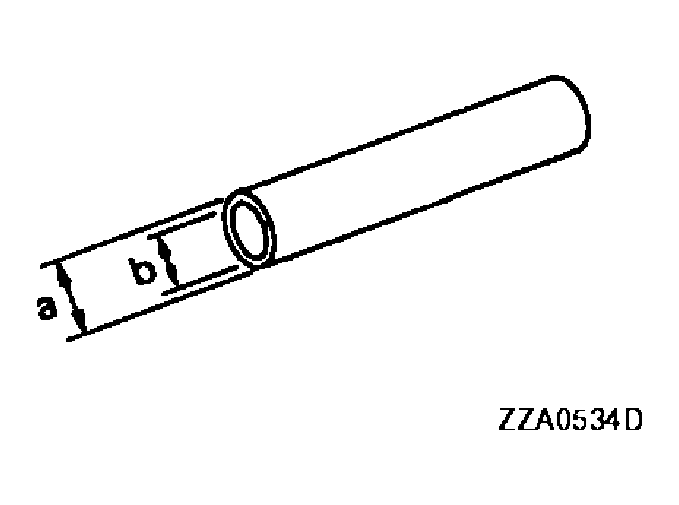

KV38100500 ( - ) Drift		Installing front oil seal Installing rear oil seal Installing rear bearing Installing front bearing a: 80 mm (3.15 in) dia .b: 60 mm (2.36 in) dia .

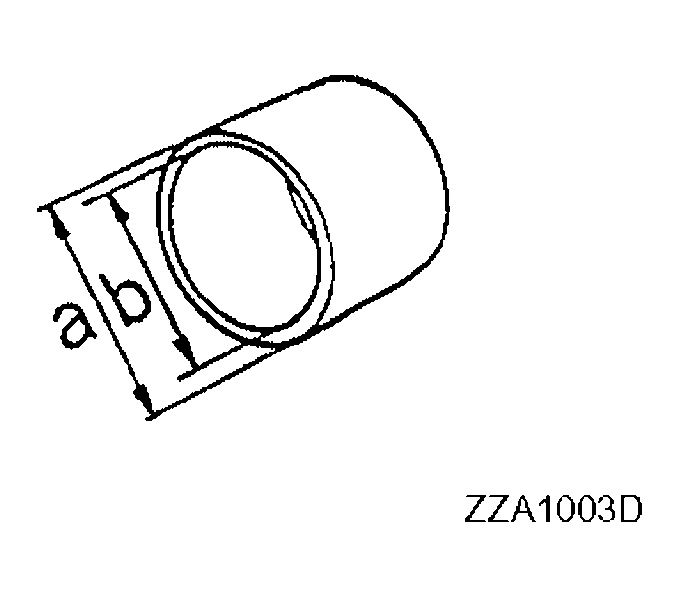

KV40105310 ( - ) Drift		Installing dust cover a: 89 mm (3.50 in) dia .b: 80.7 mm (3.17 in) dia .
KV38100200 ( - ) Drift		Removing sun gear assembly and planetary carrier assembly Removing input bearing Installing sun gear assembly and planetary carrier assembly a: 65 mm (2.56 in) dia .b: 49 mm (1.93 in) dia .
ST30720000 (J-25405) Drift		Installing input bearing Installing input oil seal Installing carrier bearing a: 77 mm (3.03 in) dia .b: 55 mm (2.17 in) dia .
KV32102700 ( - ) Drift		Installing mainshaft rear bearing a: 48 mm (1.89 in) dia .b: 41 mm (1.61 in) dia .
KV40104830 ( - ) Drift		Installing input oil seal a: 70 mm (2.76 in) dia .b: 63.5 mm (2.50 in) dia .
ST35300000 ( - ) Drift		Removing carrier bearing Installing metal bushing Removing front bearing a: 59 mm (2.32 in) dia .b: 45 mm (1.77 in) dia .

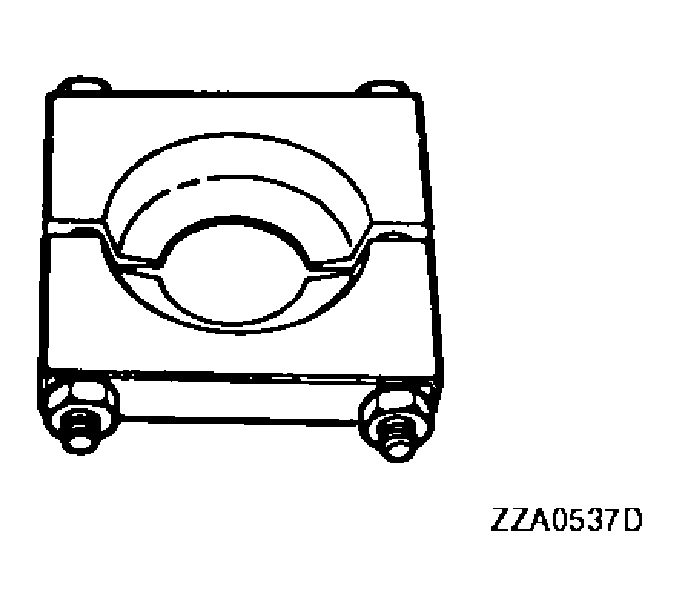

ST30021000 (J-22912-01) Puller		Removing carrier bearing Removing front bearing Removing rear bearing

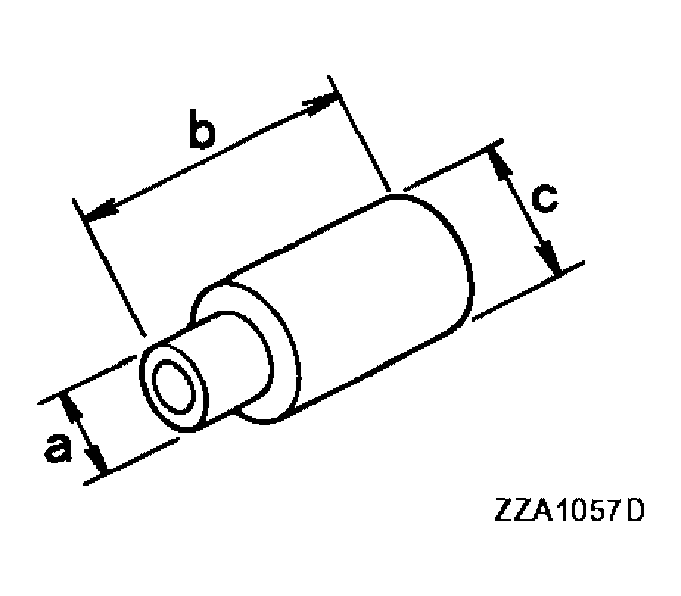

ST33710000 ( - ) Drift		Removing needle bearing Removing metal bushing Removing rear bearing a: 24 mm (0.94 in) b: 89 mm (3.5 in) dia .c: 30 mm (1.18 in) dia .

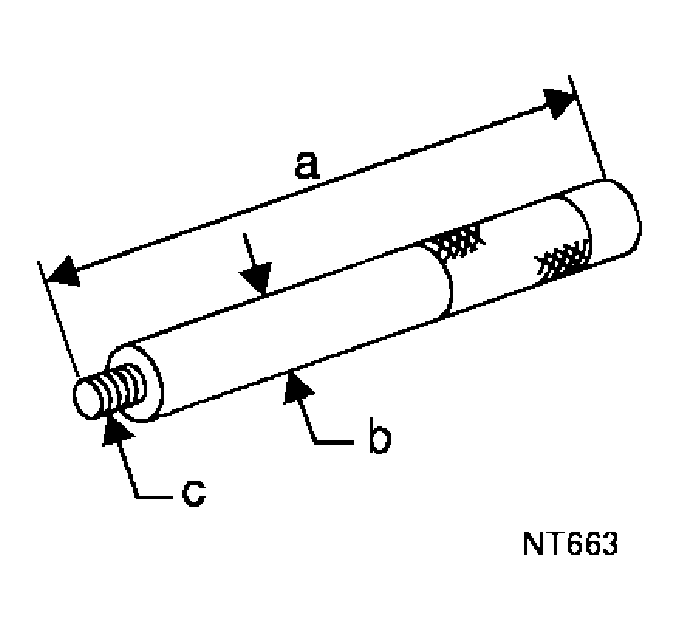

ST35325000 ( - ) Drift bar		Removing metal bushing a: 215 mm (8.46 in) b: 25 mm (0.98 in) dia .c: M 12 x 1.5P
ST33220000 ( - ) Drift		Installing needle bearing a: 37 mm (1.46 in) dia .b: 31 mm (1.22 in) dia .c: 22 mm (0.87 in) dia .
ST27863000 ( - ) Drift		Installing carrier bearing a: 75 mm (2.95 in) dia .b: 62 mm (2.44 in) dia .

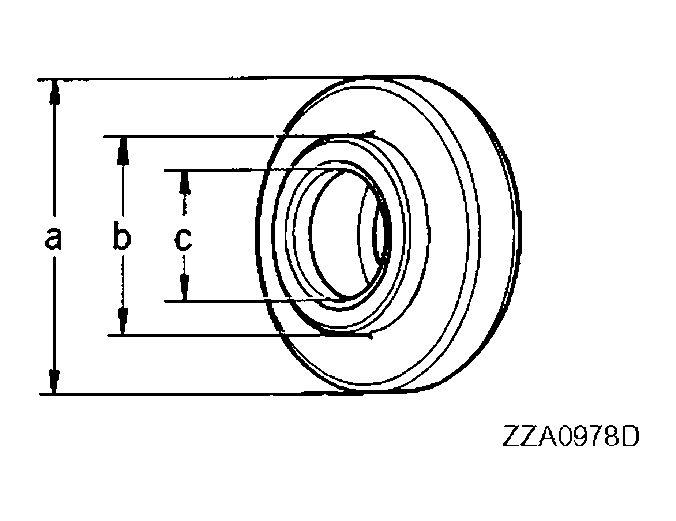

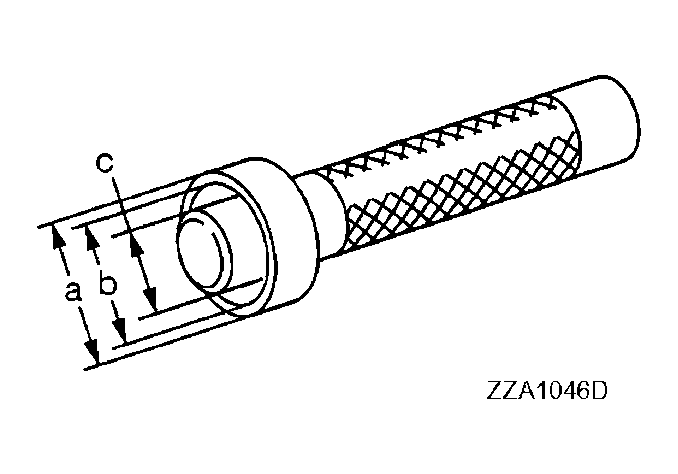

ST30901000 (J-26010-01) Drift		Installing rear bearing Installing front bearing a: 79 mm (3.11 in) dia .b: 45 mm (1.77 in) dia .c: 35.2 mm (1.38 in) dia .
