Disassembly (A/T Models)

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Remove the snap ring.
Remove the retaining pin.
Remove the drum cam from the control shift rod.

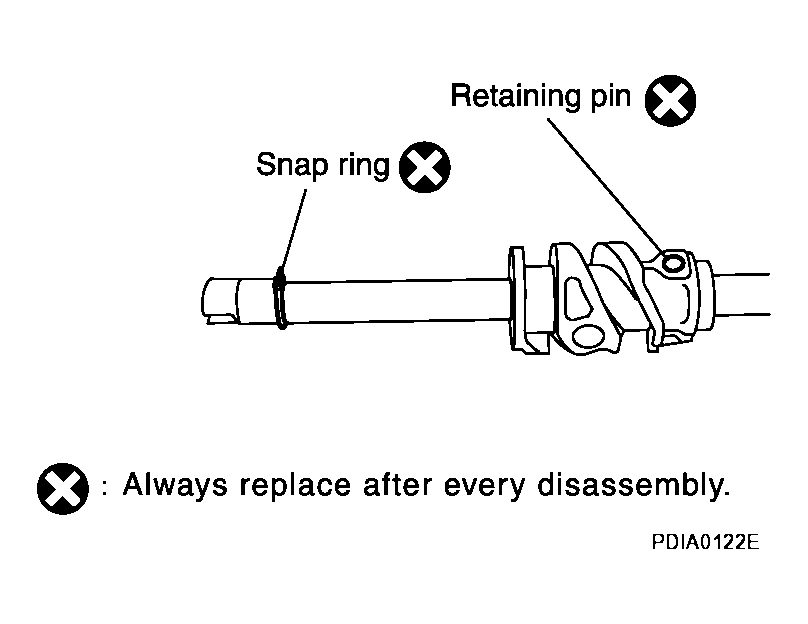

Fig 1: Identifying Snap Ring And Retaining Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the retaining pin from the L-H shift rod.
Remove the 2-4 shift bracket.

Fig 2: Identifying Retaining Pin From L-H Shift Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the retaining ring from the 2-4 shift fork, using suitable tool.
Remove the fork guide collar and 2-4 shift fork spring from the 2-4 shift fork.

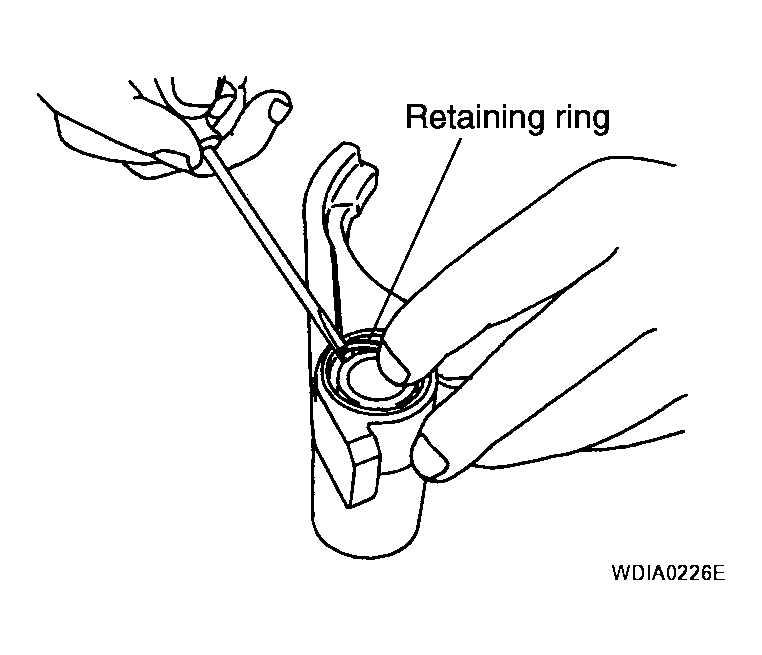

Fig 3: Removing Retaining Ring From 2-4 Shift Fork

Courtesy of NISSAN MOTOR CO., U.S.A.
